i-on16 Before You Begin
Page 5

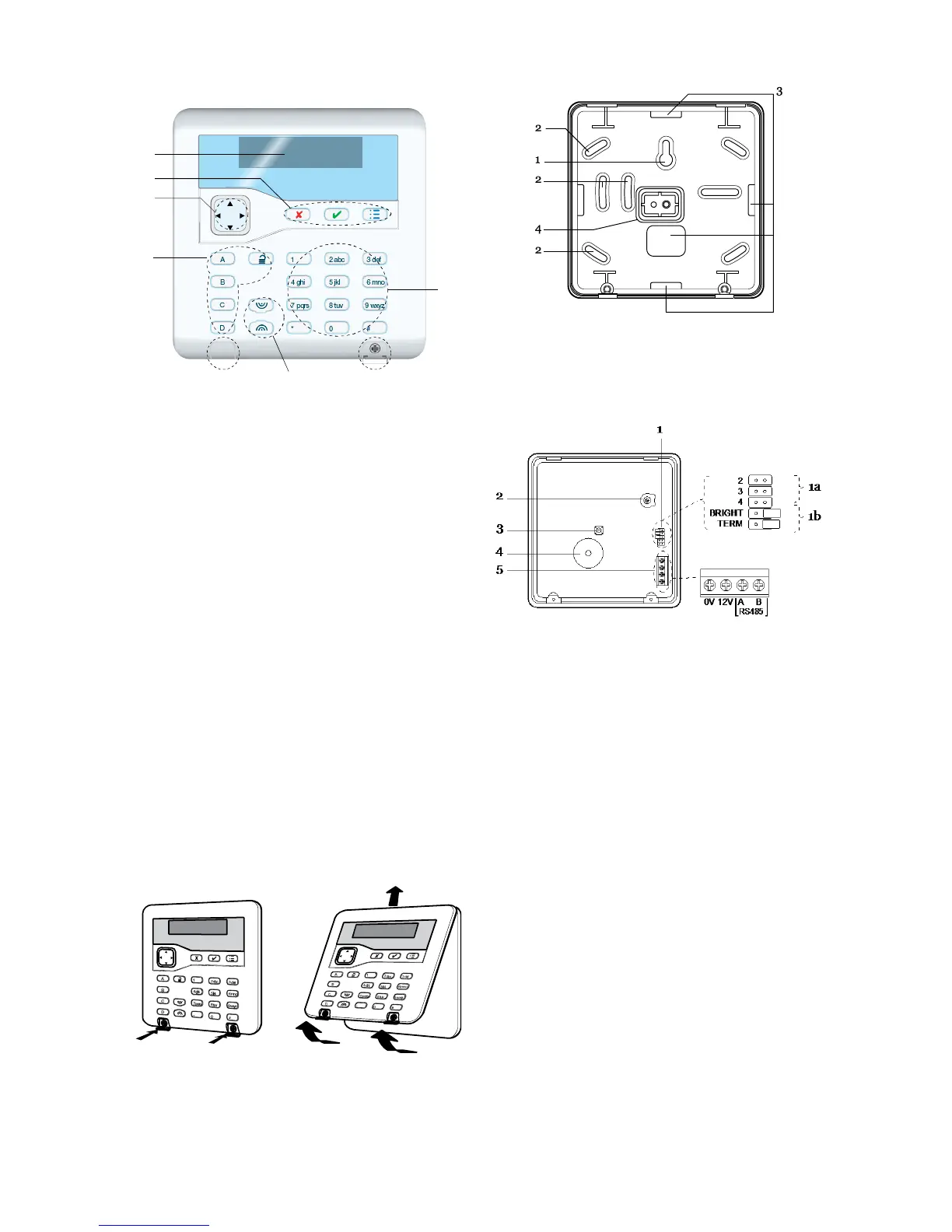

KEY-K01/KP01/KPZ01 Controls and Displays
1. LCD display
2. Programming keys.
3. Navigation keys. This key has built-in alert
LEDs.
4. Setting and unsetting keys. The ABCD keys
have built-in status LEDs that can show the
setting status of a part setting system. These
LEDs can be disabled, see page 10.
5. Plastic caps covering screws (shown closed
and open).
6. Hold Up Alarm (HUA) keys.
7. Number/text keys.
Figure
8.
KEY-K01/KP01/KPZ01 Controls and
Displays
Opening the KEY-K01/KP01/KPZ01
To open the unit, unclip the caps covering the
screws on the front. (You may need to gently push
the bottom edge of the caps in with the end of a
small screwdriver to start them.) Remove the two
screws hidden underneath (see Figure 8). Gently
swing the lower side of the front out from the back
box by about 10mm and then slide the front
upwards to disengage the top catches. (Be careful
not to pull the lower side of the front more than
about 25mm away from the back while the top
catches are engaged, or you may break the
catches.)
Figure
9.
Opening the Keypad
1. Central keyhole.
2. Fixing holes.
3. Cable entry.
4. Tamper block
Figure
10.
Keypad Rear Housing
1. Jumpers for addressing and LED function:
1a Addressing (not used for i-onEX)
1b LED functions and RS485 bus termination.
2. Sounder volume control.
3. Tamper switch.
4. Sounder.
5. Connector for control unit.
Figure
11.
KEY-K01 Keypad PCB
2
3
65 5
4
7
1
1
2
3
