XS series operating manual

XS user manual v0.55 - 147 -

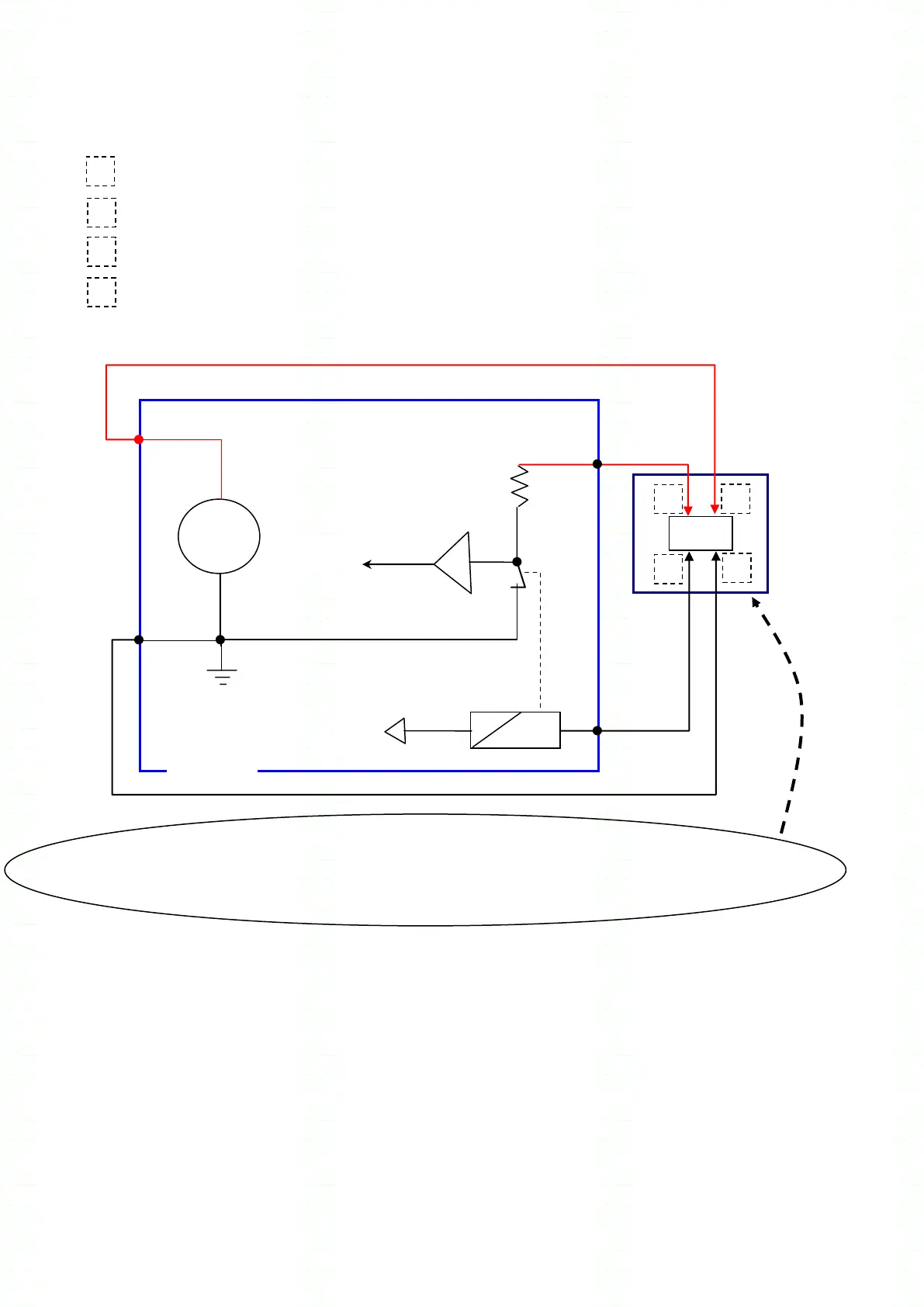

Schematic diagram of the option

: Voltage re-reading HV lead.

: High voltage generator HV lead.

: Voltage re-reading return lead.

: Return lead (GND) from the high voltage generator.

Customer interface: It is the connection parts of the test piece (DUT) that need to make the

connections between points 1 and 2 and points 3 and 4.

+24V

GND

Voltage re-read

Shunt

voltage

DUT

RE1

This Manual Is Written for the Following XS Series Models2
Warranty3
Restrictions Due to the Accessories or the Options4
- Ground Continuity Measurement4
- Hipot Test4
- Insulation Measurement4
- Table of Contents5
Summary5
Specifications11
- Power Supply11
- Operating Condition11
- Weight and Dimensions11
- Over Voltage Category11
- Pollution Rate11
- Safety Class11
Dielectric Strength Test 50Va12
(Hipot 50VA Test)12
- Output Voltage12
- Voltage Reading12
- Short Circuit Current12
- Breakdown Detection12
- Permanent Current Measurement14
- Fault Indication14
- Timer14
- Μa Current Resolution (OPTION 116-00)15
(Hipot 500VA Test)16
- Output Voltage16
- Voltage Reading16
- Short Circuit Current16
- Breakdown Detection16
- Permanent Current Measurement18
- Fault Indication18
- Timer18
Dielectric Strength Test 10Va19
- Output Voltage19
- Voltage Reading19
- Short Circuit Current19
- Breakdown Detection19
- Permanent Current Measurement21
- Fault Indication21
- Timer21
- Detection of Capacitive Samples22
Megohmmeter Function (Insulation Resistance Measurement)23
- Megohmmeter Function23
- 1000V Megohmmeter Function (Option XS26 or MXS1000)25
- 1500V Megohmmeter Function (SXS16)26
Ground Continuity Function29
- Measurement Current29
- Open Circuit Voltage29
- Measurement Accuracy29
- Measurement Thresholds30
- Timer30
- Measurement Cycles30
Introduction - Operating Instruction31
- Meaning of the Different Symbols on the Instrument31
- Product Overview32
- Front Panel Description33
  - Keys Definition33
  - Liquid Crystal Display (LCD) Description34
- Rear Panel Description35
- Supplied Accessories35
- Available Accessories and Options36
- Installation38
  - Preliminary Instructions38
- Power on39
- Operator Safety Advices39
- Connection to a Specimen40
  - Connection for the Insulation Resistance Measurement and Dielectric Strength Test (any Model)40
Unit Configuration42
- Language Selection42
- Beep on FAIL Configuration43
- Filtering Configuration for Capacitive Specimen43
- Access Control to the Parameters44
- Password Programming44
- Measurement Display46
- Remote Trigger Mode47
  - Electrical Connection and Trigger47
- Interface Selection48
- Sequence Selection (Option 04)48
- EXPERT Mode Activation49
Insulation Resistance Measurement50
- Parameter Setting50
- Insulation Resistance Measurement55
- Error Messages56
Dielectric Strength Test (Hipot Test)57
- Setting57
- Expert Mode Parameters Only67
- Dielectric Strength Test ( Hipot Test)69
- Dielectric Strength Test Error Messages72
Ground Continuity Resistance Measurement73
- Setting73
- Ground Continuity Resistance Measurement79
- Ground Continuity Measurement Error Messages80
Sequence Mode Operation (SXS)81
- Measurement Function Setting81
- Sequence Setting81
- Series of Tests with Manual Control84
- How to Run a Simple Sequence85
- Sequence with Manual Control86
- Multiple Ground Continuity86
- Multiple Ground Continuity Operation87
- Multiple Ground Continuity Followed by a Dielectric Strength Test ( Automatic Sequence)88
- Error Messages for the Sequence Mode89
11 Accessories with Remote Control Feature90
- Accessories Type90
- Connection90
  - Operation91
  - Specific Case for the Sequence (SXS50 & 500)92
12 Input Output Interfaces93
- Connections94
- Description of the Input Output Signals95
- Measurement Discharge Cycle96
- Information on Cycle Timing97
- PLC > RS Interface (Option 115-00)102
- Volts Analog Input Output (03 OPTION )104
- IEEE-488 Interface110
  - Commands111
- ETHERNET Interface112
- How to Set the Ethernet Interface Card under Windows XP113
- Configuring the Connexion on the Unit115
- RS232C Interface120
Application Notes133
- Environmental Influences134
  - Precautions to be Observed135
  - Measurements on Cables136
- Dielectric Strength Tests137
  - Breakdown Detection Mode Selection138
- Ground Continuity Measurement139
Safety Interlock Connector (C5)141
15 Measurement I/O on the Rear Panel142
16 Maintenance and Calibration143
- Preliminary143
- Instrument Return143
- Maintenance143
- Cleaning144
- Calibration144
17 Annexes145
Wires Option for XS Series and Hipot Function146
- Application146
- Content of the Option146
  - Accessory Set in the XS-108 Option146
  - Accessory Set in the XS-109 Option146
- Operation of the XS 4-Wire Option in XS Hipot Function147
- Rear View of the Unit and Accessory Connections153
Nominal DC Currents in the Hipot Function154
- Definition of the Nominal DC Current154
- XS 50VA DC Current Curves (RXS56, DXS56, SXS56)154
- XS 500VA DC Current Curves (RXS506, DXS506, SXS506)155
