XS series operating manual
XS user manual v0.55 - 89 -
11 Accessories with remote control feature
Accessories type
Some accessories in the XS series are equipped with a remote control push button to trigger the
measurement start and stop.
Those accessories are sorted in two categories:
Type 1 : For insulation and hipot test (ex : TE 58 xs )
Type 2 : for ground continuity (ex : TE 81 xs )
There is at least one accessory with remote control for each measurement function.
Their operation is very simple and fully automatic.
Connection
The remote control accessories are supplied with a sub D 15 pin connector.
Detection and identification are fully automatic.
The connection on the unit is done on any of the C1 to C3 connectors available on the rear panel.
A maximum of three accessories can be connected at the same time.

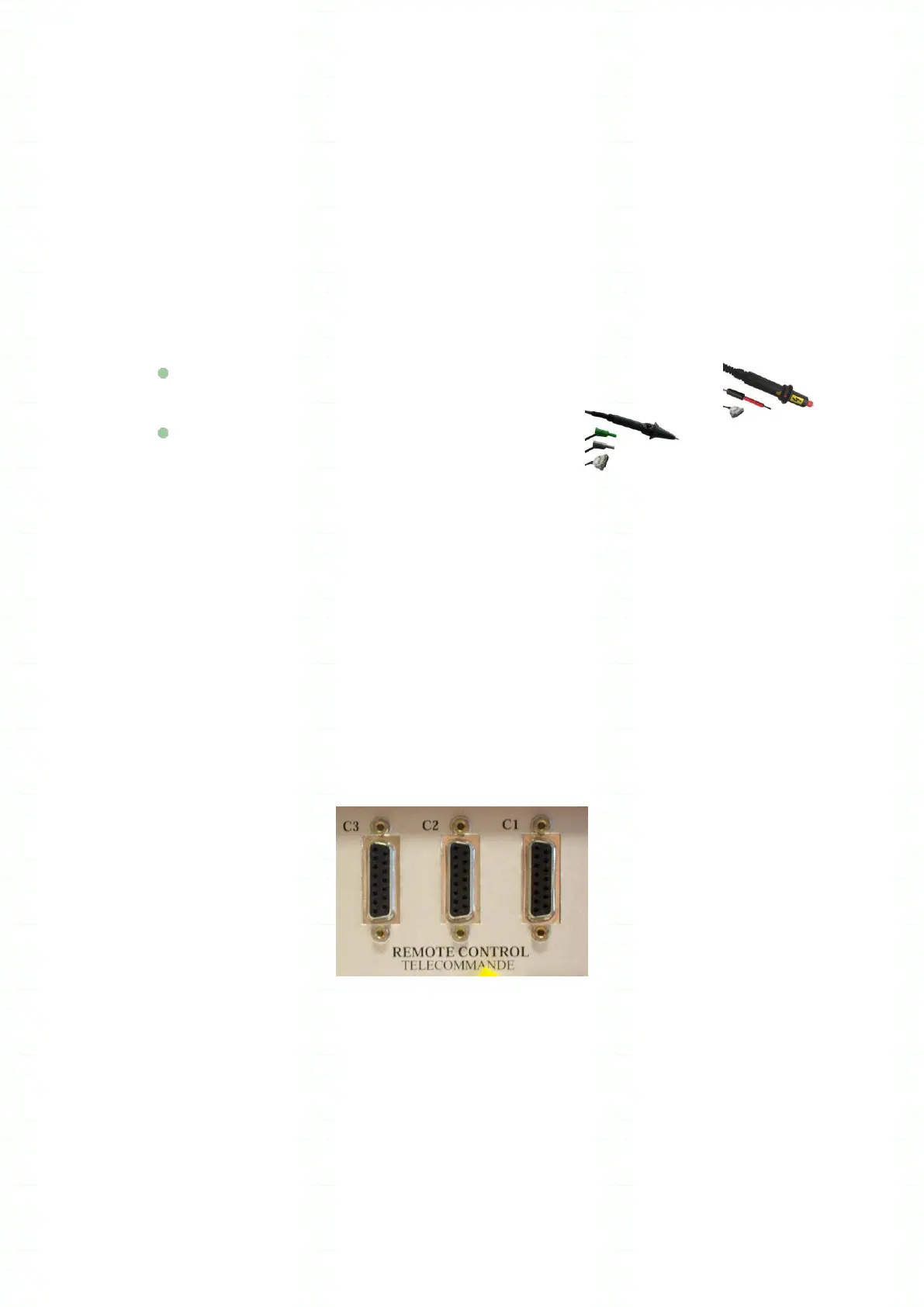

Fig 11.1
