P.48

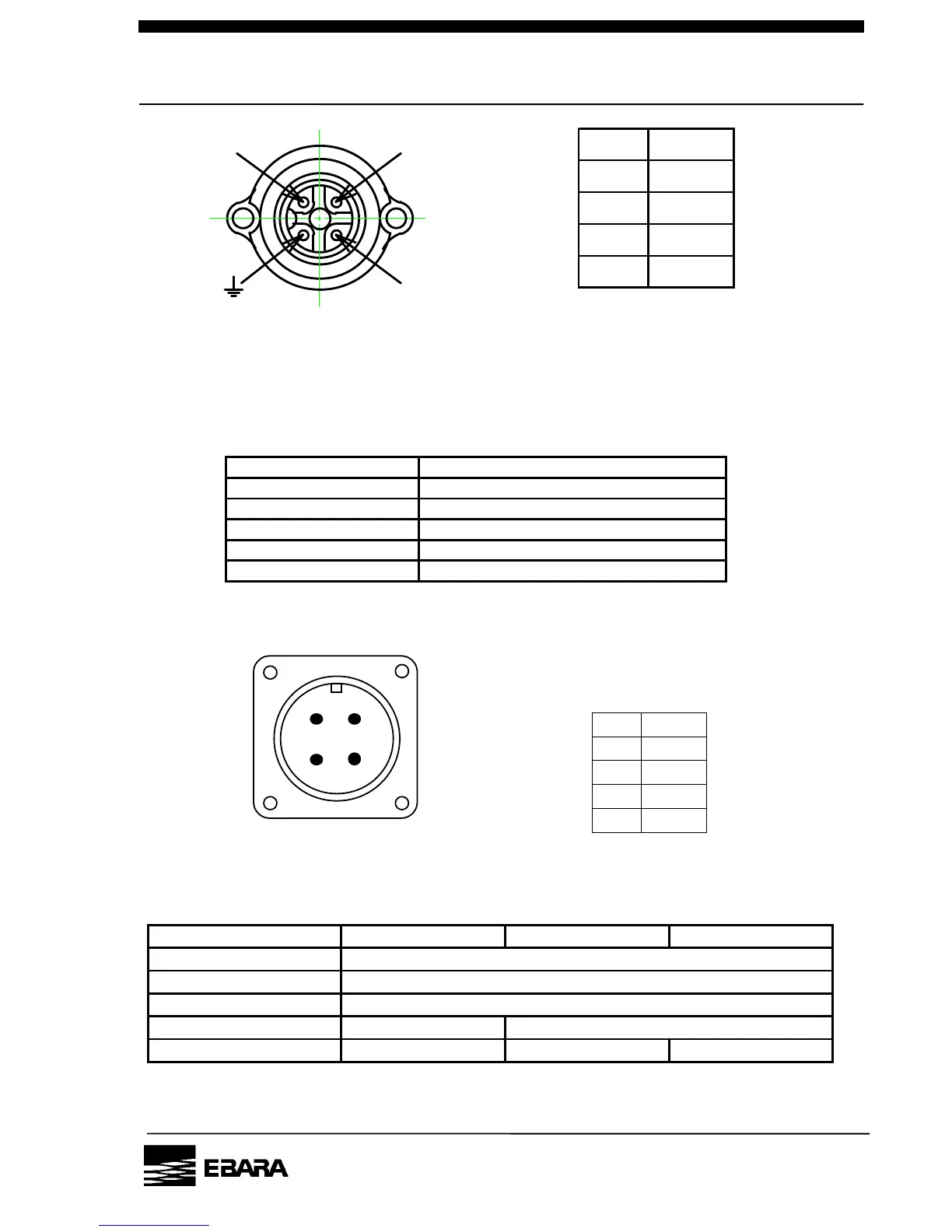

Table 4.2 Pin Assignment
of Power Supply Receptacle
Fig 4.4 Power Supply Receptacle
(As seen from connecting side)
Table 4.3 Receptacle Specification
Pump model
MODEL EV-S20
Receptacle type
C016 20C003 100 12
Recep. Manufacturer
Amphenol
Adapted plug type
C016 20D003 100 12
Suitable wire
AWG #14
Power capacity kVA
3.2
* Plug contact is a screw fix type. Please make sure to tighten the screw enough
to fix the Plug contact.
Table 4.4 Pin Assignment
of Power Supply Receptacle
NO.
Phase
A
R
B
S
C
T
D
GND
Fig 4.5 Power Supply Receptacle
(As seen from connecting side)
Table 4.5 Receptacle Specification
Pump model
MODEL EV-S50
MODEL EV – S100
MODEL EV – S200
Receptacle type
JL04HV-2E22-22PE-B-R
Recep. Manufacturer
Japan Aviation Electronics Industry Co., Ltd.
Adapted plug type
JL04V-6A22-22SE-EB-R
Suitable wire
AWG #12
AWG #10
Power capacity kVA
4.8
6.4
6.8
No.
Phase
1
R
2
S
3
T
GND
GND
Ｄ A
Ｃ
Ｂ
1
3
2
PM10U
