EBARA EV-S100P - Setting the Pump Operation Control Mode; Setting the DIP Switch

P.63

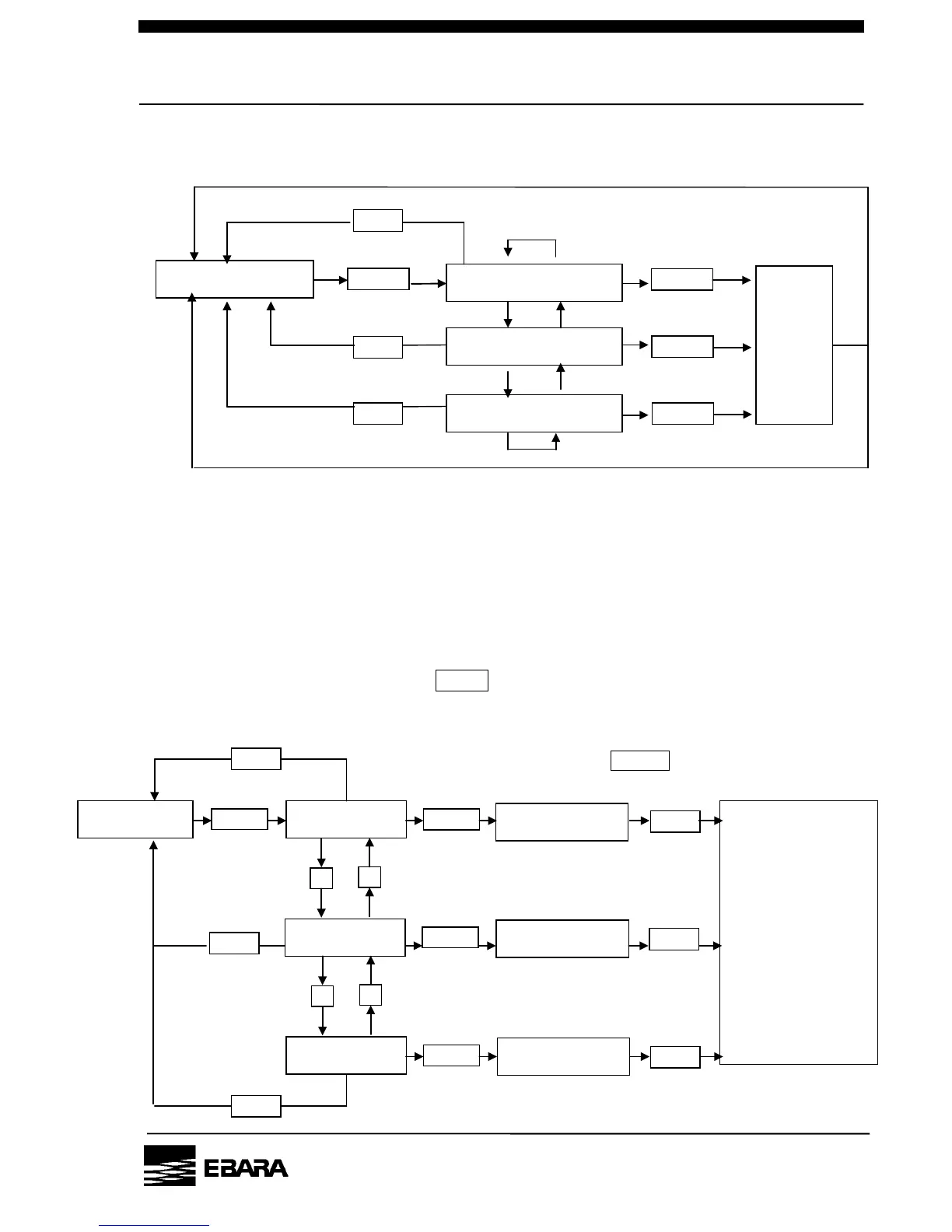

5.3.1 Setting the pump operation control mode
A case of display if Local mode selected.
REMOTE MODE : Enables the remote operation
(start/stop with external signals)
LOCAL MODE : Enables the local operation
(start/stop with the LCD controller)
COM MODE : Enables the communication operation
(start/stop with RS232C communication)
The mode which is currently not set is displayed.
If you do not need to set, press PRG. key to go back to the previous screen.
5.3.2 Setting the DIP switch
See 5.4 for details of the DIP switch.
SET
CONTROL MODE？
PRG.
PRG.
ENTER
ENTER
ENTER
NOW:LOCAL MODE
SET:COM. MODE
？
NOW:LOCAL MODE
SET:LOCAL MODE
？
Setting
Completed
ENTER
NOW:LOCAL MODE
SET:REMOTE MODE
？
PRG.
A1 ON ﾛ ﾛ ﾛ
OFF ﾛ
SET
DIP SW？
ＰＲＧ．
ＰＲＧ．
ENTER
ENTER
SET
DIP SW C？
SET
DIP SW A？
C1 ON
OFF ﾛﾛﾛﾛﾛﾛﾛﾛ
▽
△
ENTER
Setting Completed
Countdown beginning
ＰＲＧ．
ＰＲＧ．
SET
DIP SW B？
B1 ON
OFF ﾛﾛﾛﾛﾛﾛﾛﾛ
▽
△
ENTER
ＰＲＧ．
ＰＲＧ．
The up and down arrow keys, “▲” and “▼,
” turn On and OFF the DIP switch.
The key BZ.OFF switches the selection
from 1 to 8.
