5. LCD Controller
5.1 LCD Outline
[Buttons]
START
For start of MP and BP
STOP
For stop of MP and BP
▲ ▼
For changing LCD indication
RESET
For resetting WARNING and ALARM
BZ. OFF
For "buzzer mute in WARNING / ALARM "
PRG.
For changing screen of pump status
and Dip Switch selection
ENTER
For using at DIP switch selection
[LED]
BP RUN
BP running (It doesn't operate in EV-S20(P/N))
MP RUN
MP running
LOCAL
LOCAL mode
WARNING
WARNING condition
ALARM
ALARM condition

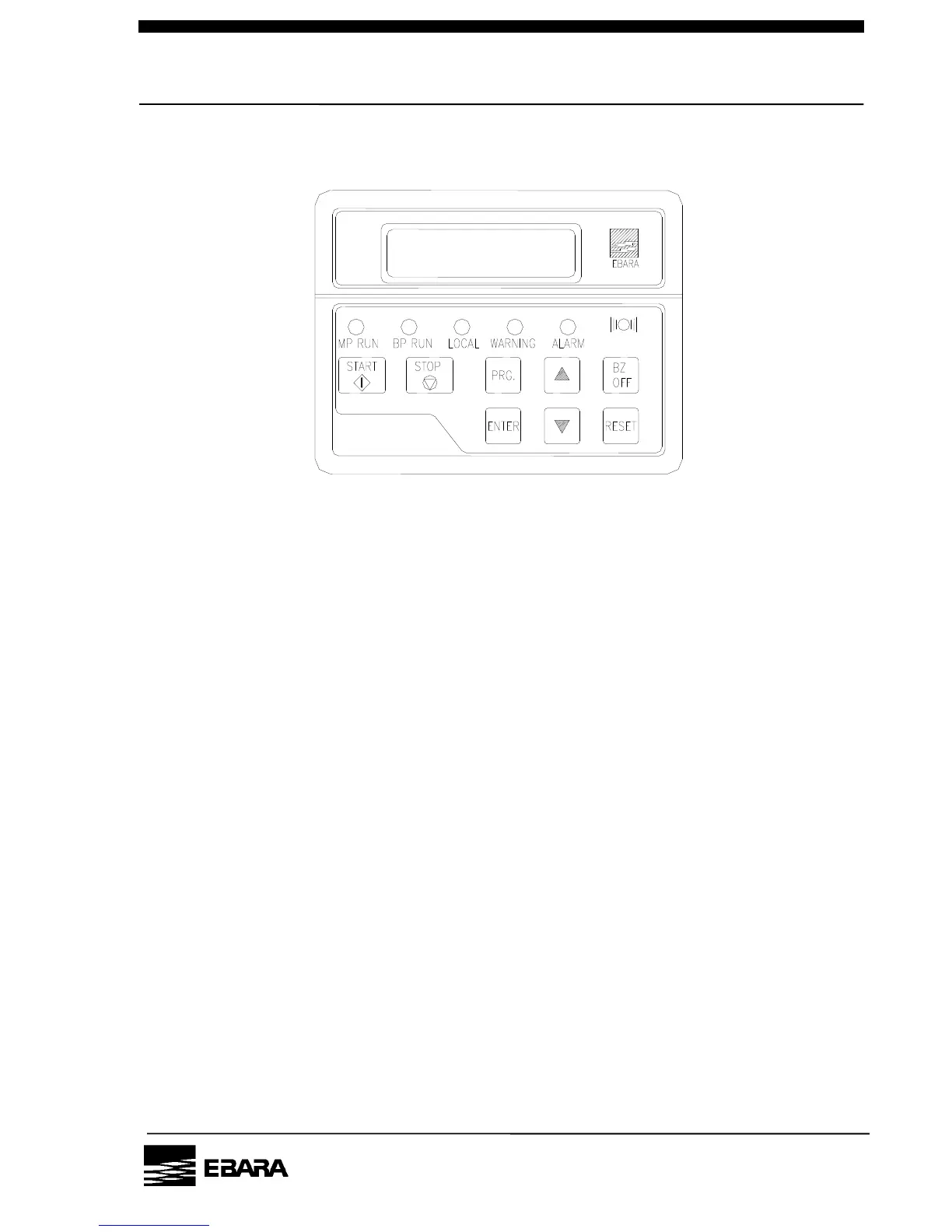

Fig 5.1 LCD controller
