C13 ABS Brakes and Anti-Charge Control Setting

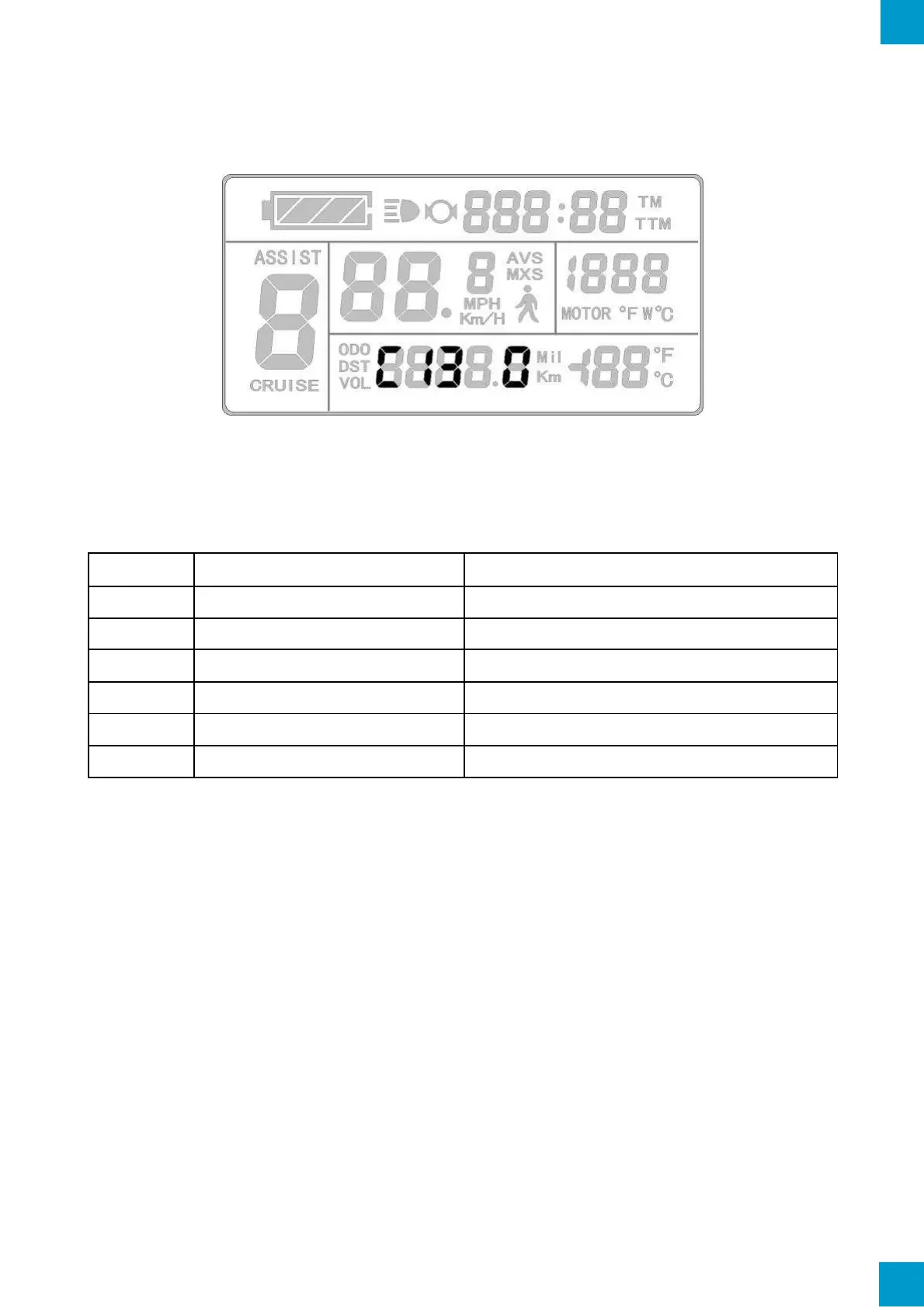

The C13 Parameter setting will display on the LCD after C12 settings. The KT-LCD3 will
display as follows:
C13 Display
C13 Parameters are settings for the ABS braking strength and anti-charge control. Refer
to the following table for definitions of each C13 value.
C13 Value
ABS Braking Strength
Energy Recovery Efficiency
0
None
None
1
Class 1 Braking Strength
Best energy recovery
2
Class 2 Braking Strength
General energy recovery
3
Class 3 Braking Strength
Weaker energy recovery
4
Class 4 Braking Strength
Poor energy recovery
5
Class 5 Braking Strength
Bad energy recovery
The recommended value for the C13 Parameter is 1. Other options should be selected
with caution for use. Seek professional advice for assistance.
Be sure to note: the higher the braking intensity level, the higher the braking strength will
be which results in greater damage to the motor shaft.
