EBO KT-LCD3 - Page 5

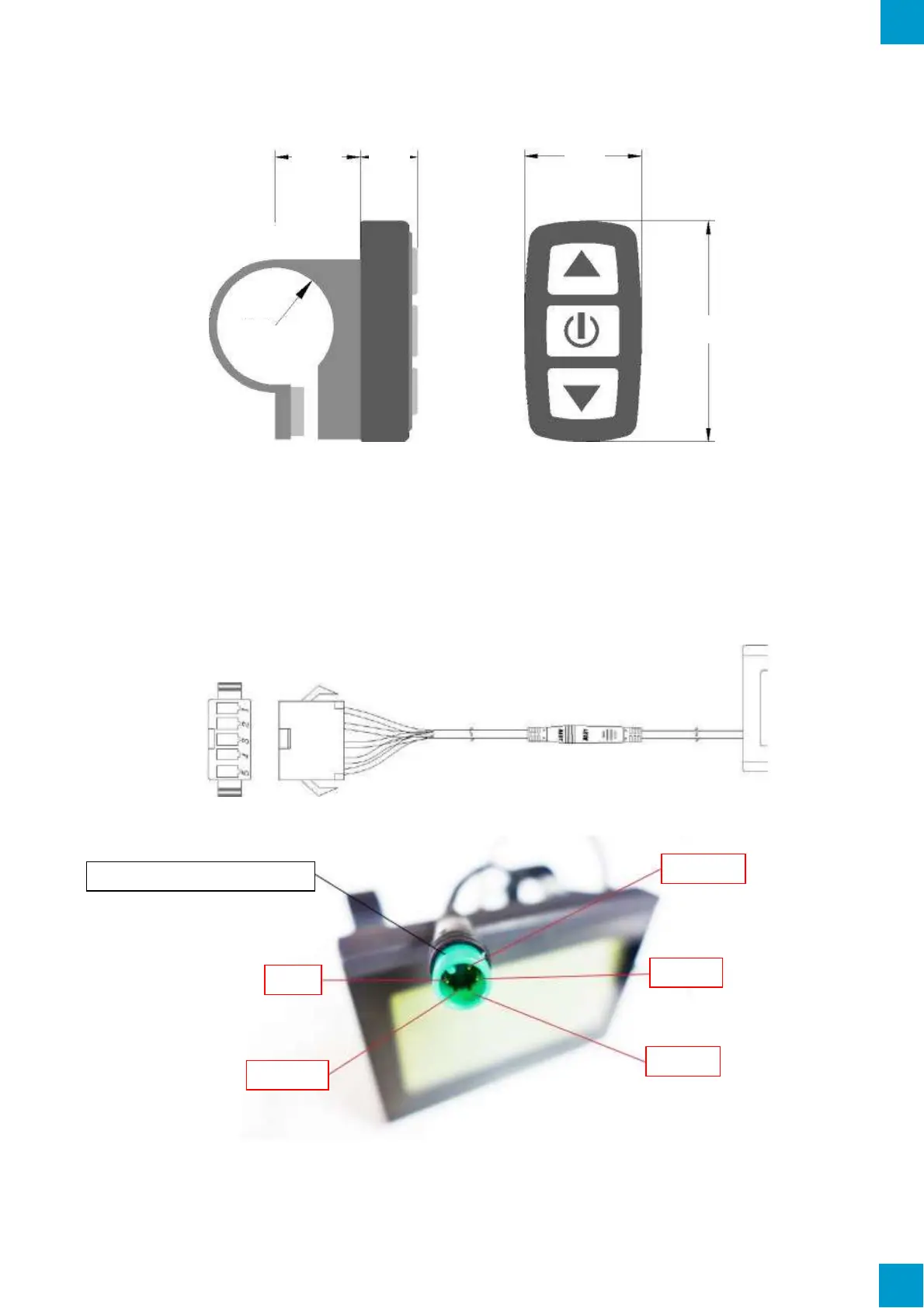

Button Control Box Dimensions (mm)
Main Material and Color
The KT-LCD3 and button control box are primarily constructed of polycarbonates (PC)
and are of a dark gray or black color.
Wiring Schematic
5
LCD
JULET Connectors
36V
Control
Ground
Data 1
Data 2
Red
Blue
Black
Green
Yellow
16.3
11
23
45
Ø 22.2
JULET KT-LCD3 Connector
Ground
36V
Data 2
Data 1
Control
