ink inlet connector
cable distributor
connector
air compressor output connector
power
switch
interface cable to PC o
r
T200 connector terminal
ink monitoring system
(IMS) connector cable
photo-detecto
r
connector cable
shaft-encode
r
connection socket
power supply cable
print head
connector cable
pins to fix PC/TERM
connecto
r

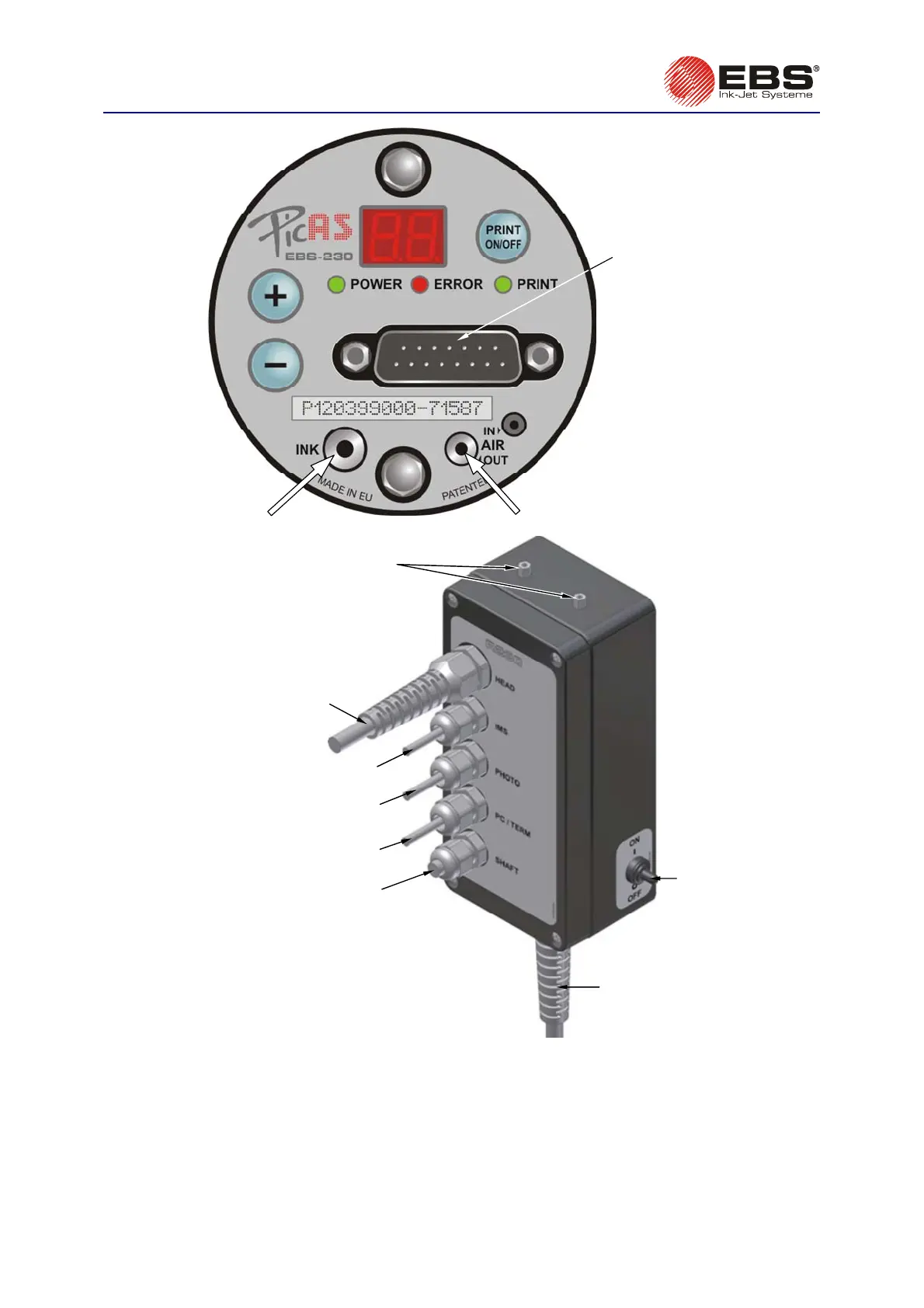

Fig. 2.3.3.3. Connection sockets on the printer’s operation panel as well as R230 cable
distributor connector cable.
