4.3.6. Prints are slanted
PROBLEM REMEDY
The prints are slanted and
turned left or right.

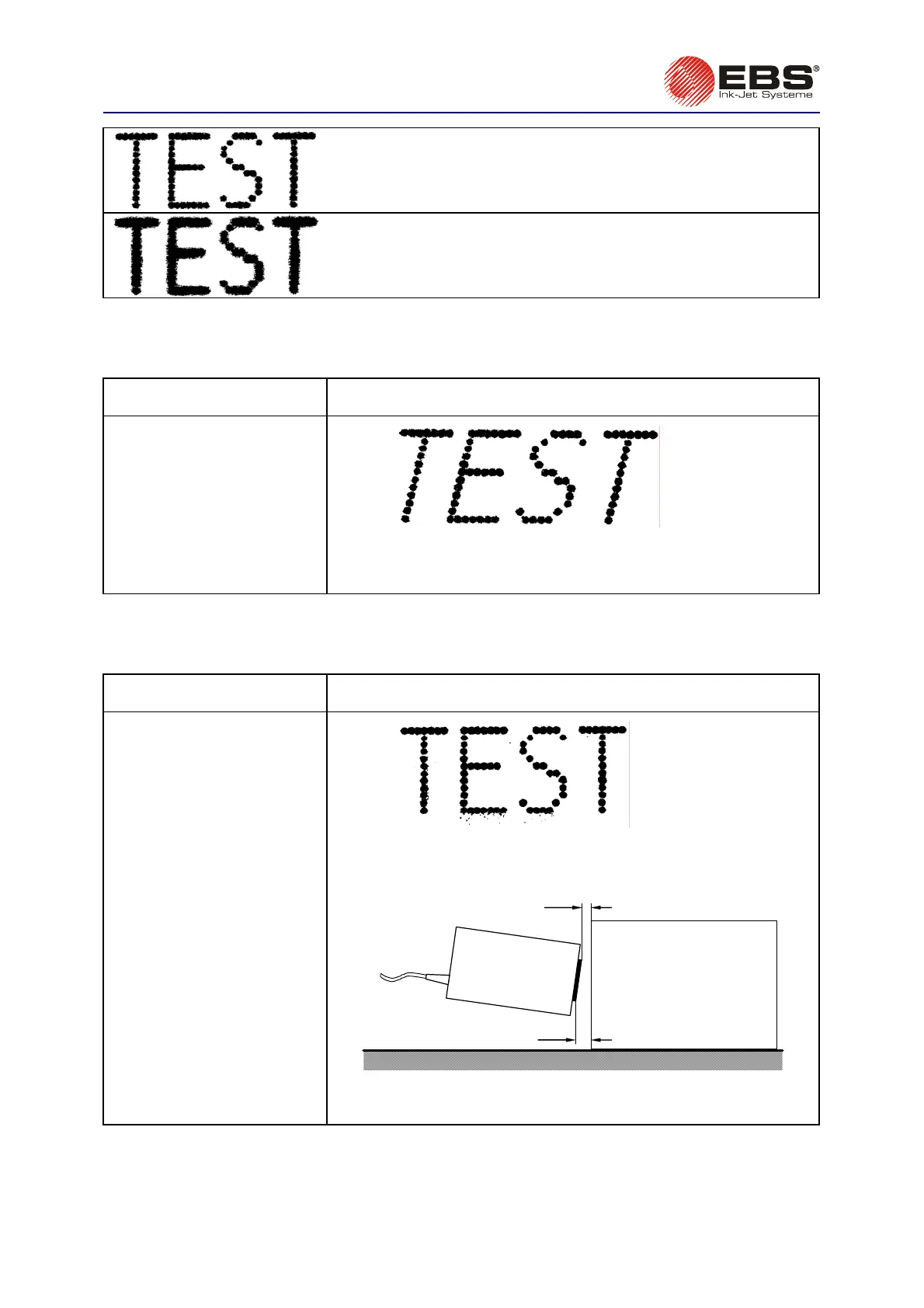

Fig. 4.3.6.1
Such a print occurs when the printer is turned around it own axis.
Re-position the printer by turning it in the printer holder in such a way
that all nozzles are located along the vertical line.
4.3.7. Lower (upper) parts of prints are distorted
PROBLEM REMEDY
The lower (upper) parts of
prints are distorted.
Irregular splashes of ink
occur.
Fig. 4.3.7.1
Such a print occurs when the front part of the printer is tilted down
(up) and therefore the outlets of lower (upper) nozzles are more
distant from the object than the other ones.
OBJECT LABELED
A
B
The printer is tilted
B
> A or A > B
Fig. 4.3.7.2
Level the printer by adjusting the printer holder.
