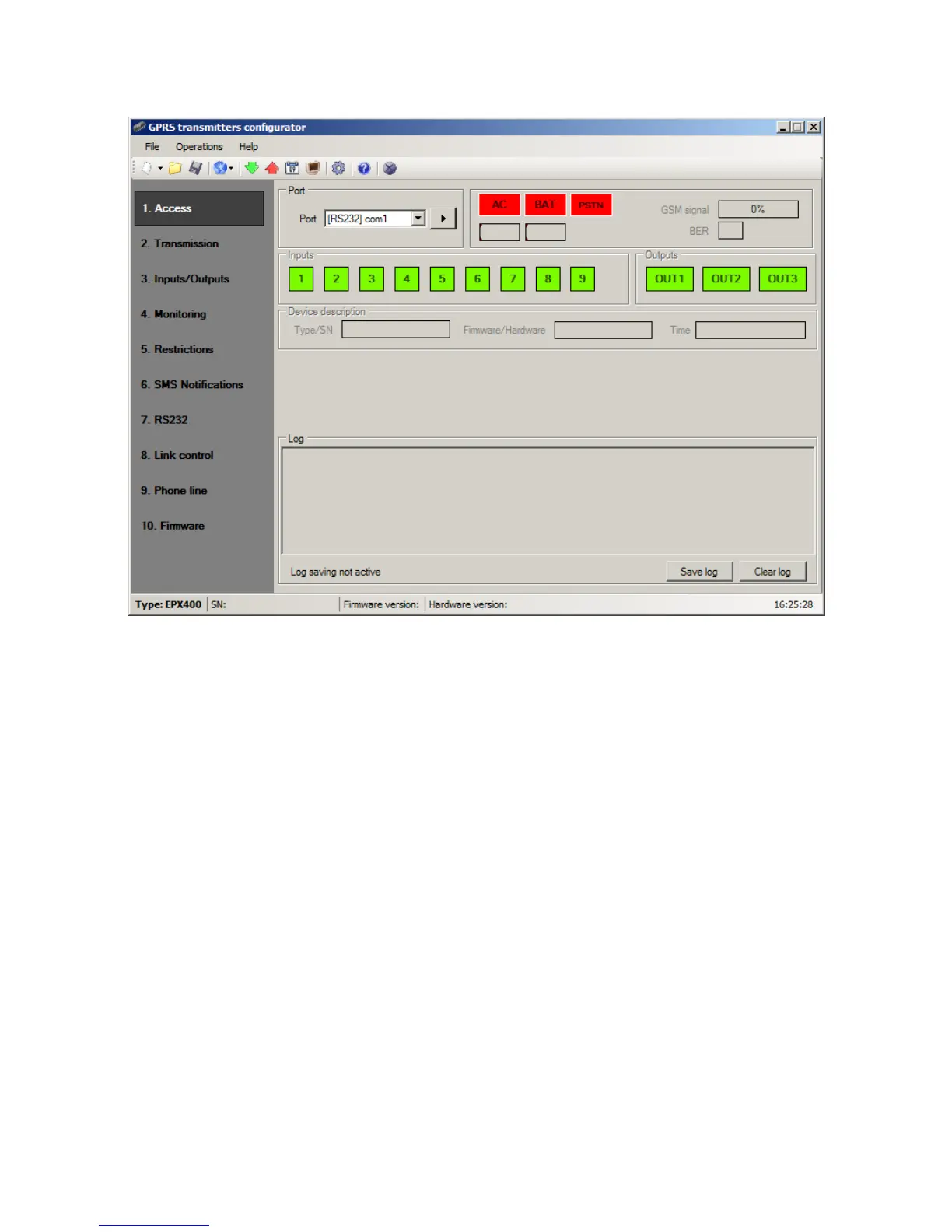

8.11. DEVICE MONITOR
“Device Monitor” provides real-time information on device state. To use this function
device must be connected to PC computer with GD-PROG cable (the switch in position
DEBUG). Correct RS232 port must be chosen in “Port” field. “Device monitor”
provides following information:
o AC power indication
o Battery power indication
o PSTN line indication
o GSM network signal level indication
o Bit-Error-Rate level measuring
o Inputs and outputs state monitoring
o Type or serial number of device
o Firmware and hardware revision
o Device time
These parameters are also shown in LOG window in text style. All data can be saved
to file.
Note: Relay output “NC-NO-C” in the Device Monitor window are presented as OUT3.
