EC-PM-80320 Service Manual
- 2 -
Output voltage: 24 V(DC)
OUT
Current: 2.5 A
Temperature: 5 ~ 35℃
Operating environment
Humidity: 25 ~ 80%RH (No condensation)
Temperature: -40 ~ 55℃
Environmental
conditions
Storage environment
Humidity: ≤93%RH (40℃, No condensation)
Weight
Approx. 2 Kg
Noise
＜38 dB (A) (ISO7779 standard)
Physical dimensions 145 mm (Width) × 200 mm (Depth) × 145 mm (Height)
Control panel
One key and three LEDs
Paper type
Thermal roll paper
Power consumption
① Operating: 40 W; ② Standby: Approximately 3.2 W
Code page 76 kinds
Certificate
CE/FCC
3.2 Interface Specification
The printer is configured with one cash drawer interface and one data interface (Parallel interface,
USB interface, USB interface + serial interface, USB interface + Ethernet interface, USB interface +
Bluetooth or USB interface + Wi-Fi). Please connect the printing and the computer with correct
cables.
3.2.1 Cash Drawer Interface
The cash drawer interface of the printer uses the RJ-11 connector, which is shown below.
Table 3-1: Cash drawer connector Pin assignments
Pin number Signal Direction
1 Frame GND ---
2 Cash Drawer drive signal OUT
3 Cash Drawer Open/closed signal IN
4 24VDC OUT
5 Cash Drawer drive signal OUT

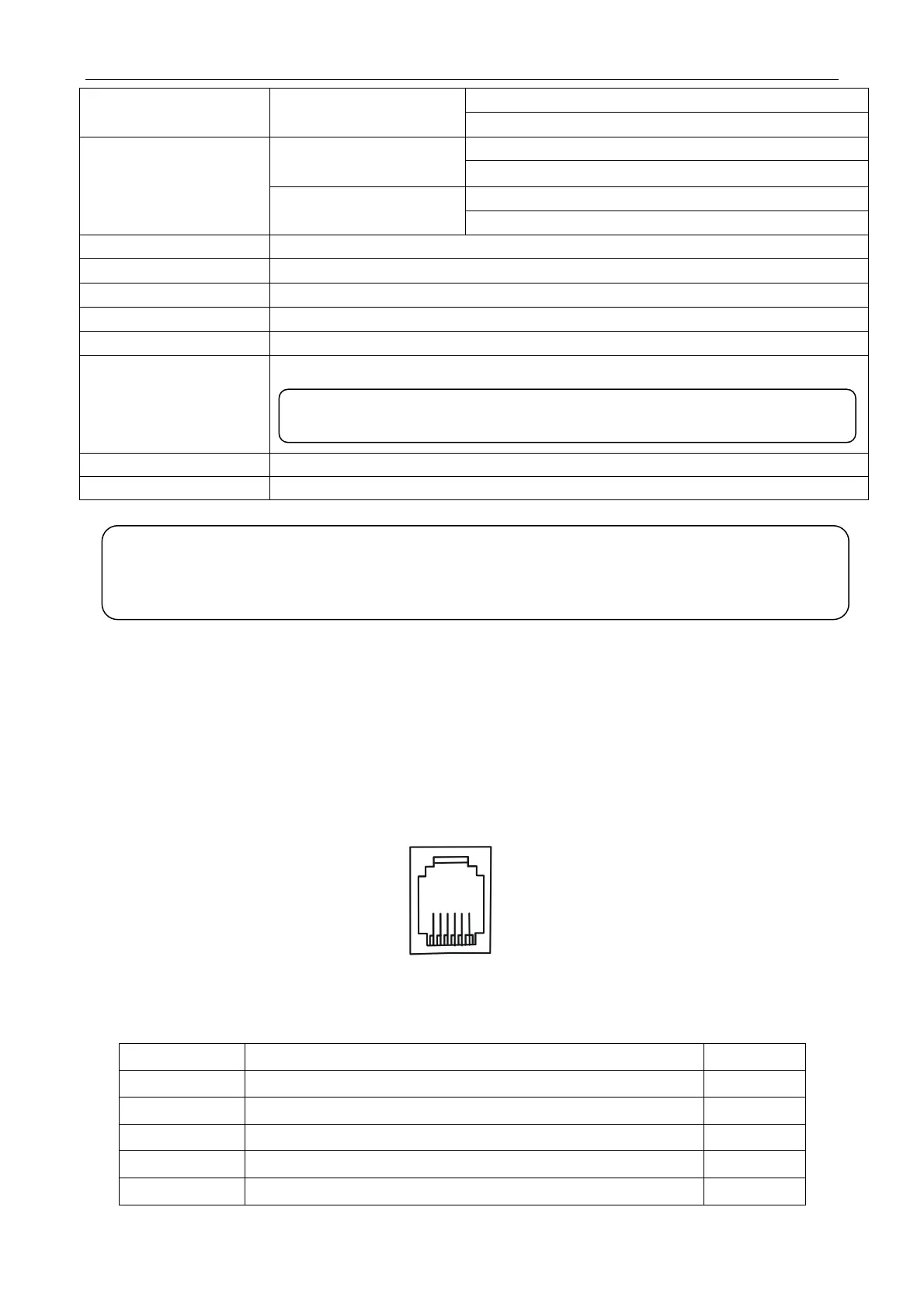

Figure 3-1 Cash drawer interface
Note: Only when the product is unconnected with outer power supply,
it can achieve zero energy consumption state.
Note: All the technical instructions in this service manual are the laboratorial measurements
which are achieved under national standard store and work environment (room
temperature), the measuring paper accords with the specification in this service
manual.
6 1
