EC-PM-80320 Service Manual
- 5 -
4 DTR Printer Signal terminal is ready
The default settings in serial connecting way are 9600bps, 8 data bits, parity check disabled and 1
stop bit.
EC-PM-80320 printer’s serial interface can be connected with the standard RS-232C connector.

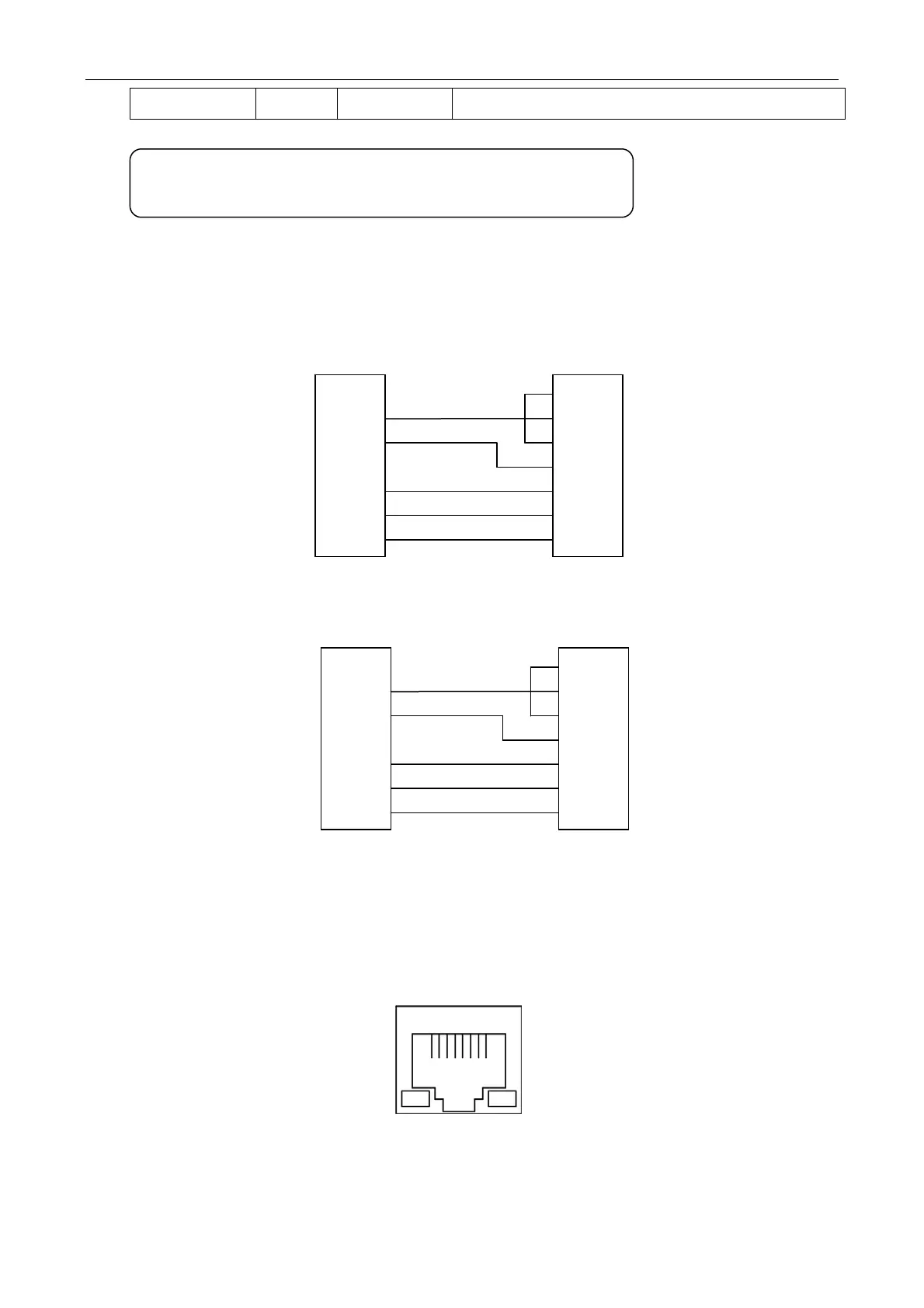

When connecting with a PC, the connecting picture is shown as Figure 3-6. While connecting with
an IBM PC or a compatible PC, you can connect the cable as shown in Figure 3-7.
3.2.5 Ethernet Interface
Ethernet interface of 10/100 Base-T can be connected to 10/100M.
3.2.6 Power Supply Inlet
The EC-PM-80320 printer connects with a 24V±10% and 2.5A AC adapter. The power supply inlet is
Figure 3-6 Connecting with 9-Pin PC
Figure 3-7 Connecting with 25-Pin PC
Figure 3-8 Ethernet interface
Printer 9-Pin connector Host 9-Pin connector
DTR
CTS
GND
TXD
RXD
DSR
DCD
CTS
RTS
GND
RXD
TXD
4
8
5
3
2
6
1
8
7
5
2
3
Printer 9PIN connector Host 25PIN connector
DTR
CTS
GND
TXD
RXD
DSR
DCD
CTS
RTS
GND
RXD
TXD
4
8
5
3
2
6
8
5
4
7
3
2
Note: “From” means the source where signal comes out.
Signal level is EIA level.
