5.2.2 Disassemble MPM-80T Assembly

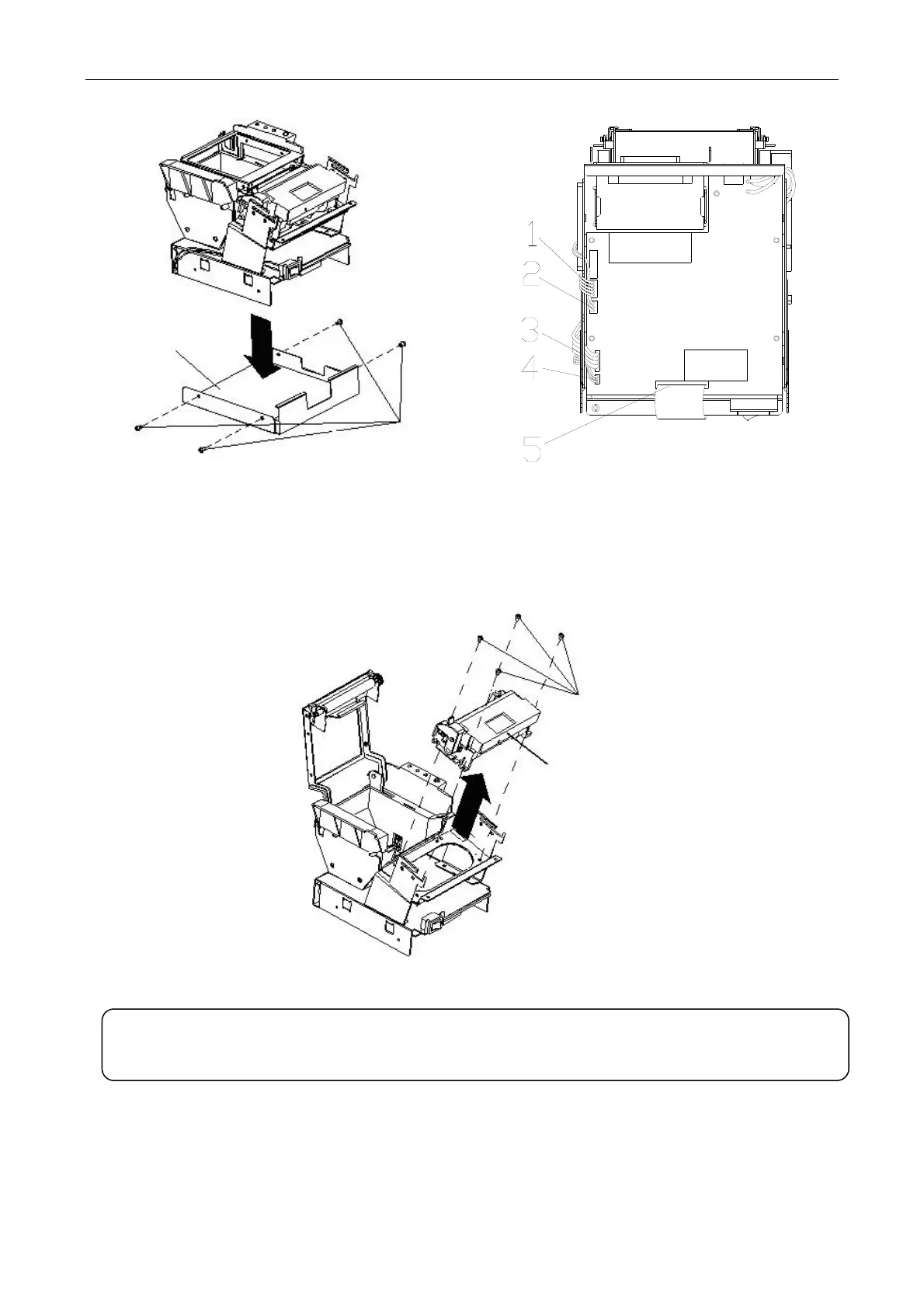

Step1. As Figure 5-9 shown, loosen the screws PM3*6.
Step2. Take down the MPM-80T assembly.
5.3 Disassemble Paper Feed Mechanism
5.3.1 Removing the Platen Assembly
As Figure 5-10 shown, loosen the screws PM3*4.
Figure 5-7
Figure 5-8
Figure 5-9
Screw PM3*4
B
asep
l
ate
co
v
er
Sc
r
e
w PM
3
*
6
MPM-80T assembly
Note：MPM-80T assembly doesn’t need maintenance, and it doesn’t need any lubrication
under the normal condition. Suggest that lubricate the surface of mechanism gear
and shaft after disassembling or cleaning the lubricating parts.
