5.3.2 Loosen Rolling Ring
Step1. Pull out the feed paper gear.
Step2. Take off the E-ring Ф1.5, Then the rolling ring on both sides can be slid out.
5.3.3 Take Down the Platen
Take out right-side of platen, and then slide the whole platen at the left side.
Screw PM3*4
Rolling ring 2
Rolling ring
Feed paper gear C
E-ring Ф1.5

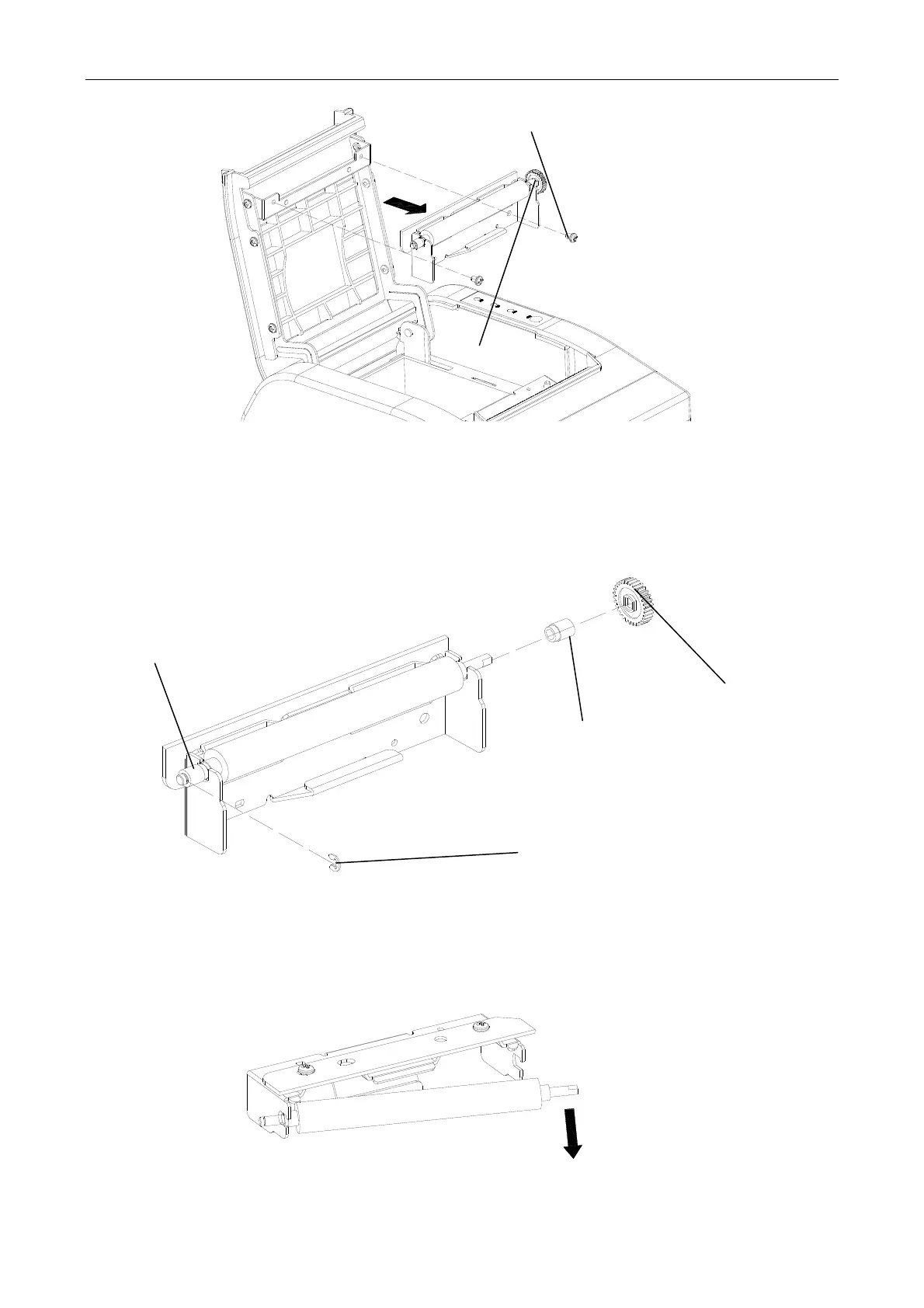

Figure 5-10
Figure 5-11
Figure 5-12
