15

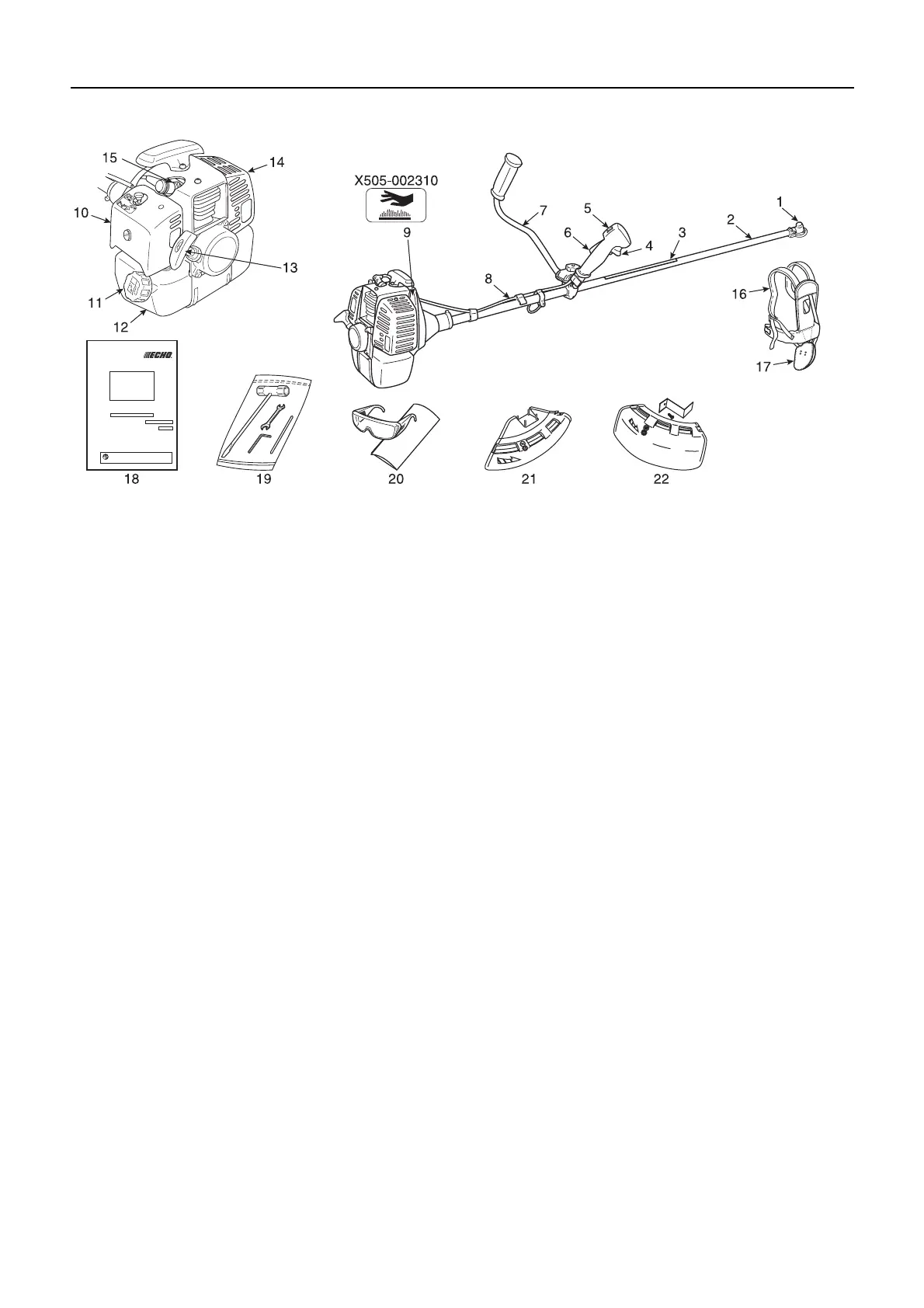

Description
1. Angle transmission - Having two gears to change the
angle of rotating axis.
2. Shaft tube - Part of the unit that provides a casing for
power transmission shaft.
3. Safety decal - Part number 890617-43130
4. Throttle trigger - Activated by the operator's finger for
controlling the engine speed.
5. Ignition switch - "Slide switch" mounted on top of the
throttle trigger housing, move switch upward to RUN,
downward to STOP position.
6. Throttle trigger lockout - Locks throttle trigger in the
idling position until you have a proper grip with your right
hand around the handle.
7. U-handle - Having the configuration of a bicycle handle
bar.
8. Suspension point - Device on which the harness can be
hooked.
9. Safety decal - Part number X505-002310
10. Air cleaner cover - Covers air filter.
11. Fuel tank cap - For closing the fuel tank.
12. Fuel tank - Contains fuel and fuel filter.
13. Starter handle - Pull handle to start the engine.
14. Silencer cover - Cover the silencer not to make operator
touch to hot surface of silencer.
15. Spark plug
16. Shoulder harness - An adjustable straps to suspend
unit.
17. Hip pad - To protect hip / leg and clothing.
18. Operator's Manual - Included with unit.
Read before operation and keep for future reference to
learn proper, safe operating techniques.
19. Tools - 17 X 19 mm T-wrench (combination screwdriver
/ spark plug socket), 8 X 10 mm spanner, 4 mm
hexagonal wrench and bar tool.
20. Goggles
21. Metal blade shield - Device to protect the operator from
accidental contact with the cutting head and thrown
objects.
22. Nylon line head shield - For nylon line head only.
Device to protect the operator from accidental contact
with the cutting head and thrown objects.
Cut off knife; Cut nylon line to adjust line length to proper
swath, screw 5 x 12.
