Installation of bracket

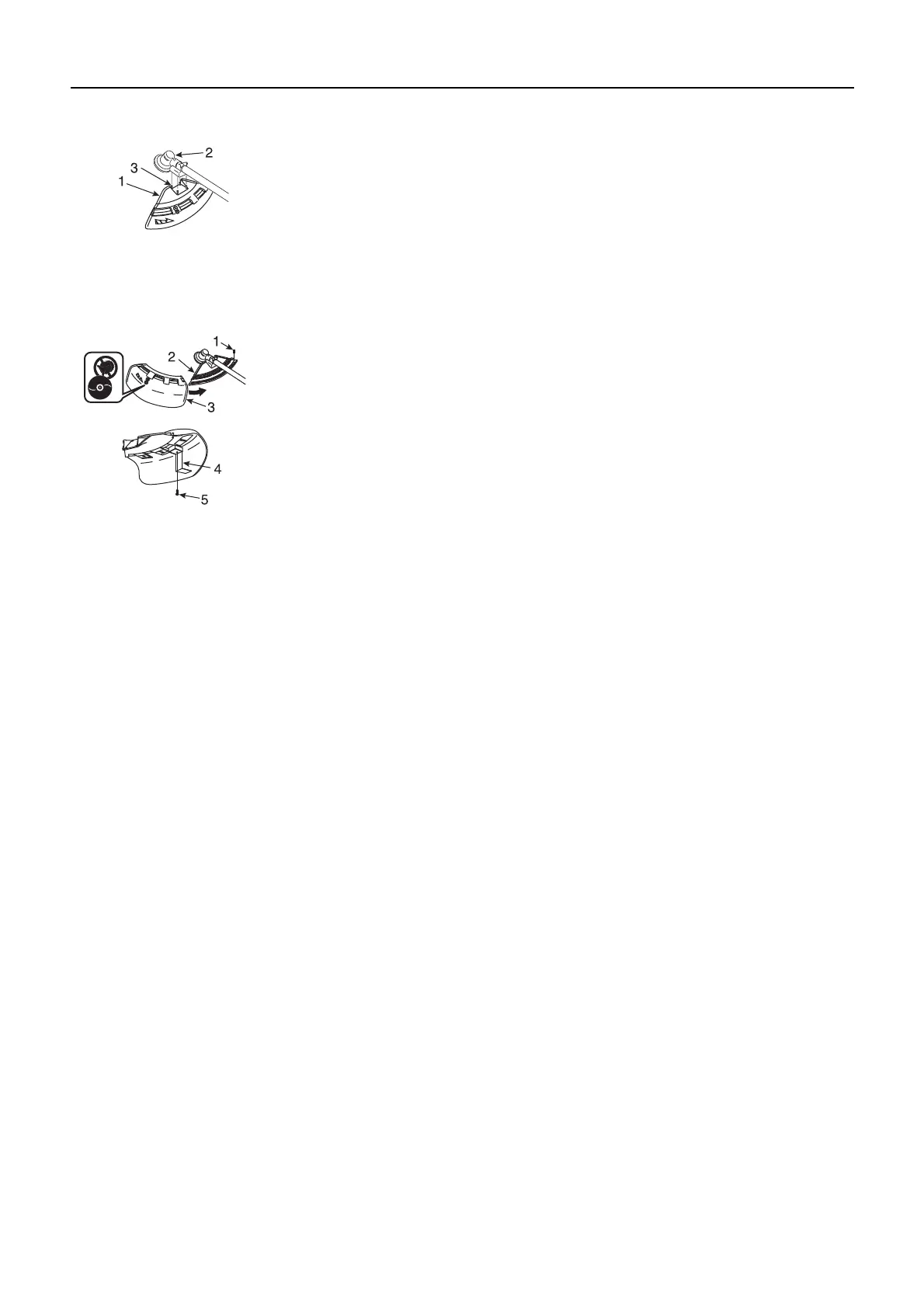

1. Bracket. 2. Angle transmission. 3. Four bolts (M5 x 25).
Fit bracket to mounting portion of angle transmission and tightening four bolts (M5 x 25)
securely.
Method to change shield
There are two types of shields: namely one used exclusively for nylon line and another one
used exclusively for metal blade.
When nylon line is used, use the shield for nylon line.
1. Bolt (M5 x 22). 2. Bracket. 3. Shield (for nylon line). 4. Cut off knife.
5. Screw (5 x 12).
Remove bolt (M5 x 22) on the right side of the shield and slide the shield to the left and
remove it.
Put shield of another type into groove and slide it to the right until it stops and be sure to
fasten with the removed bolt (M5 x 22).
When using nylon line, use the shield for nylon line.
Fit cut off knife to the shield for nylon line using screw (5 x 12).
