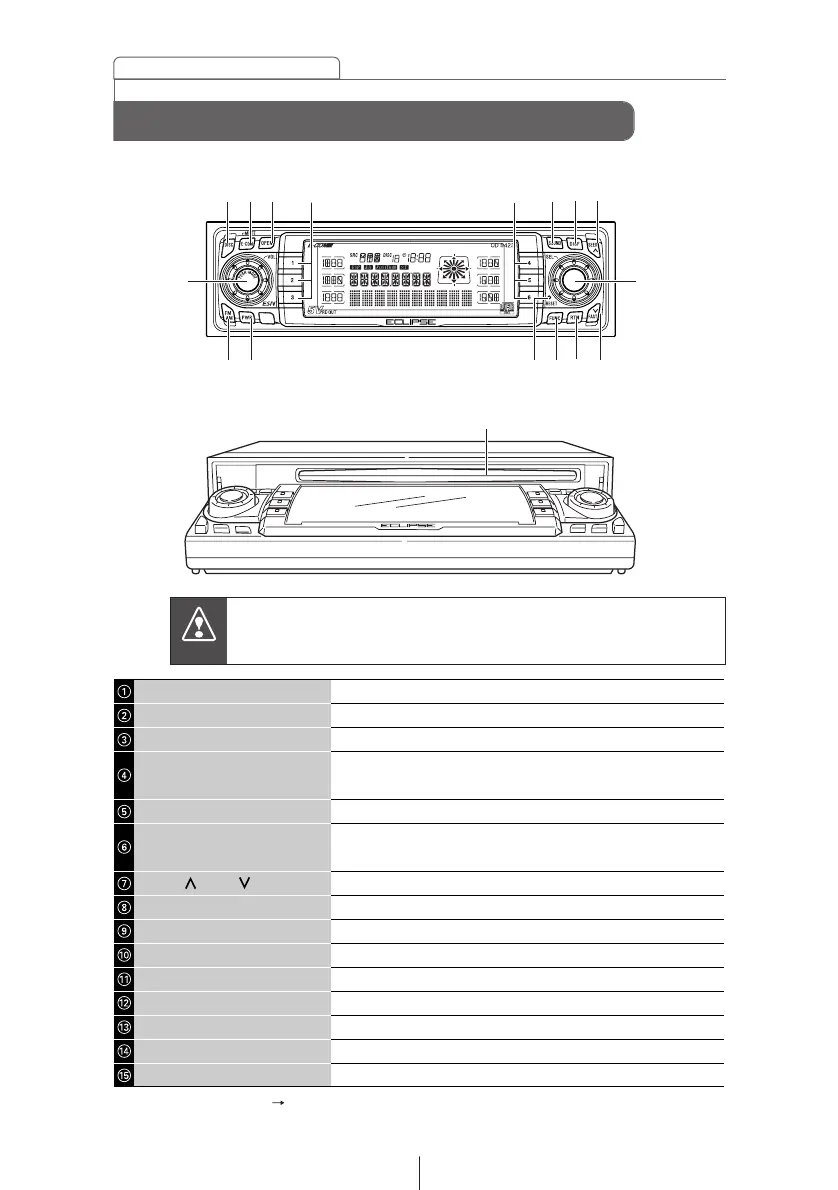

Names of controls and parts
Front view
With the front open
Never place an object or rest your hands or the like on the front
panel.
Caution
Names of controls and parts
Switches disc modes and switches to AUX mode.
Activates and deactivates mute.
Opens/closes front panel and adjusts angle.
Selects radio preset channels and performs disc mode
functions.
Turns the sound adjustment mode ON/OFF.
Turns screen adjustment mode ON/OFF and switches screen
display.
Automatically finds radio reception and fast forward/rewind.
Selects radio stations and CD tracks.
Returns to previous screen.
Turns function mode ON/OFF.
Resets deck functions to default settings.
Turns deck power ON/OFF.
Switches to radio mode and switches radio bands.
Adjusts volume and performs other functions.
Inserts compact discs.
[DISC] button
[E-COM] button*
[OPEN] button
Buttons [1] to [6]
[SOUND] button
[DISP] button
[SEEK /FAST ] button
[SEL] button
[RTN] button
[FUNC] button
[RESET] button
[PWR] button
[FM AM] button
[AUDIO CONTROL] button
Disc slot
*: Double function button "E-COM" & "MUTE" functions
①② ⑤⑥⑦③ ④
⑬⑫ ⑪⑩⑨⑦
⑮
⑧⑭
④
