Mounting instruction

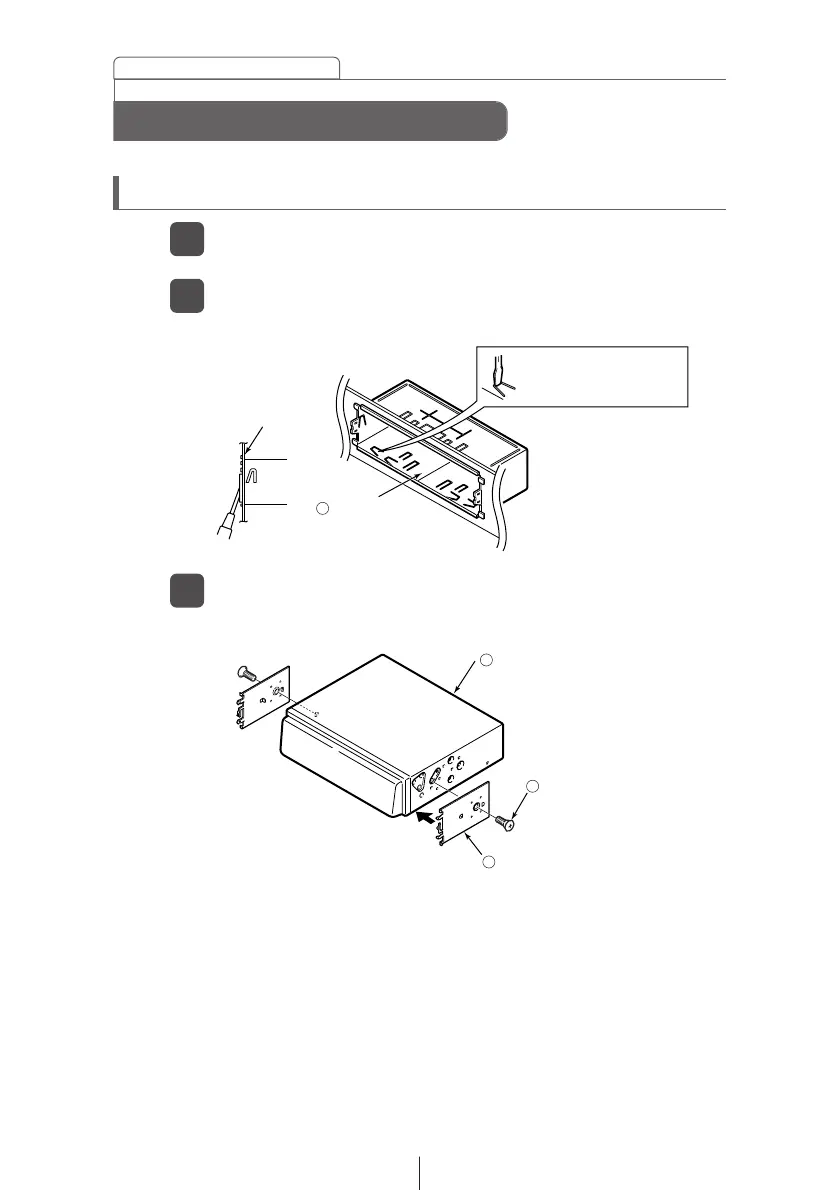

Mounting the main unit
Insert the mounting sleeve into the opening in the vehicle
console.
1
Use a screwdriver or the like to bend the tabs in the
mounting sleeve to secure the mounting sleeve.
2
Attach the side brackets to the main unit using flathead
screws.
3
BEND THE MOUNTING
TABS.
DASH BOARD
OR CONSOLE
MOUNTING
SLEEVE
2
MAIN UNIT1
SIDE BRACKETS [ x 2 ]
3
FLAT HEAD
SCREWS [ x 2 ]
(5 x 8mm)
