Technical service manual ecoGEO
39
EN

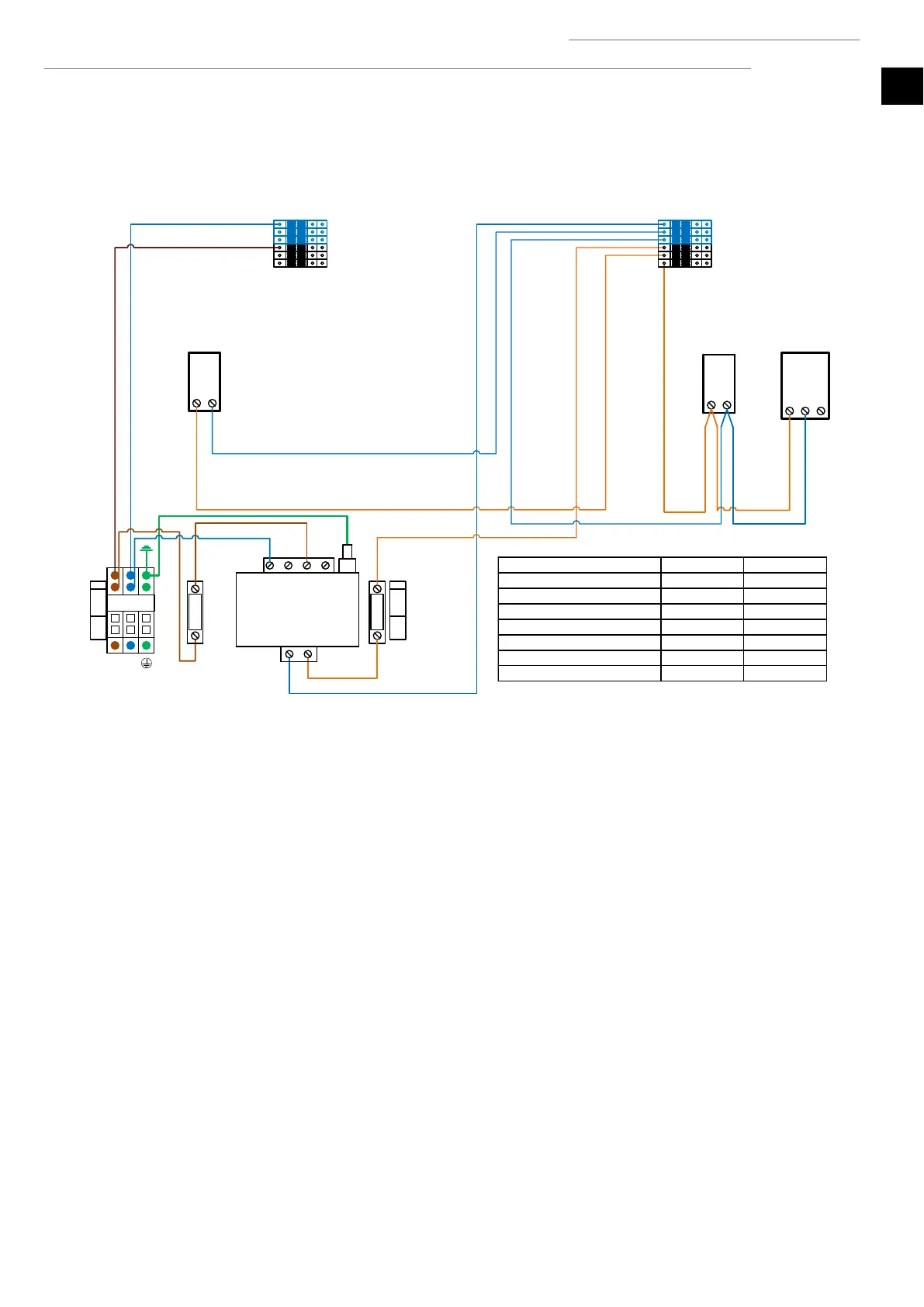

3.2. Power circuit diagram
ecoGEO B|C. All models.
230 Vac
Distribution
24 Vac
Distribution
PCOOEM
J1
G0 G
PCOe
J1
G0 G
Y1
VG0 VG
PCOe
J2
TRAFO
230/24
L2/N L1
Control Supply
230 Vac
0.5A
2.5A
Fuse information 0.5Amps 2.5Amps
Manufacturer SIBA SIBA
Model 70-007-33/0.5A 70-007-33/2.5A
Fuse rating [A] 0.5 2.5
Voltage [V] 250 250
Size [mm] 5x20 5x20
Breaking Capacity Current AC [A] 1500 1500
Fuse speed F F
