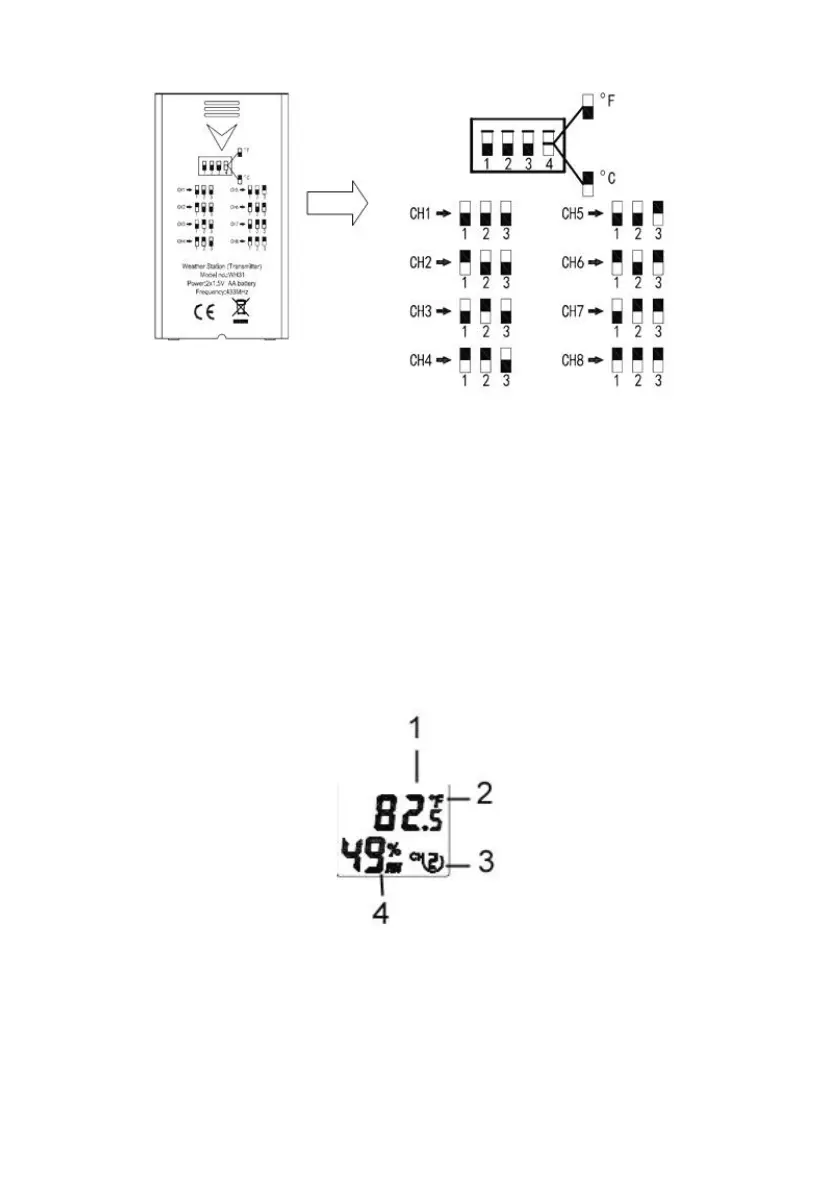

Figure 13: Dip Switch diagram
5. Insert two AA batteries.
6. Verify the correct channel number (CH) and temperature units of
measure (°F vs. °C) are on the display, as shown in Figure 14.
(1) Temperature
(2) Temperature units (°F vs. °C)
(3) Channel number
(4) Relative humidity
Figure 14: sensor LCD display
7. Close the battery door.
Repeat for the additional remote transmitters, verifying each remote
is on a different channel.
