RFT/NFT/MFL Connector (19 pins)
The RFT/NFT/MFL connector is used to connect the Remote-Field Testing (RFT), Near-field
Testing (NFT) and Magnetic Flux Leakage (MFL) probes. The signals contained in the
RFT/NFT/MFL connector are the generator outputs, the channel amplifier inputs, and a DC
power supply.
Description
19-pin, female, shell 14 connector
Manufacturer, number
Amphenol, 58-570124-19S
or
Souriau 851-02E1419S50A7
Suggested cable connector
ITT Cannon, KPT06A14-19P027
or
Amphenol PT06J-14-19P

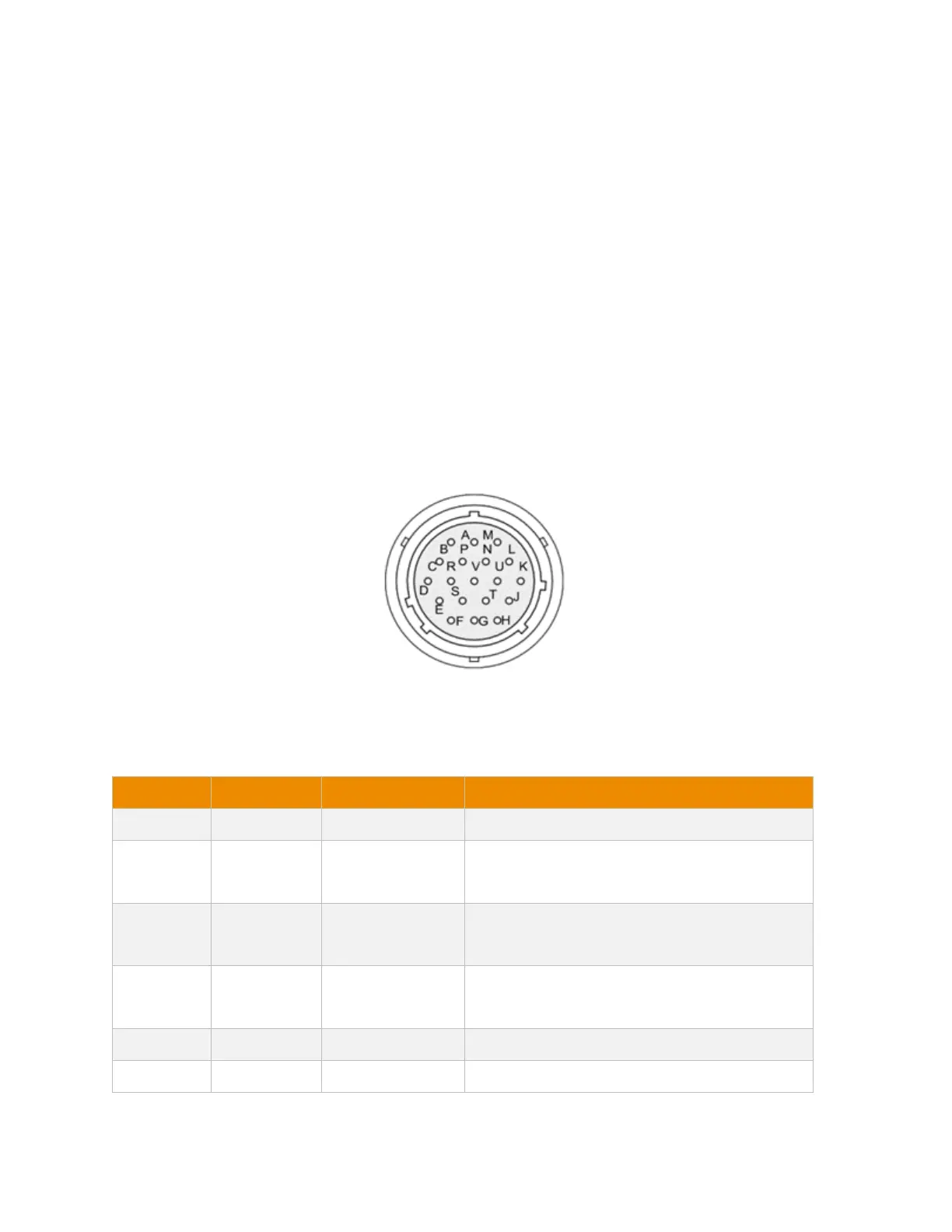

Figure 0-1 – RFT/NFT/MFL connector
Table 2 – RFT/NFT/MFL connector pinouts
Pin
I/0
Signal
Description
A
-
GND
Ground
B
Input
RFT_IN 4-
MFL4_IN 4-
Negative RFT input #4
Negative MFL input #4
C
Input
RFT_IN 3+
MFL_IN 3+
Positive RFT input #3
Positive MFL input #3
D
Input
RFT_IN 3-
MFL3_IN 3-
Negative RFT input #3
Negative MFL input #3
E
+15 V supply
+15 V supply voltage, 600 mA max.
F
Output
Drive2_OUT
Coil driver #2 output
