Network Planning
2-4
2
Remote Connections with Fiber Cable
Fiber optic technology allows for longer cabling than any other media type. A
1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a
1000BASE-LX (SMF) link up to 5 km, and a 1000BASE-LH link up to 70 km. This
allows a Gigabit Ethernet Switch to serve as a collapsed backbone, providing direct
connectivity for a widespread LAN.
The figure below illustrates this switch connecting multiple segments with fiber
cable.

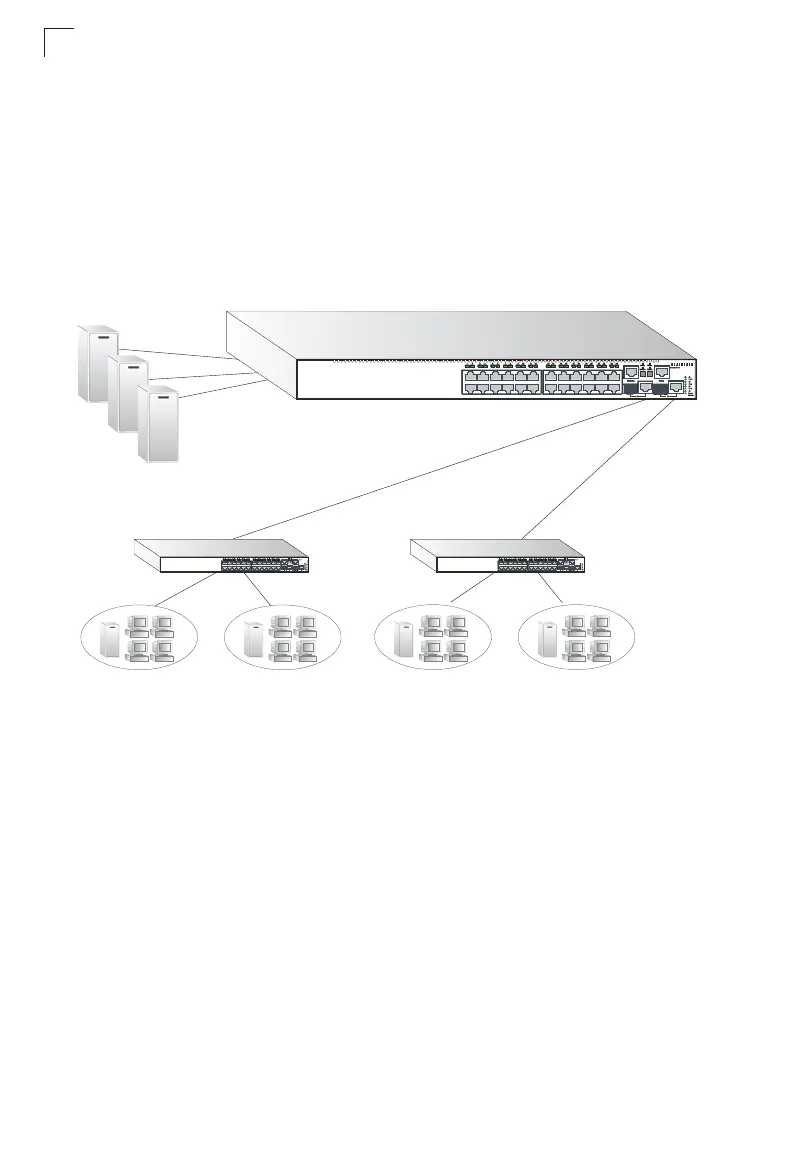

Figure 2-3 Remote Connections with Fiber Cable
...
...
Headquarters
1000BASE-LX SMF
(5 kilometers)
Remote Switch
10/100 Mbps Segments
1000BASE-LH SMF
(70 kilometers)
Remote Switch
Server Farm
