Installing the Switch
3-8
3
other units operate in slave mode. If more than one switch in the stack is
selected as Master, or if no switches are selected, the stack will not function.
Connecting to a Power Source
To connect a switch to a power source:
1. Insert the power cable plug directly into the AC receptacle located at the back
of the switch.

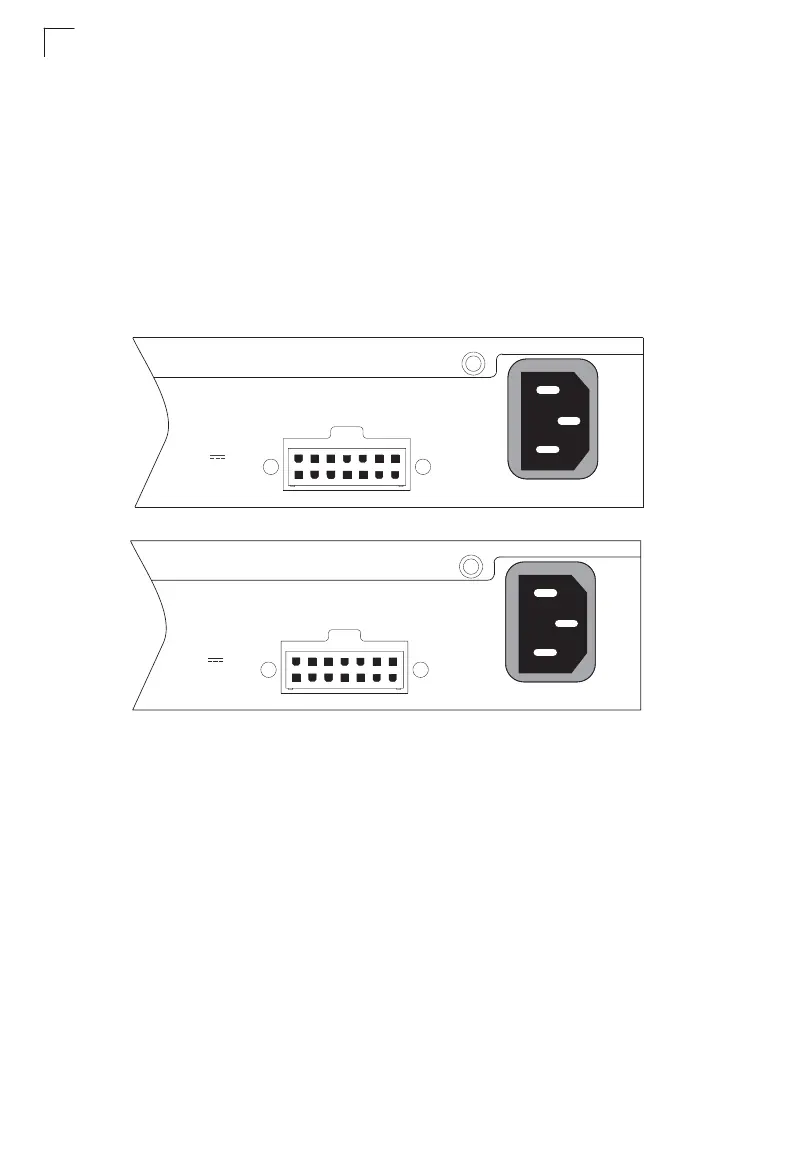

Figure 3-7 Power Receptacles
2. Plug the other end of the cable into a grounded, 3-pin, AC power source.
Note: For International use, you may need to change the AC line cord. You must
use a line cord set that has been approved for the receptacle type in your
country.
3. Check the front-panel LEDs as the device is powered on to be sure the PWR
LED is lit. If not, check that the power cable is correctly plugged in.
4. If you have purchased a Redundant Power Unit, connect it to the switch and to
an AC power source now, following the instructions included with the package.
100-240V~ 50-60Hz 1.5A
RPS
DC
12V 4.5A
ES3526YA
ES3550YA
100-240V~ 50-60Hz 2A
RPS
DC
12V 4.5A
