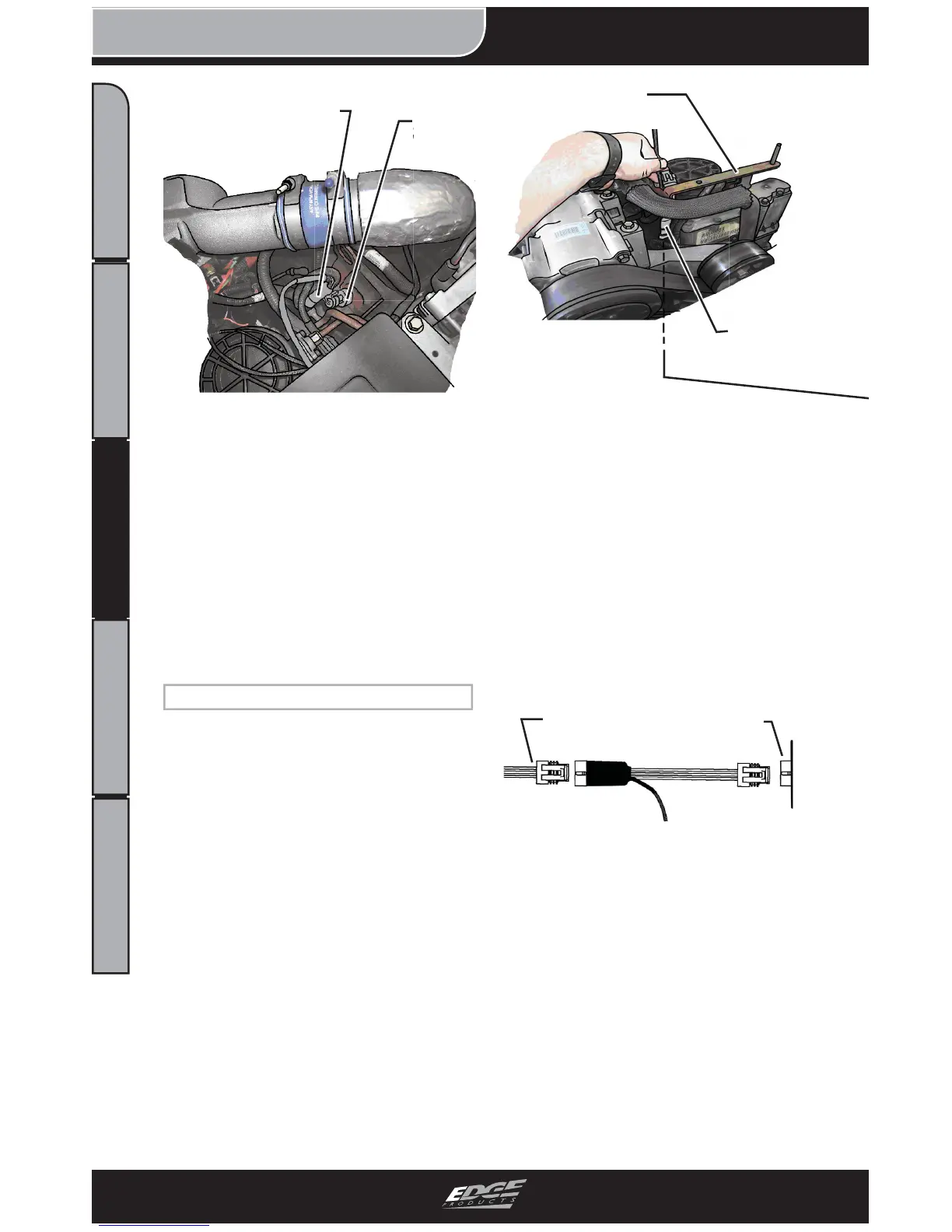

FIGURE 7 - ASSEMBLED VIEW
CAUTION: The ICP sensor
closely resembles the coolant
sensor which is located towards
the front of the engine. Figure
7 shows the proper location for
the ICP Sensor.
CMP SENSOR CONNECTION
The preferred method for rout-
ing the CMP harness is:
1. Remove the plastic “Power
Stroke” cover located on top of
the engine.
2. Route the CMP harness
across the top of the engine, and
down towards the bottom of the
engine as shown in Figure 8. (It
is best to route along side the
factory wiring harness)
FIGURE 8 - ROUTING VIEW
3. Refer to Figure 10. The
CMP sensor is located on the
front of the engine. Looking
“up” from underneath the truck,
it will be above and towards
the passenger side of the main
pulley.
FIGURE 9 - “T” ASSEMBLY
4. Once the CMP sensor is
located, and the Edge harness
plugged in, use zip ties to keep
all parts of the harness away
from the belt or other moving
parts.
(NOTE: Fasten the Edge
harness to the existing truck
ICP
Sensor
ICP Harness - Edge
