Installation Instructions
Ford Juice
NOTE: This connection is lo-
cated in front of the passenger
side of the engine compartment
(See Engine Compartment sec-
tion of this manual).

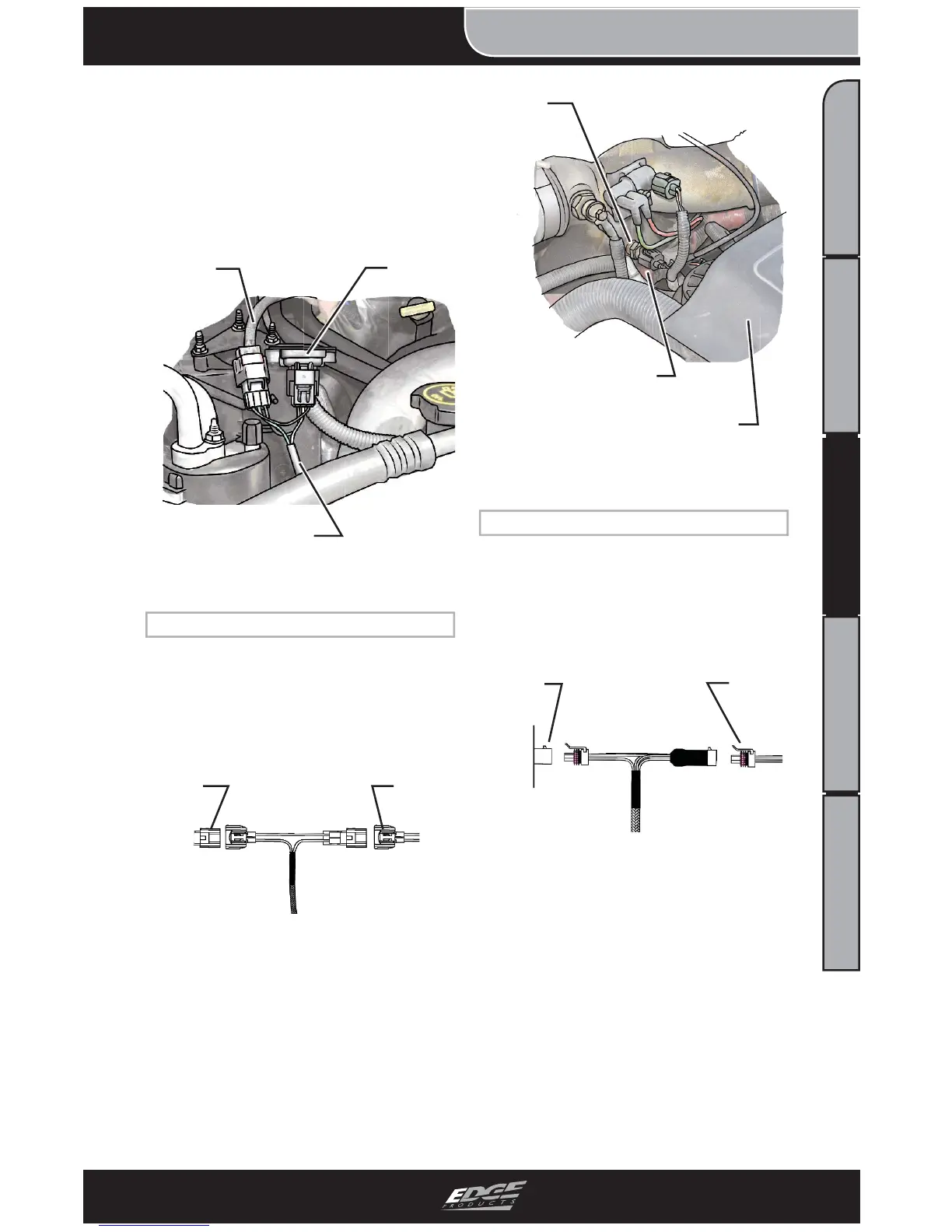

FIGURE 3 - ASSEMBLED VIEW
MAT SENSOR CONNECTION
1. Connect the MAT connec-
tors in between the stock har-
ness and the sensor as shown in
Figure 4.
FIGURE 4 - “T” ASSEMBLY
NOTE: This connection is
located in the middle of the of
the engine compartment, and
under the waste gate control
solenoid (See Engine Compart-
ment section of this manual).
FIGURE 5 - ASSEMBLED VIEW
ICP SENSOR CONNECTION
1. Connect the ICP connectors
in between the stock harness
and the sensor. See Figure 6.
FIGURE 6 - “T” ASSEMBLY
NOTE: This connection is
located in the middle of the
engine compartment, and to
the right of the MAT sensor
(Towards driver side).
Stock
Harness
MAP
Sensor
MAP Harness - Edge
