Installation Instructions
Ford Juice
harness to ensure the best rout-
ing path is taken. The metal
support for the plastic cover is
a convenient place to secure
the harness using a wire tie
(see Figure 8).

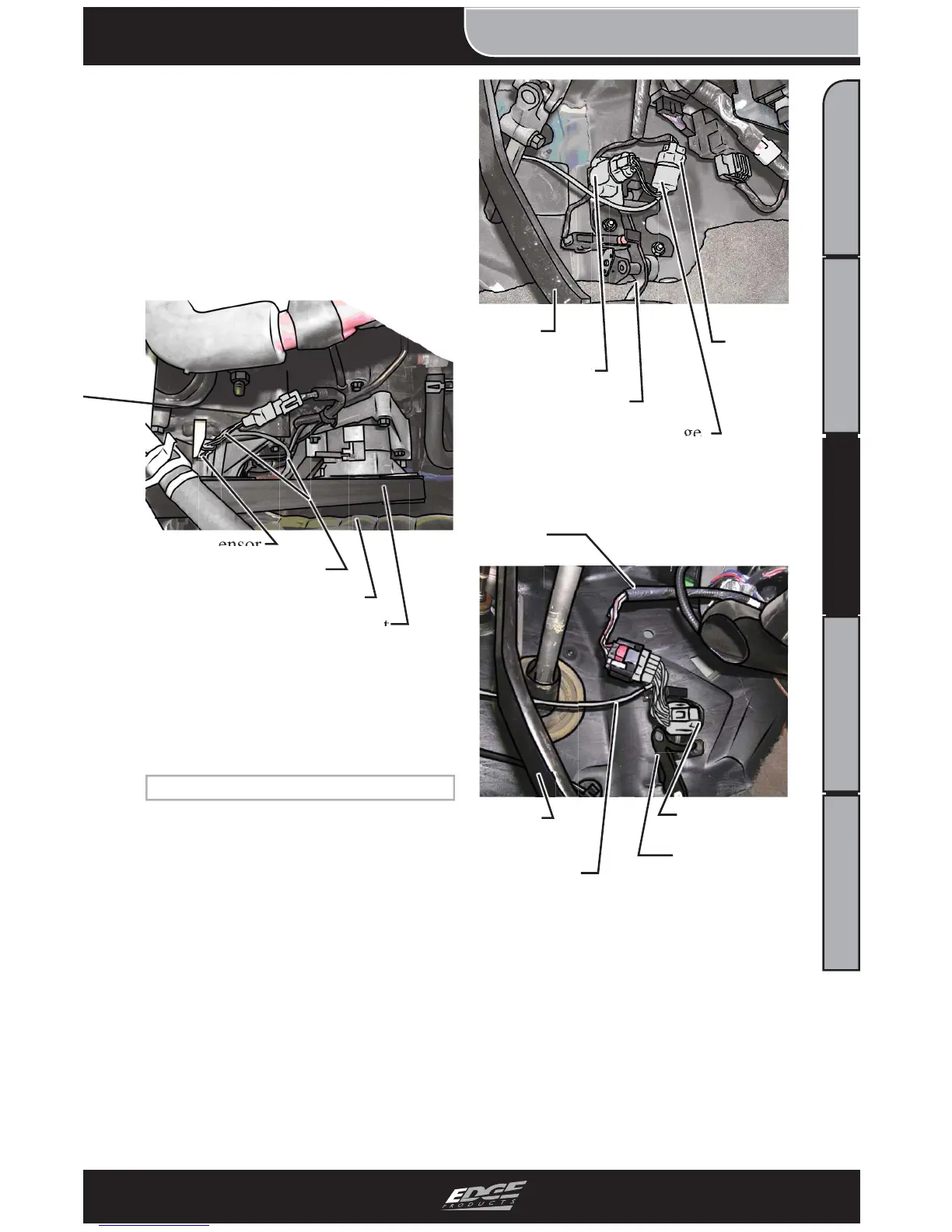

FIGURE 10 - ASSEMBLED VIEW
(LOOKING “UP” FROM
UNDERNEATH THE TRUCK)
TPS SENSOR CONNECTION
1. Using the information on
page 7, locate the TPS Sensor
harness that is specifi c to your
truck.
2. Locate the truck’s Throttle
Position Sensor (TPS) accord-
ing to Figures 11 and 12.
FIGURE 11 - 1999 to 2000
FIGURE 12 - 2001-2003
(NOTE: The views in Figures
11 and 12 are showing under-
neath the dash console near
the brake and accelerator ped-
als.)
