Technical Data
2.2 Electrical Data
2.3 Loading

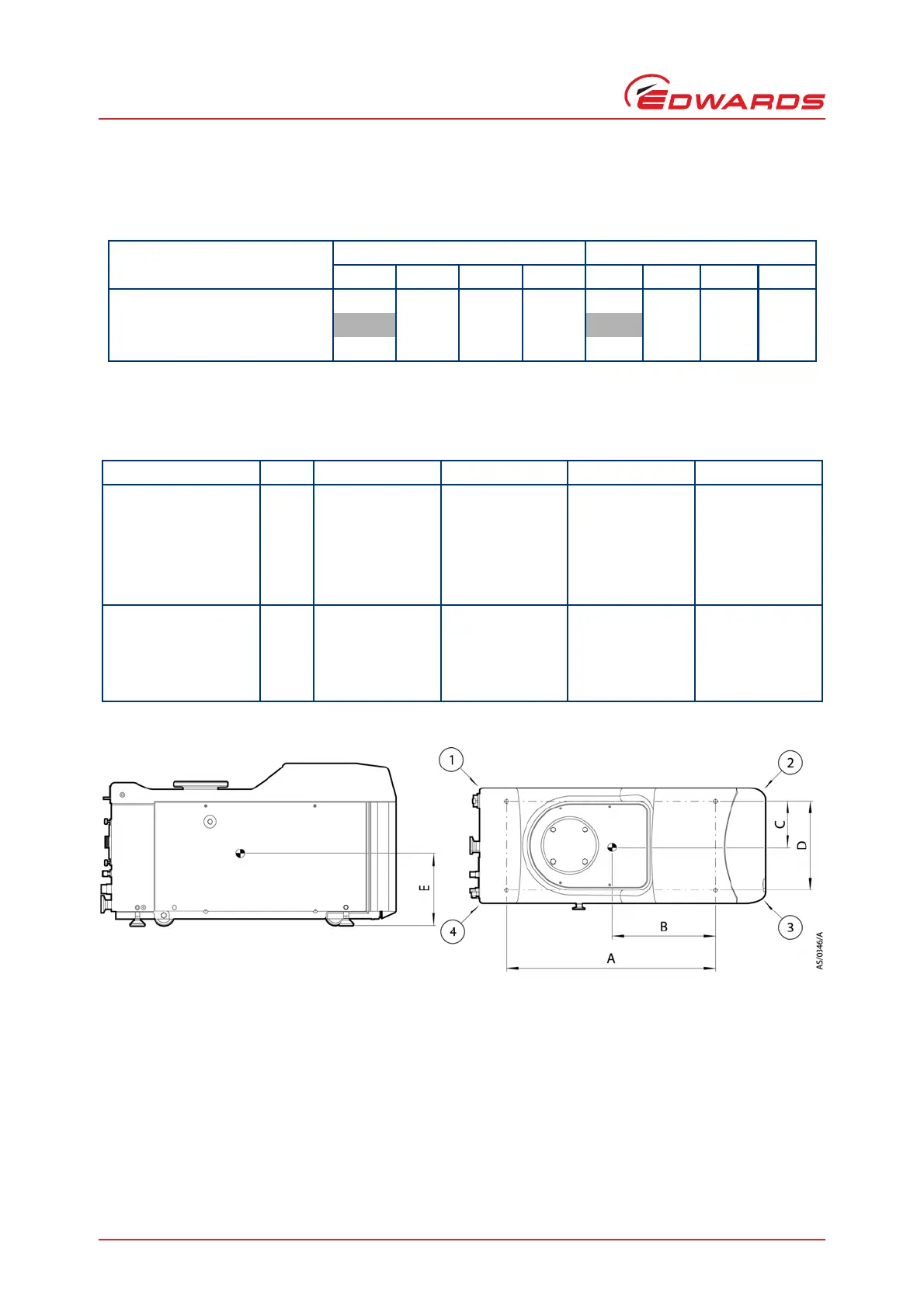

Figure 6 - Centre of gravity and levelling foot loads
Table 3 - Electrical data
Supply voltage and frequency
200/230 50/60 Hz 380/460 50/60Hz
100 300 600 1000 100 300 600 1000
Full load (A) 122222228141414
Booster motor rating (kW)
1.9 1.9 1.9 1.9 1.9 1.9
Pump motor rating (kW) 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9
Table 4 - Centre of gravity and levelling foot loads (Refer to Figure 6)
100 300 600 1000
Centre of gravity
A 510 510 510 510
B 246 266 243 243
C 103 107 108 108
D 216 216 216 216
E 167 287 311 310
Levelling foot loads
1 26 45 56 56
2 35 58 55 55
3 28 43 61 61
4 31 54 48 48
