Edwards nEXT85 - Motor Controller Functionality

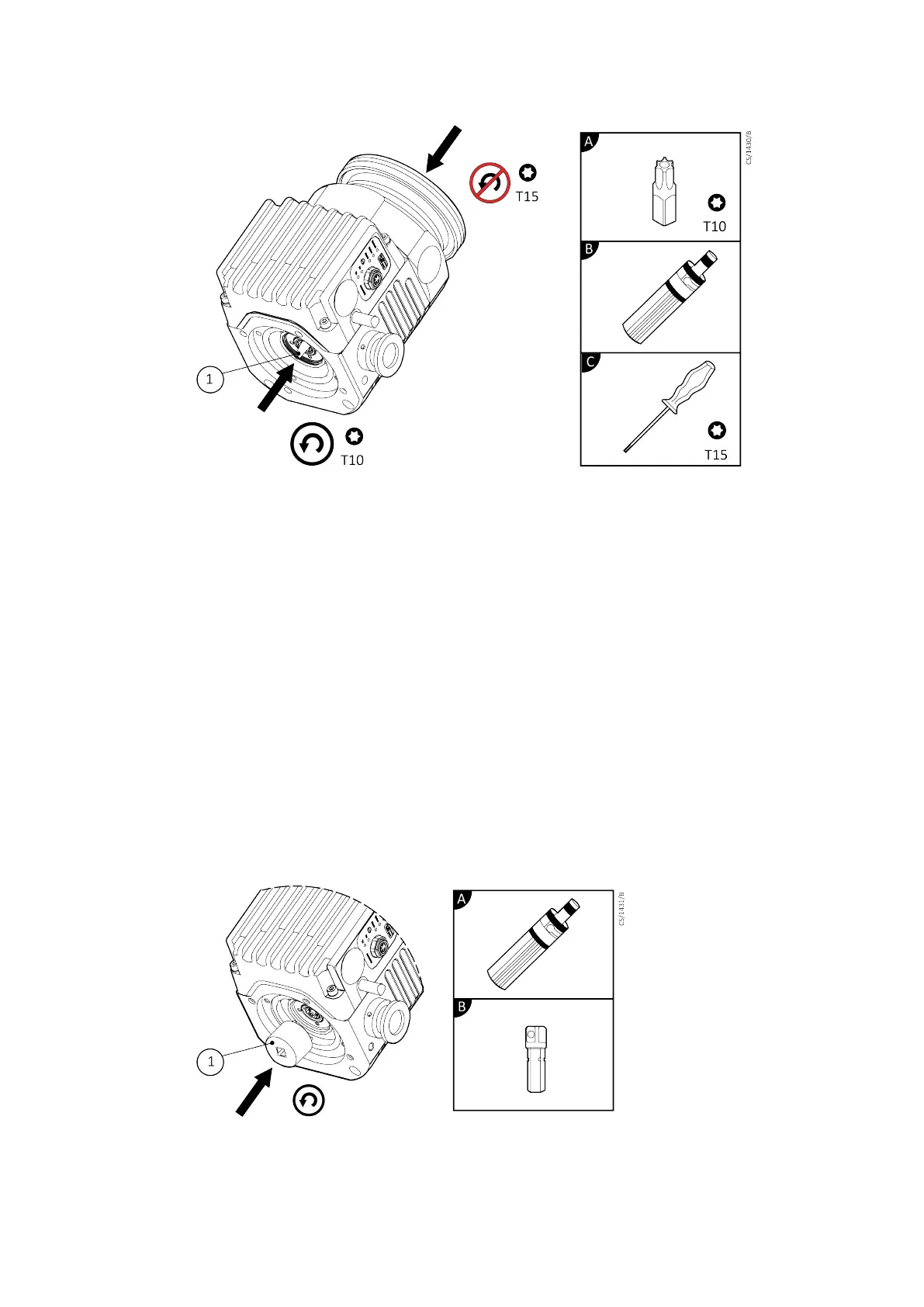

Figure 6
Oil feed nut removal
1. Oil feed nut
Tools
A. T10 Torx drive bit
B. Torque driver
C. T15 Torx screwdriver
Bearing retaining nut removal
Refer to Figure 7 on page 13.
1. Using the combinaon of tools, engage the pins of the pin spanner adaptor into the
pump bearing retaining nut.
2. While holding the pump body, undo and remove the bearing retaining nut.
3. Place the retaining nut in a dry clean place.
Figure 7
Bearing retaining nut removal
1. Pin spanner adaptor
B8G2-00-840A - Service
Page 13
