Edwards nEXT85 Original Instructions

Tools
A. Torque driver
B. ¼” square drive
Oil feed nut assembly
Refer to Figure 11 on page 16.
1. Screw the oil feed nut onto the end of the sha. This can be performed by hand.
2. Engage the T10 Torx bit with torque driver combinaon into the end of the oil feed
nut.
3. Engage the T15 Torx screwdriver through the end of the sha via the pump inlet.
4. While keeping the T15 Torx screwdriver staonary, torque the oil feed nut to 2 Nm.

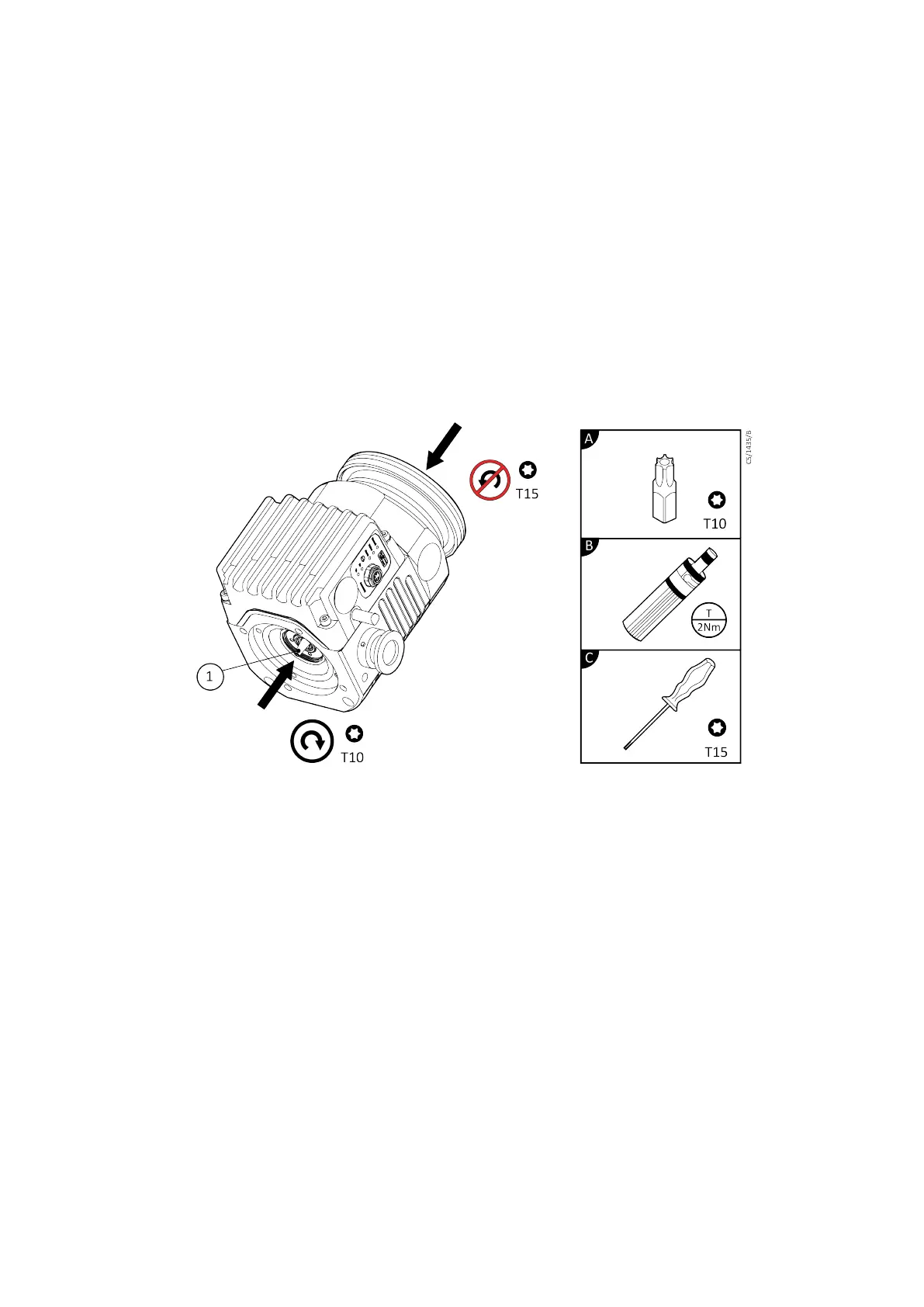

Figure 11
Oil feed nut assembly
1. Oil feed nut
Tools
A. T10 Torx bit
B. Torque driver
C. T15 Torx screwdriver
Oil cartridge assembly
Refer to Figure 12 on page 17.
1. Carefully remove the new oil cartridge from its packaging.
2. Fit the oil cartridge into posion while ensuring the xing screw holes and threads
are aligned.
3. Fasten the oil cartridge using the 4 x M4 buon head screws previously removed.
Evenly ghten each screw to 2 Nm.
B8G2-00-840A - Service
Page 16
