4.6 Test Parameters
This section details the various test parameter descriptions. For information on setting up test
sequences, refer to section 4.7. Setup Tests.

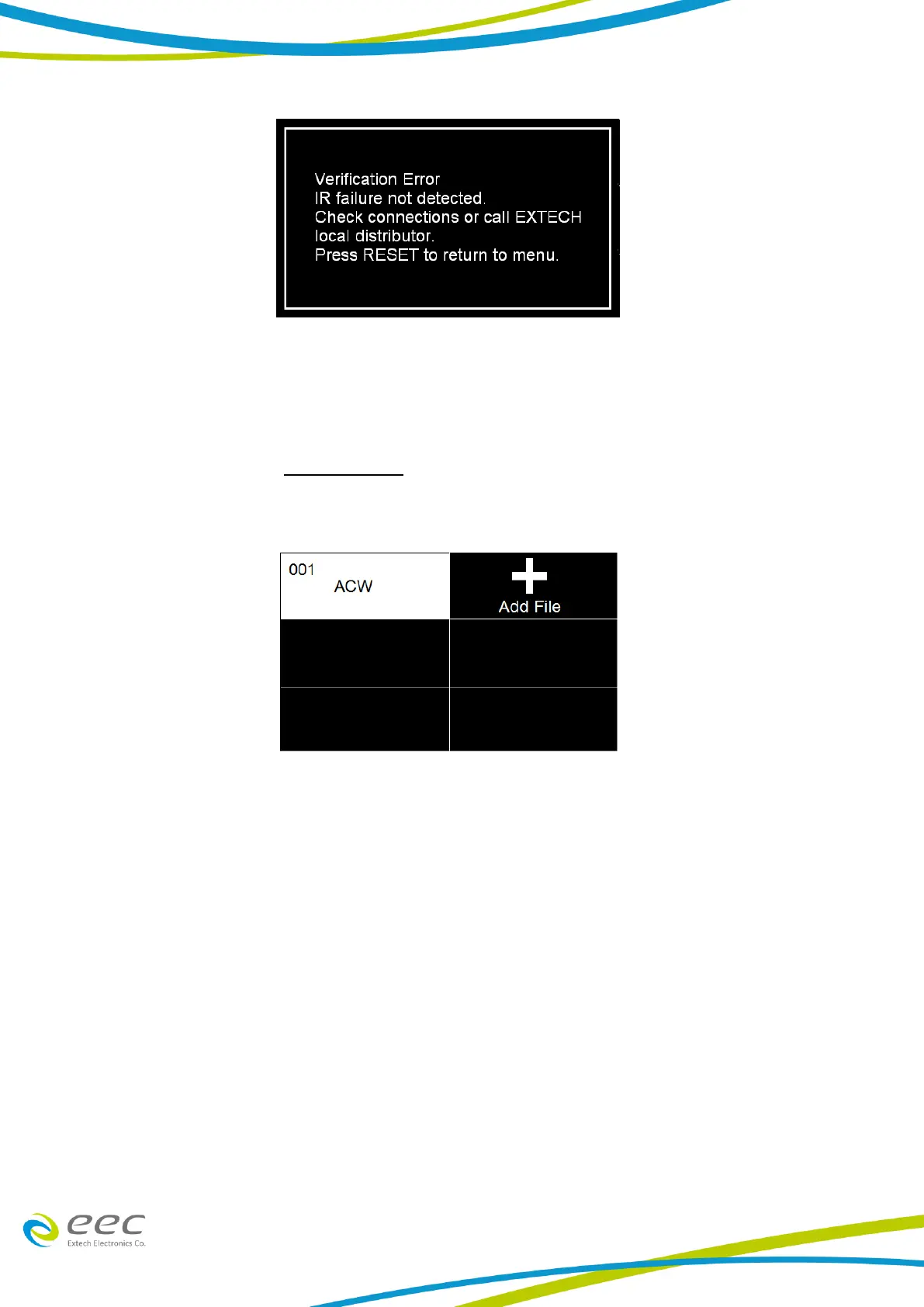

From the Main Menu select Setup Tests and the following screen will appear:
4.6.1 Description of Test Parameters
This section details each test parameter and test parameter description.
Test Type: Select the test item.
Voltage: The voltage that is applied to the high voltage and return terminals during a test.
Output Polarity (option): Select the output voltage is Negative or positive for DCW and IR.
Max Lmt T: ACW test only. Total current maximum limit. The maximum current threshold that
triggers a failure when exceeded.
Max Lmt R: ACW test only. Real current maximum limit. The maximum current or resistance
threshold that triggers a failure when exceeded.
Min Lmt T: ACW test only. Total current minimum limit. The minimum current or resistance
