efacec EFAPOWER EV PC G2 - Page 19

E F A P O W E R E V - PC - I N S T A L L A T I O N A N D U S E R M A N U A L
16 | 37
ETL MARKED UNITS:
▪ Two cable glands M32: one for each AC input (refer to Chapters 5.3.4.3 and 5.3.4.4)
▪ Cable gland M25 (for connections between central and satellite units): communication cable (refer to
Chapter 5.3.4.5)

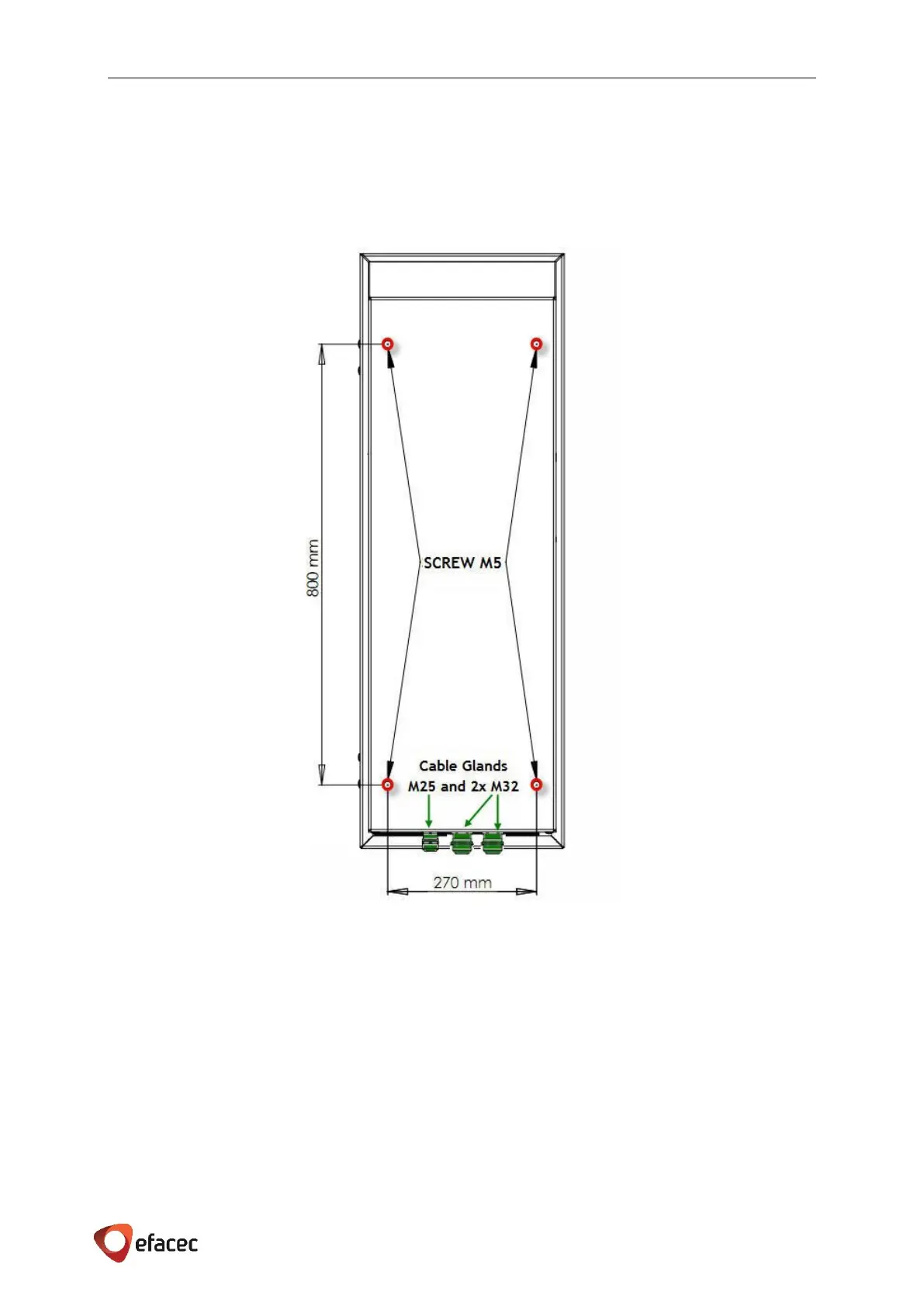

Figure 11 - EFAPOWER EV-PC UL Drilling and conduits Layout
