E F A P O W E R E V - PC - I N S T A L L A T I O N A N D U S E R M A N U A L
18 | 37
ETL MARKED UNITS:
▪ Two cable glands M32: one for each AC input (refer to Chapters 5.3.4.3 and 5.3.4.4)
▪ Cable gland M25 (for connections between central and satellite units): communication cable (refer to
Chapter 5.3.4.5)

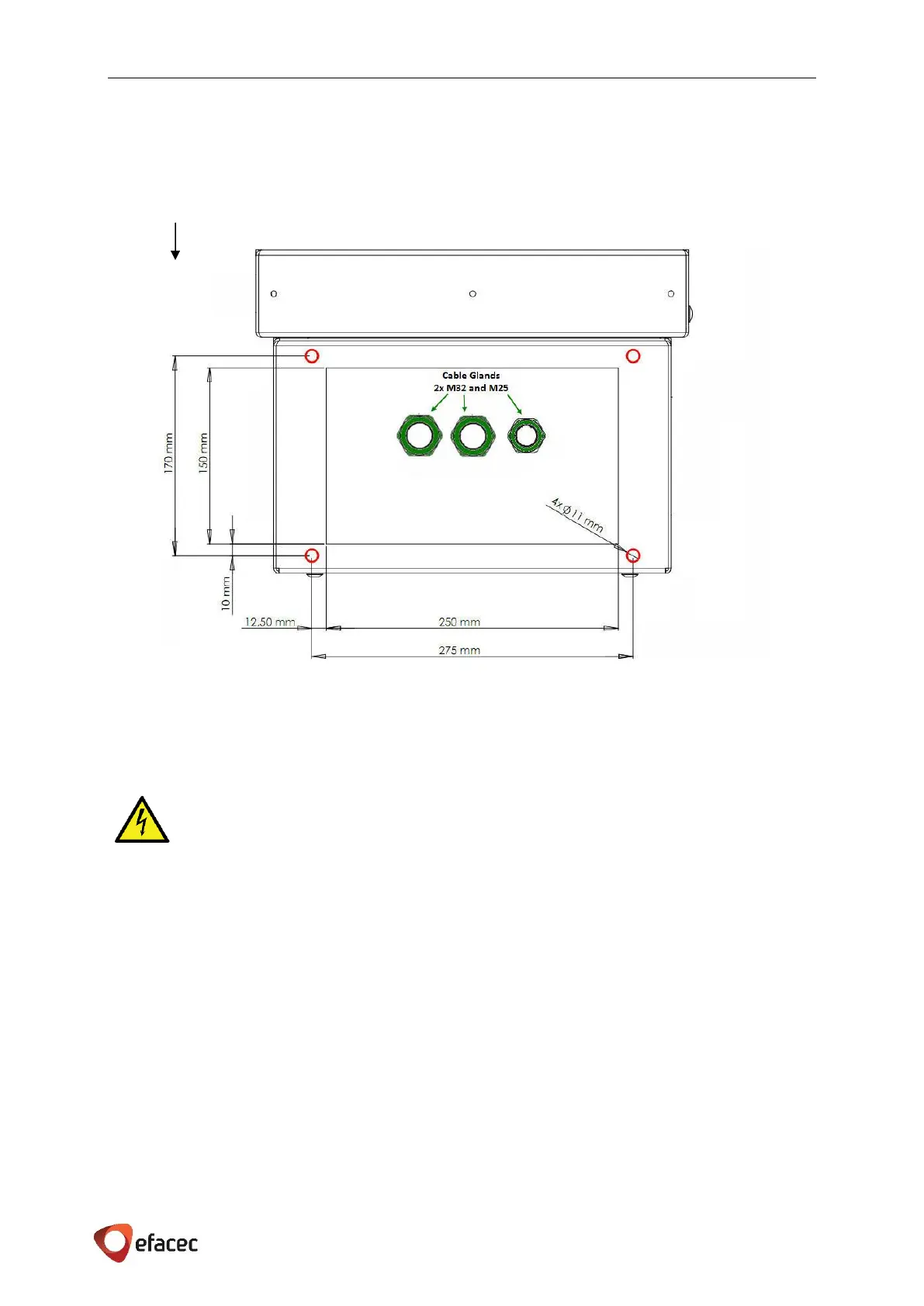

Figure 13 - EFAPOWER EV-PC UL with pedestal Drilling and conduits Layout
(bottom view)
5.3.4.3 POWER CABLES CONNECTION
EVERY OPERATION ON THE EFAPOWER EV-PC MUST BE EXECUTED BY QUALIFIED PERSONNEL AND PROPERLY
AUTHORIZED. DO NOT OPERATE IN CASE OF WATER PRESENT OR HUMIDITY.
BY OPENING THE DOOR OF THE EFAPOWER EV-PC STATION YOU RUN THE RISK OF EXPOSURE TO DANGEROUS
VOLTAGES!
TOUS LES SERVICES DOIVENT ETRE EFFECTUES UNIQUEMENT PAR DU PERSONNEL QUALIFIE. NE PAS TENTER DE REPARER
L’EFAPOWER EV-PC VOUS-MEME. NE PAS UTILISER EN CAS DE PRESENCE DE L 'EAU OU HUMIDITE.
EN OUVRANT LES PORTES DE L’EFAPOWER EV-PC VOUS COUREZ LE RISQUE D'EXPOSITION AUX TENSIONS DANGEREUSES!
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR ELECTRIC SHOCK
After unpacking and physically installing, the authorized technician must start installing the input cables.
Before connecting the EFAPOWER EV-AC Public Charger must be assured:
▪ The Grid Voltage level and frequency match the specifications on the EFAPOWER EV-PC technical
characteristics table;
▪ The Ground connection is assured in accordance with the harmonized standards or local regulation;
▪ The upstream protection is assured for the Central Unit.
To ensure protection to technicians during installation of the EFAPOWER EV-PC, please verify the connections
are completed according to the following conditions:
▪ There is no input Voltage (not connected to the Grid);
▪ No connection to Loads from the EFAPOWER EV-PC;
▪ The EFAPOWER EV-PC is OFF;
▪ Depending on the configuration of the EFAPOWER EV-PC, the unit may have different input feeds.
