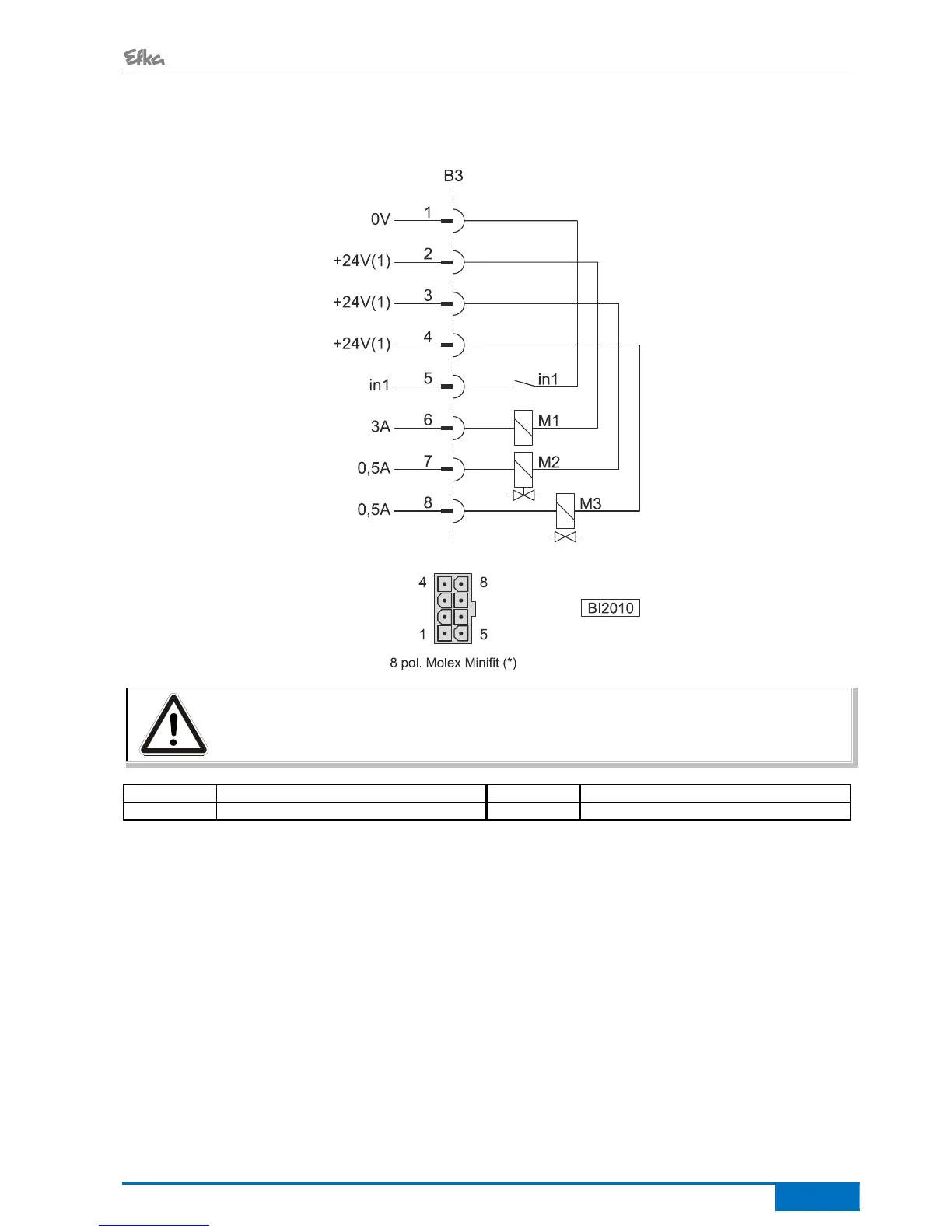

10.3 Connection Diagrams
Inputs switched to 0V
ATTENTION
When connecting the outputs, ensure that a total power of 96VA constant load will not be
exceeded!
in1
Input 1
M2
Output 2
M1
Output 1
M3
Output 3
1) Nominal voltage +24V, no-load voltage max. +30V momentarily after power on
*) Front view of the control (component side) and/or rear view of the outgoing connecting cable
