Efka AB600A5010 - Sensor Module and Encoder Connections

- AB600A5010 Parameter List
- 36 -

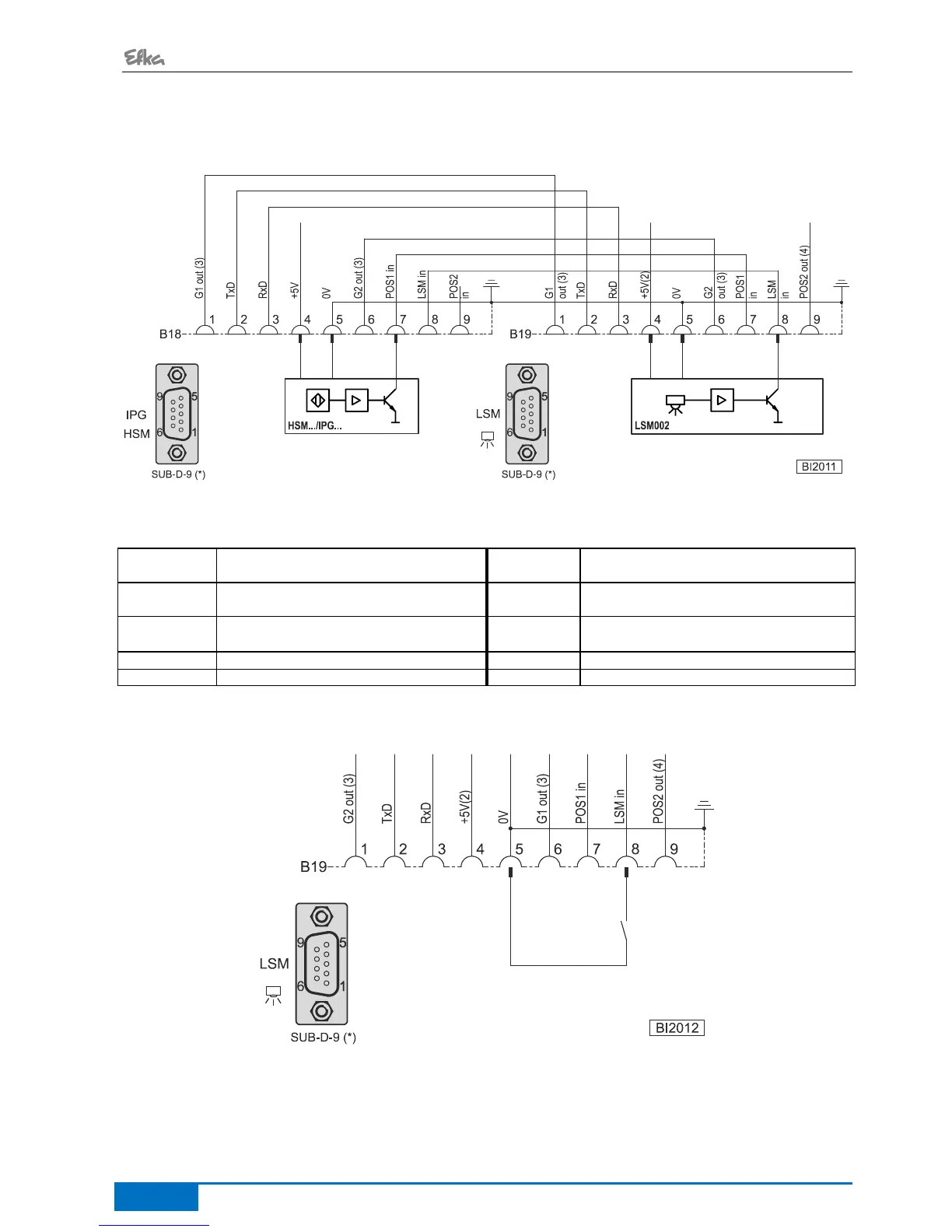

Connection of a HSM001 Hall sensor module or
an IPG001 pulse encoder
Connection of a light barrier module
LSM002
Adapter cord 1113229 in case of multiple assignment of socket B18!
POS2 OUT
Output for position 2
LSM IN
Possibility of connecting a light barrier
module
POS1 IN
Input for position 1 (e. g. connection of
a sensor)
LSM002
Reflection light barrier module
POS2 IN
Input for position 2 (e. g. connection of
a sensor)
HSM001
Hall sensor module
G1/G2 OUT
Output of generator impulses
IPG...
Pulse encoder
TXD/RXD
Serial transmission lines
If parameter 239 is set to >0, it is possible to operate a key at the input of the B19/8 connector.
There is a supply voltage of +5V on the B18/4 socket for external devices. This voltage can be switched to +15V
using parameter 362.
2) Nominal voltage +5 V, Imax 100 mA (switchable to +15 V, 100 mA)
3) Logic level output +5 V, Imax 5 mA
*) Front view of the control (component side) / rear view of the outgoing connecting cable
