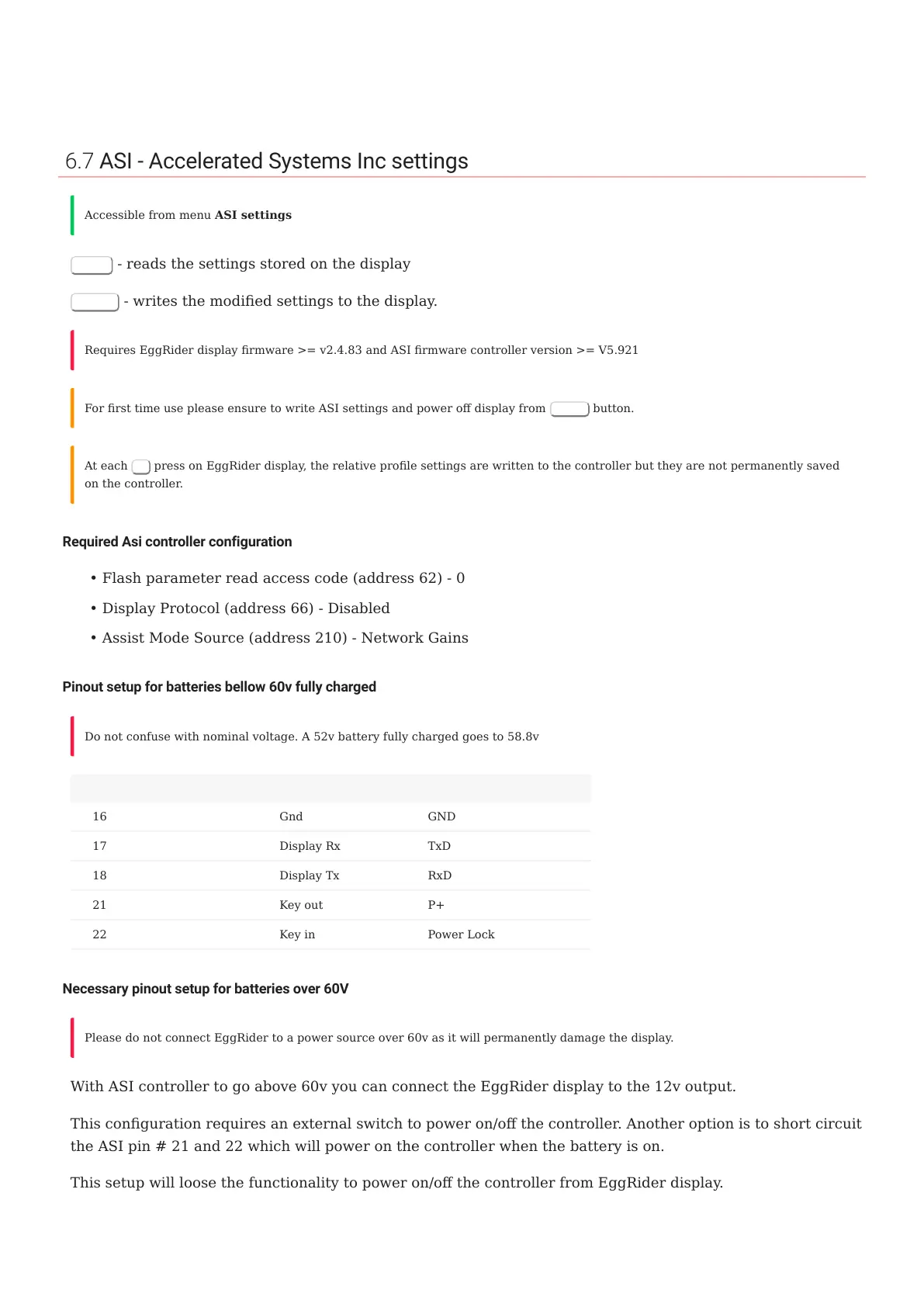

6.7 ASI - Accelerated Systems Inc settings
Read
- reads the settings stored on the display
Write
- writes the modied settings to the display.
Required Asi controller configuration
Flash parameter read access code (address 62) - 0
Display Protocol (address 66) - Disabled
Assist Mode Source (address 210) - Network Gains
Pinout setup for batteries bellow 60v fully charged
Necessary pinout setup for batteries over 60V
With ASI controller to go above 60v you can connect the EggRider display to the 12v output.
This conguration requires an external switch to power on/o the controller. Another option is to short circuit
the ASI pin # 21 and 22 which will power on the controller when the battery is on.
This setup will loose the functionality to power on/o the controller from EggRider display.
Accessible from menu ASI settings
Requires EggRider display rmware >= v2.4.83 and ASI rmware controller version >= V5.921
For rst time use please ensure to write ASI settings and power o display from
Power
button.
At each
M
press on EggRider display, the relative prole settings are written to the controller but they are not permanently saved
on the controller.
•
•
•
Do not confuse with nominal voltage. A 52v battery fully charged goes to 58.8v
ASI BAC500/800 pin # ASI pin function EggRider pin function
16 Gnd GND
17 Display Rx TxD
18 Display Tx RxD
21 Key out P+
22 Key in Power Lock
Please do not connect EggRider to a power source over 60v as it will permanently damage the display.
6.7 ASI - Accelerated Systems Inc settings
