10
Cable Connections
The following figure shows cable connections required for TV and other related
electrical equipment.

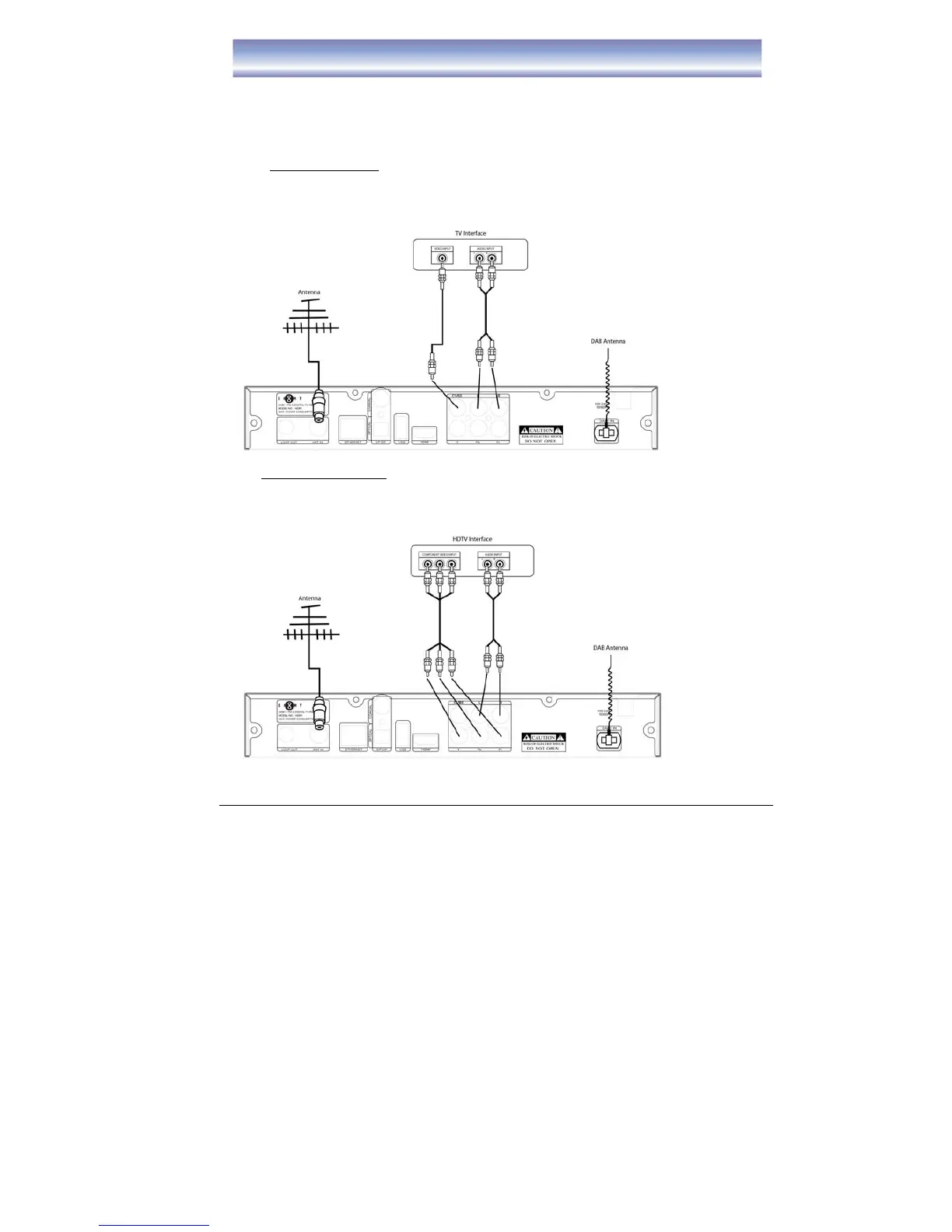

Connection Diagram:
A) Basic Connections
1. Connect the antenna with ANT IN on the unit.
2. Connect the DAB antenna with DAB+ IN on the unit.
3. Connect the unit via CVBS and AUDIO L/R.
B) Connect YPbPr Ports
1. Connect the antenna with ANT IN on the unit.
2. Connect the DAB antenna with DAB+ IN on the unit.
3. Connect the unit to TV via YPbPr cable as the following figure.
