Chapter 1
Introduction
●
Rear
5
7
6
3
109 11
8
4
12 14
13
6

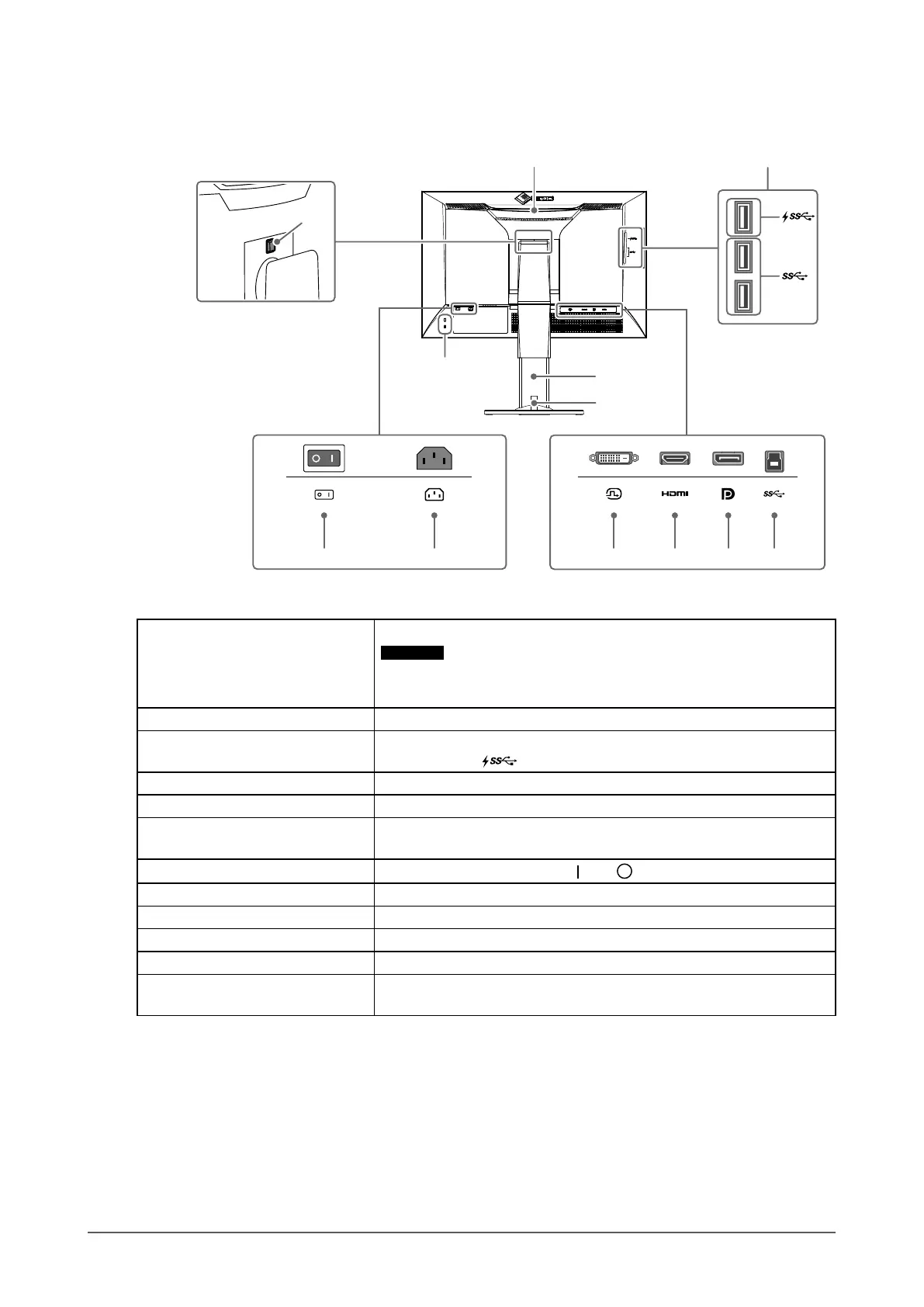

3. Transportation handle This handle is used for transportation.
Attention
• Firmly grasp and hold the monitor by the bottom while grabbing the
handle, and carefully convey the monitor so as not to drop it.
4. Lock button Use this button when removing the stand from the monitor.
5. USB Type-A connector
(USB downstream port)
Connects to a peripheral USB device. Supports USB 3.1. The
"CHARGE" port
supports quick recharging (page 23).
6. Security lock slot Complies with Kensington's MicroSaver security system.
7. Stand
*1
Adjusts the height and angle (tilt and swivel) of the monitor.
8. Cable holder Covers the monitor cables. For details on attaching the cable holder, see
“6-3. Attaching/Detaching the Cable Holder” (page 32).
9. Main power switch
Turns the main power on or off.
: On, : Off
10. Power connector Connects the power cord.
11. DVI connector Connects to an external device that has DVI output.
12. HDMI connector Connects to an external device that has HDMI output.
13. DisplayPort connector Connects to an external device that has DisplayPort output.
14. USB Type-B connector
(USB upstream port)
Connects to the USB cable when using software that requires a USB
connection, or when using the USB Hub function.
*1 An optional arm (or an optional stand) can be attached by removing the stand section (refer to “6-2.
Attaching the Optional Arm” (page 31)).
