Chapter 1 Overview and Features

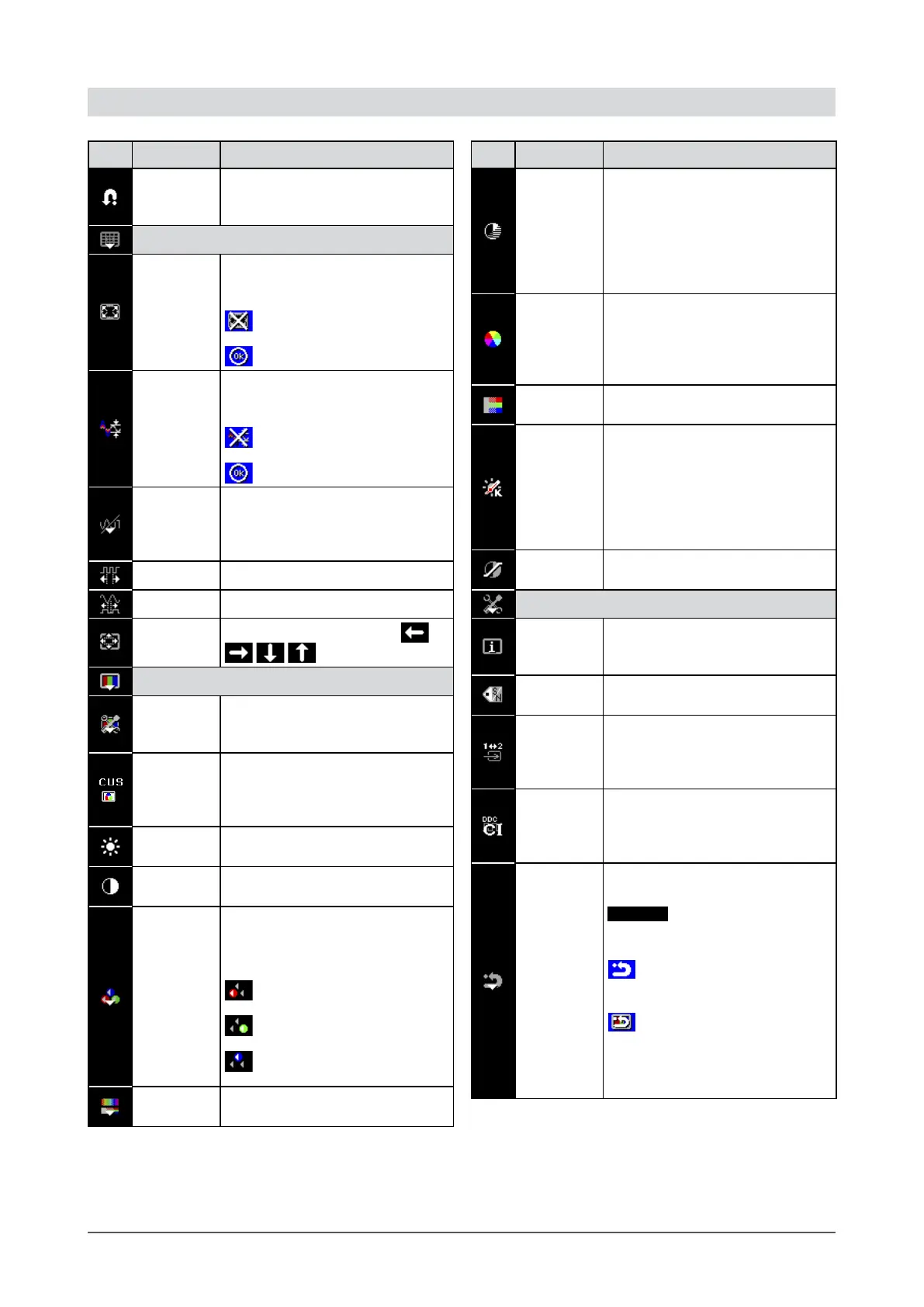

Adjustment menu icon list
Icon Function Overview
—
Determines the setting. Selecting
the icon repeatedly allows you to
close the adjustment menu.
Analog
AutoSize
Flickering, screen position,
and screen size are adjusted
automatically.
Returns to the pre-adjusted
status.
Determines the adjustment.
AutoRange
Every color gradation (0 to 255) can
be displayed by adjusting the signal
output level.
Returns to the pre-adjusted
status.
Determines the adjustment.
Manual
Performs advanced adjustment
when the automatic adjustment fails.
The adjustments for clock, phase
and position proceed in this order.
Clock Eliminates vertical bars.
Phase Removes ickering or blurring.
Position
Correct screen position with
.
Color
Color Menu
Independent setting and saving of
color adjustment are available for
each FineContrast mode.
Mode
*
Selects the best display mode easily
according to monitor’s application.
Each time you press the button, the
mode is switched.
Brightness
Adjusts the screen brightness.
Adjustable range: 0 to 100%
Contrast
Adjusts the contrast.
Adjustable range: 0 to 100%
Gain
Determines the mixing rate of red,
green and blue, and adjust the color
tone.
Adjustable range: 0 to 100%
Allows you to determine the
mixing rate of red.
Allows you to determine the
mixing rate of green.
Allows you to determine the
mixing rate of blue.
Advanced
Adjusts each function of hue,
saturation and contrast enhancer.
Icon Function Overview
Cont
Enhancer
Reproduces images with a taste
of contrast by compensating the
gamma value as well as controlling
the backlight brightness and the
gain level according to the image
status. The Enable/Disable setting is
toggled by selecting the icon.
Hue
Adjusts the hue. If you set the hue
to a high value, the image turns
greenish. If low, the image turns
purplish.
Adjustable range: -100 to 100
Saturation
Adjusts the color saturation.
Adjustable range: -100 to 100
Temperature
Adjusts the color temperature. The
gain preset values are set for each
color temperature setting value.
Adjustable range: Native,
4000K-10000K (specied by every
500K unit, including 9300K), User (at
gain adjustment)
Gamma
Adjusts the gamma value.
Adjustable range: 1.8, 2.0, 2.2
Tool
Info1
Displays the input signal status
(analog/digital), resolution, H/V
frequency.
Info2
Displays the model name, usage
time and serial number.
Input Signal
Sets to detect the input signal
automatically. The Enable/Disable
setting is toggled by selecting the
icon.
DDC/CI
Sets enable/disable the DDC/CI
communication. The Enable/Disable
setting is toggled by selecting the
icon.
Reset
Resets the adjustment values to the
factory settings.
Attention
• After resetting, you cannot undo the
operation.
All : Resets all adjustments to
the default settings (factory
settings).
Color (CUS
*
) : Only the
adjustment values in the
current FineContrast mode will
revert to the default settings
(factory settings).
* Current FineContrast mode is displayed.

Eizo FlexScan S1932 Specifications

General

Pixel pitch	0.294 x 0.294 mm
Response time	8 ms
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Digital vertical frequency	59 - 61 Hz
Digital horizontal frequency	31 - 64 kHz
Display brightness (typical)	250 cd/m²
HDCP	Yes
DVI-I ports quantity	-
USB Type-A downstream ports quantity	0
Power consumption (typical)	45 W
Product color	Gray

Weight and Dimensions

Depth (with stand)	205 mm
Height (with stand)	506 mm
Weight (with stand)	7200 g
Depth (without stand)	62 mm
Width (without stand)	405 mm
Height (without stand)	334 mm
Weight (without stand)	5200 g
