Chapter5ConnectingCables
Chapter 5 Connecting Cables
5-1. Connecting Multiple PCs
The product has multiple connections to PCs and allows you to switch to one of the connections for display.
Attention
• It is assumed the touch panel monitor will be used with one computer. When the monitor is to be connected to multiple
computers, connect a USB cable (MD-C93) to the computer used for touch operation (one unit only).
• Do not use dual link cables.

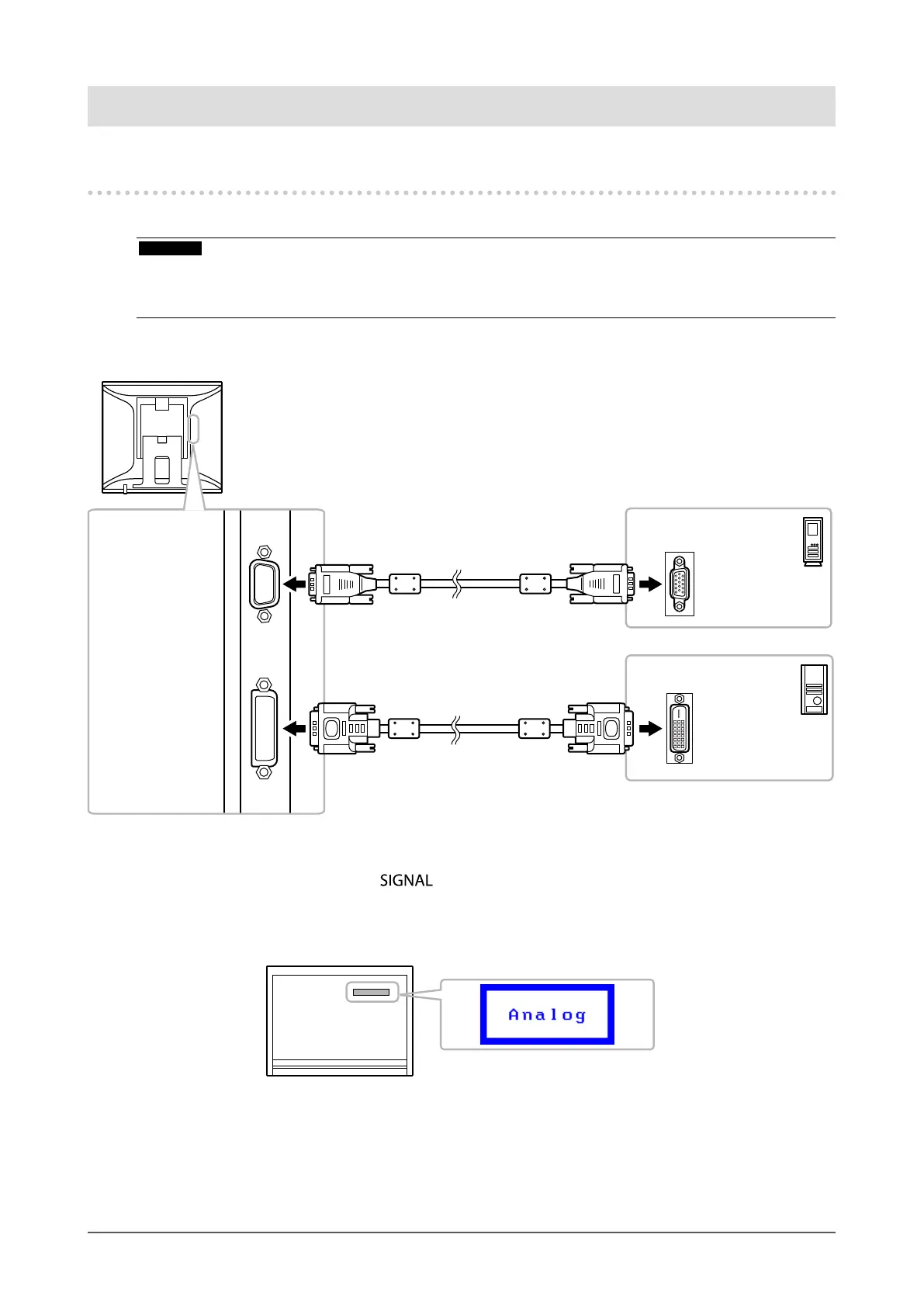

Connection examples
D-Submini
15-pinconnector
DVIconnector
Signalcable
(suppliedFD-C39)
Signalcable
(suppliedMD-C87)
D-Subconnector
ToPC1
DVI-Dconnector
ToPC2
Digital
(DVI)
Analog
●
To switch among input signals
The input signal switches each time is pressed.
When the signal is switched, the active input port name appears at the top right corner of the screen.
When the signal is switched, the active signal type (Analog or Digital) appears at the top right corner of the
screen for three seconds.
