elco EKEVO 6 G-E - Description of Double Gas Valve MBC

05/2019 - Art. Nr. 4200 1043 1803F 35
en
Gas train components
Description of double gas valve MBC... (gas multiblock)
The MBC...SE gasmultibloc integrates
the filter, valves and servo pressure
regulator into one compact fitting:
- Dirt trap: fine filter (MBC-300-1200
only)
- 2 solenoid valves up to 360 mbar in
accordance with DIN EN 161 Class A
Group 2 fast-closing, fast-opening
(MBC-300-1200)
- 2 solenoid valves up to 500 mbar in
accordance with DIN EN 161 Class A
Group 2 fast-closing, fast-opening
(MBC-300-1200)
- Servo-pressure regulation
component in accordance with DIN
EN 88 Class A Group 2, EN 12067-1
- Outlet pressure: 0 - 300 mbar (MBC-
300-1200), 4 - 300 mbar (MBC-1900-
5000)
- Sensitive adjustment of the outlet
pressure with the SE version for
optimum outlet pressure sensitivity
- Sensitive adjustment of the gas and
air pressure ratio with the VEF version
- Flanged connections with pipe
threads in accordance with ISO 7/1 or
NPT (MBC-300-1200)
- Flanged connections in accordance
with EN 1097-1 / ISO 7005 (MBC-
1900-7000)
1, 2, 3
Seal plug G 1/8
4, 5, optional
Connection drilled hole for system
accessories (optional)
6, 7
Seal plug G 1/4
8, 9, optional
Seal plug G 1/2 (optional)
10
Impulse line p
Br
(integrated)
11
Breather plug G 1/8
Technical data
Gas multiblock MBC-.../SE:
Type of gas:
Gases in accordance with DVGW
worksheet
G 260/1, gas families 1, 2, 3
Electrical data:
230 V -15% + 10%, other
voltages on request 50...60 Hz
Protection level: IP 54
Ambient temperature:
-15C to +60C
Installation position:
MBC-300-1200: magnet vertically
upright or magnet horizontal
MBC-1900-7000: magnet vertically
upright
Max. operating pressure:
MBC-300-1200: 360 mbar
MBC-1900-7000: 500 mbar

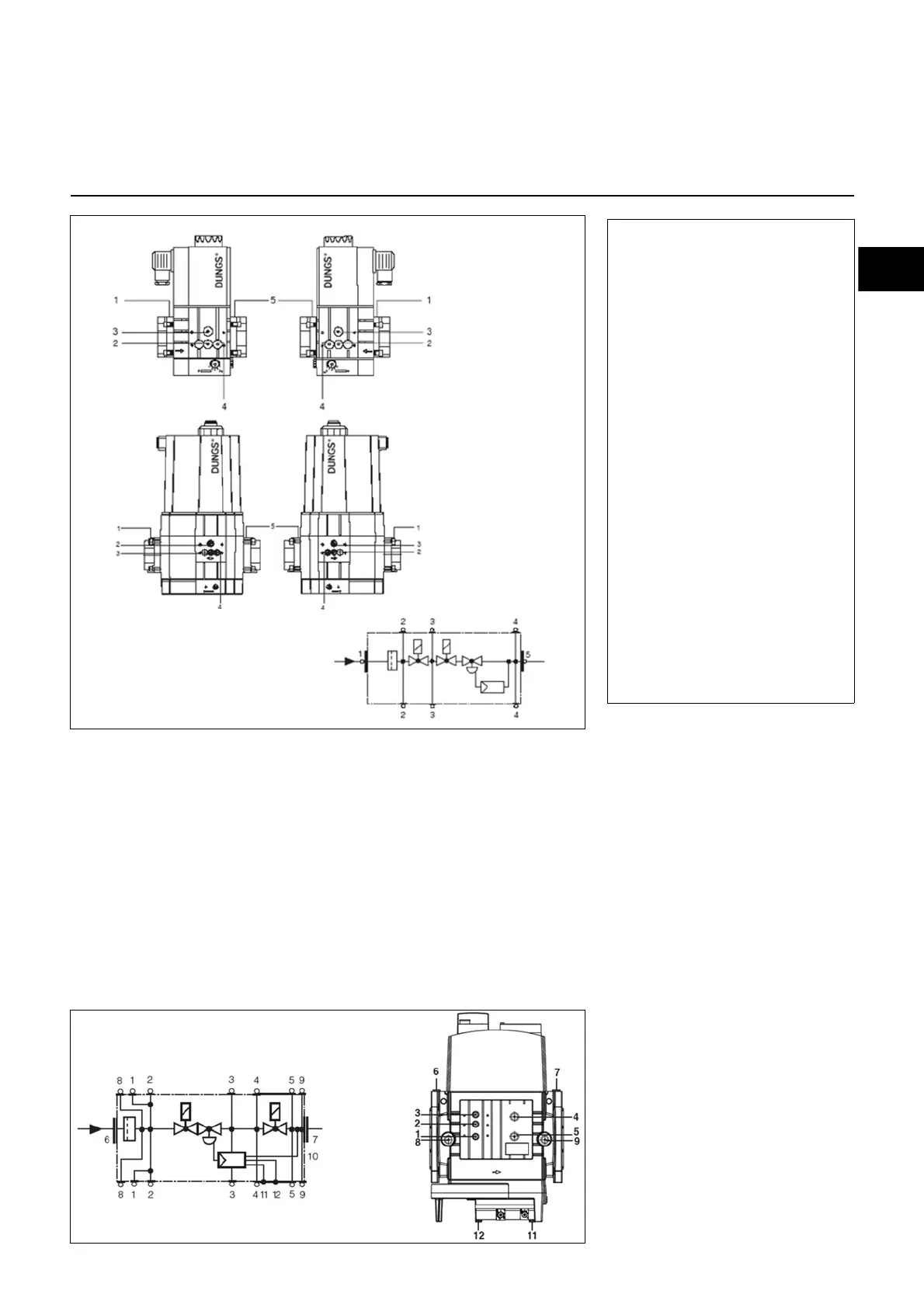

Pressure taps
MBC-300/
700...
MBC-1200...
Pressure taps
MBC-...-SE 1900-7000
1, 2, 3, 4, 5
Seal plug G 1/8...
