05/2019 - Art. Nr. 4200 1043 1803F4

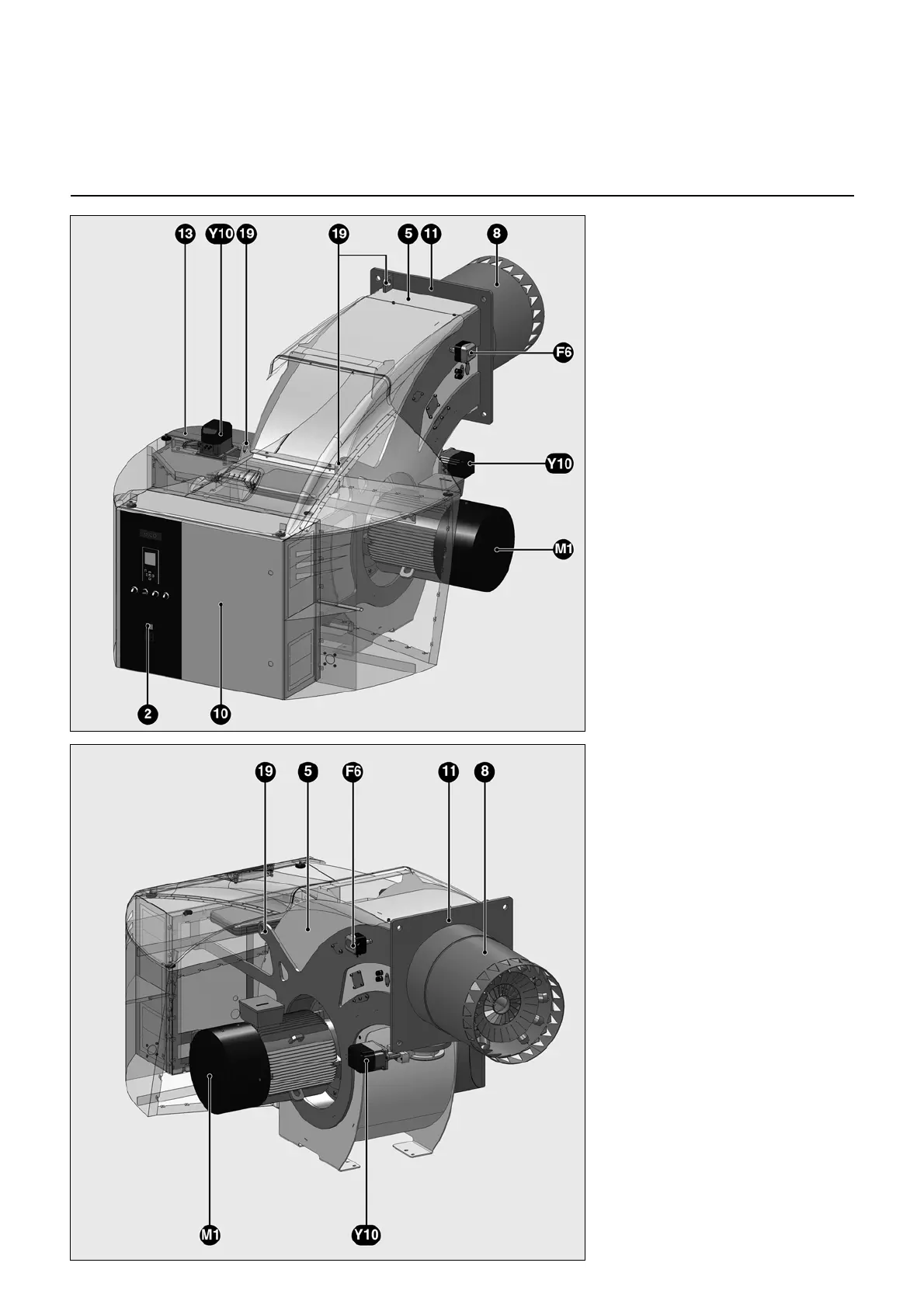

2 Power controller (option)
5Casing
8 Burner tube
10 Integrated switch cabinet
11 Burner flange
13 Air box
19 Lifting rings (underneath the metal
cover for the N8 burner)
F6 Air pressure switch
M1 Electric motor
Y10 Servomotor for air and/or gas flaps
Note:
The construction principle for N6 - N9
GE, GEU2, GEU2N, GEU3 and GEF3
burners is largely identical. To provide
an example, only the scenario with
burner N9 GEU3 is shown on this page.
* - only on the N8/N9
General information
N6/N7/N8/N9
Burner description
