General information
EKEVO 6/EKEVO 7/EKEVO 8/EKEVO 9

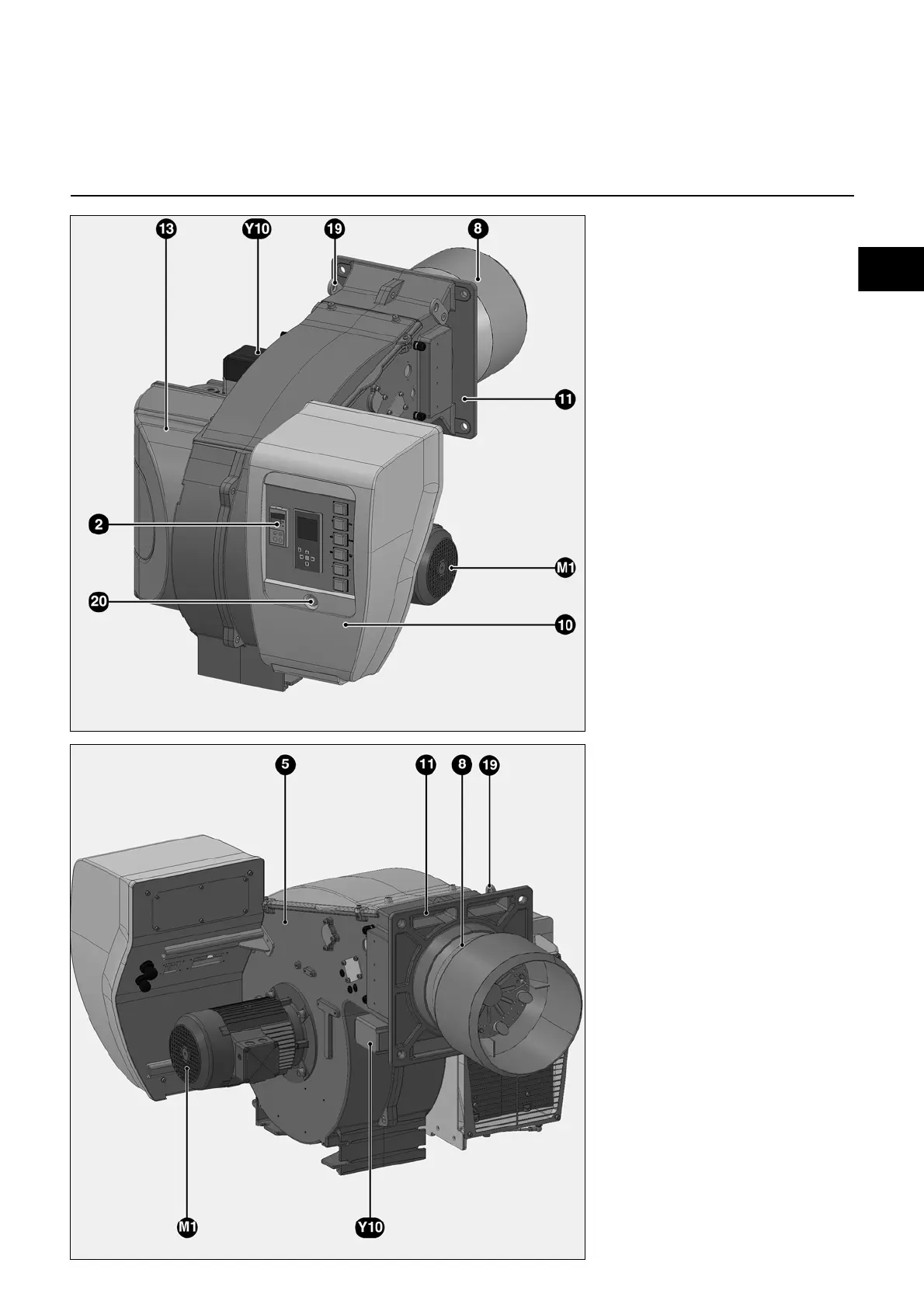

Burner description
2 Power controller (option)
5Casing
8 Burner tube
10 Integrated switch cabinet
11 Burner flange
13 Air box
19 Lifting rings
20 Fastening screw/cover of switch
cabinet
F6 Air pressure switch
M1 Electric motor
Y10 Servomotor for air and/or gas flaps
Note:
The construction principle for EKEVO 6
- EKEVO 9 GE, GEU2, GEU2N, GEU3
and GEF3 burners is largely identical.
To provide an example, only the
scenario with burner EKEVO 6 G-E is
shown on this page.
To Next Page
