● TEST IO: allows testing operation of the circuit boards on the device;
● RESOURCES: allows testing of the standard peripherals of the device and
configuration of the device itself;
● DATE / TIME: allows to change date and time of the system;
CONFIGURATION

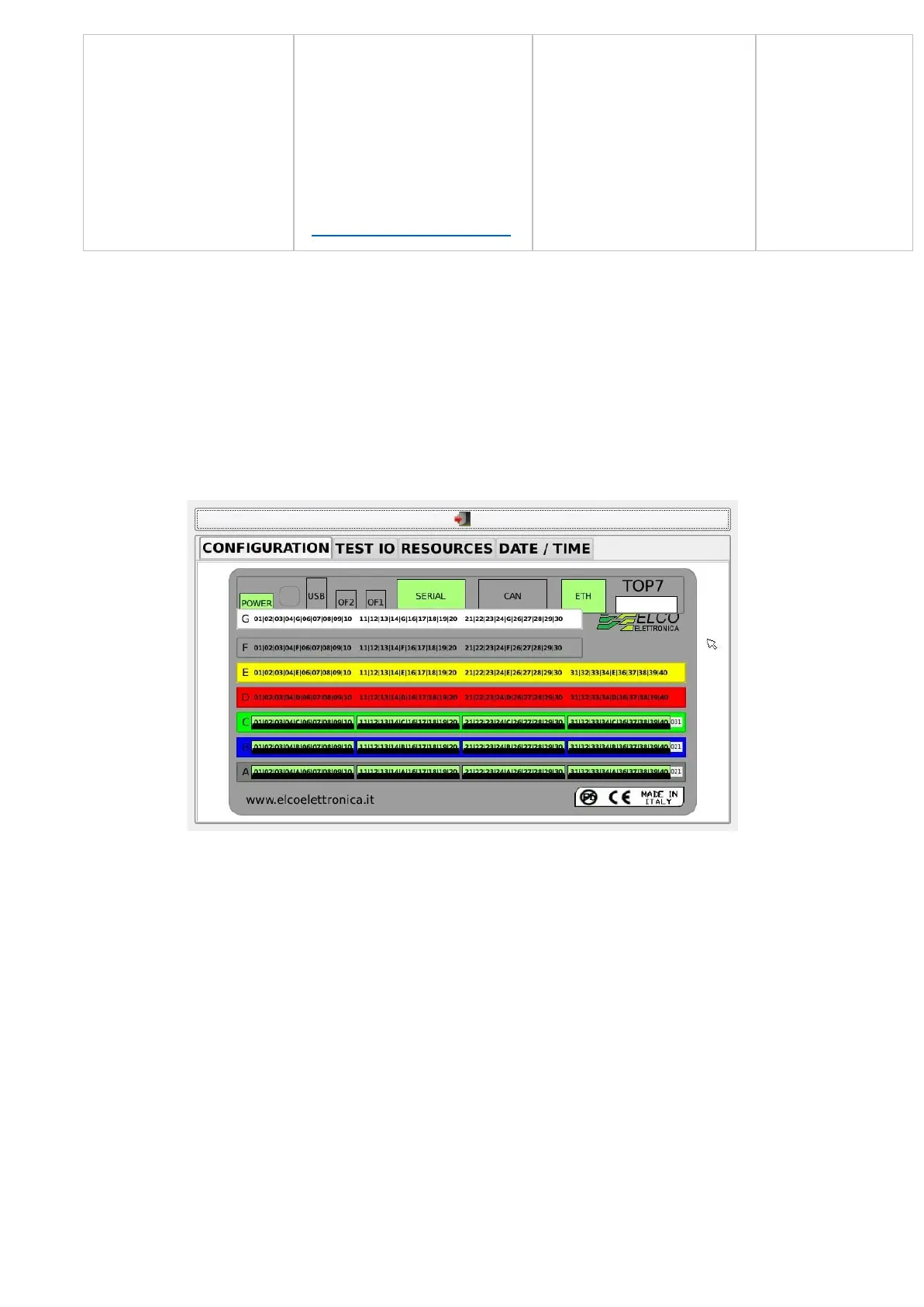

The environment displays information of the circuit boards on the device
The components of the power supply board / COM present are displayed in green.
Circuit boards correctly detected in their slots are marked by a black line.
You can view the information of a circuit board on the device screen by pressing the
corresponding slot.
