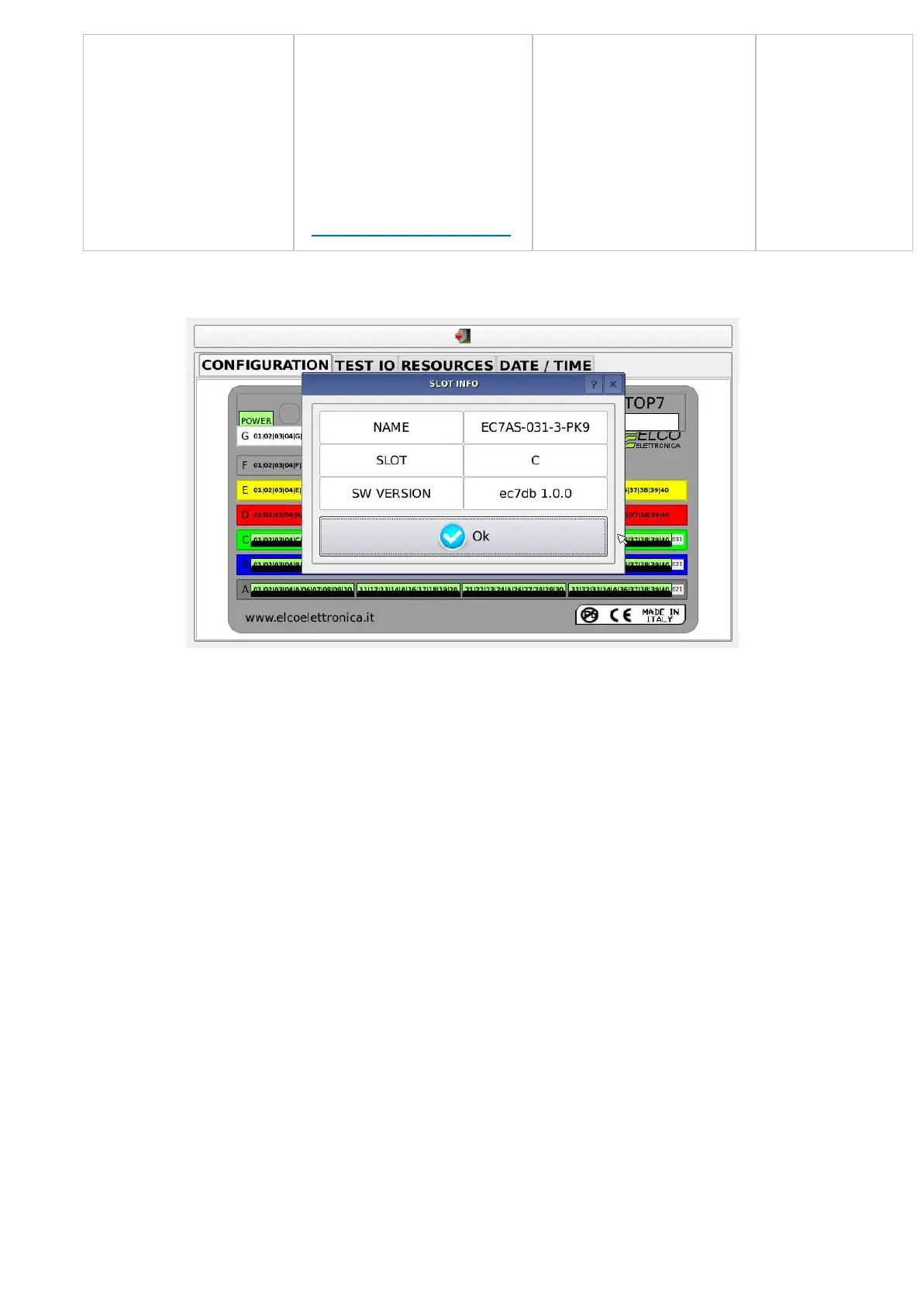

Information of each board contains:
● NAME: string identification of the board;
● SLOT: slot where the card is present;
● SW VERSION: firmware version of the board;
TEST IO
The environment allows you to test the operation of the inputs and outputs of the boards
on the device. It is divided into categories according to the resources available:
● DIG.IN. (Digital Inputs): allows the reading of the state of the digital inputs. The
status cell is colored green if the relevant input is active;
