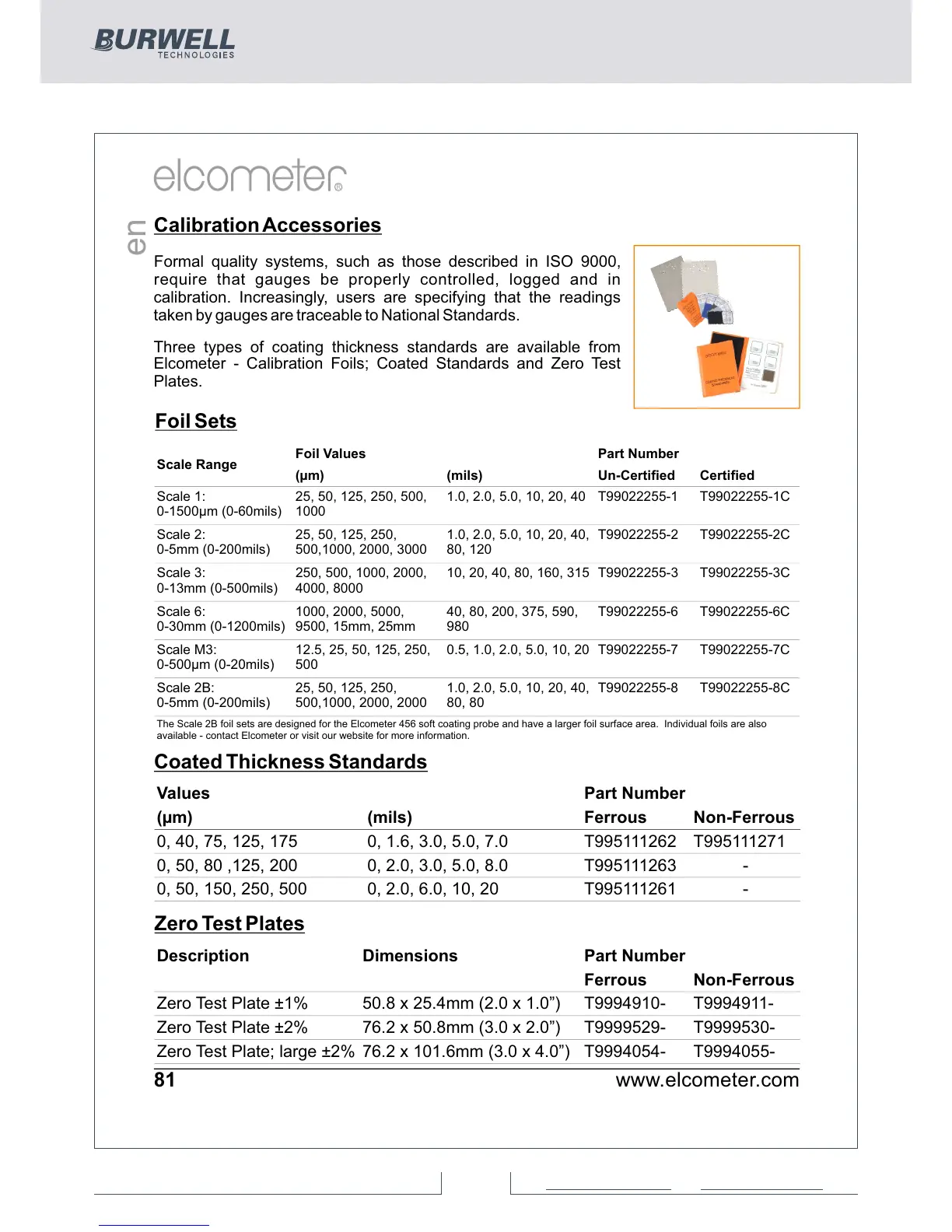

Elcometer 456 Model E - Calibration Accessories

Scale Range
Foil Values
Part Number
(µm) (mils) Un-Certified Certified
Scale 1:
0-1500µm (0-60mils)
25, 50, 125, 250, 500,
1000
1.0, 2.0, 5.0, 10, 20, 40 T99022255-1 T99022255-1C
Scale 2:
0-5mm (0-200mils)
25, 50, 125, 250,
500,1000, 2000, 3000
1.0, 2.0, 5.0, 10, 20, 40,
80, 120
T99022255-2 T99022255-2C
Scale 3:
0-13mm (0-500mils)
250, 500, 1000, 2000,
4000, 8000
10, 20, 40, 80, 160, 315 T99022255-3 T99022255-3C
Scale 6:
0-30mm (0-1200mils)
1000, 2000, 5000,
9500, 15mm, 25mm
40, 80, 200, 375, 590,
980
T99022255-6
T99022255-6C
Scale M3:
0-500µm (0-20mils)
12.5, 25, 50, 125, 250,
500
0.5, 1.0, 2.0, 5.0, 10, 20
T99022255-7
T99022255-7C
Scale 2B:
0-5mm (0-200mils)
25, 50, 125, 250,
500,1000, 2000, 2000
1.0, 2.0, 5.0, 10, 20, 40,
80, 80
T99022255-8 T99022255-8C
The Scale 2B foil sets are designed for the Elcometer 456 soft coating probe and have a larger foil surface area. Individual foils are also
available - contact Elcometer or visit our website for more information.
Foil Sets
Calibration Accessories
Formal quality systems, such as those described in ISO 9000,
require that gauges be properly controlled, logged and in
calibration. Increasingly, users are specifying that the readings
taken by gauges are traceable to National Standards.
Three types of coating thickness standards are available from
Elcometer - Calibration Foils; Coated Standards and Zero Test
Plates.
Values
Part Number
(µm)
(mils)
Ferrous
Non-Ferrous
0, 40, 75, 125, 175 0, 1.6, 3.0, 5.0, 7.0 T995111262 T995111271
0, 50, 80 ,125, 200
0, 2.0, 3.0, 5.0, 8.0
T995111263
-
0, 50, 150, 250, 500
0, 2.0, 6.0, 10, 20
T995111261
-
Coated Thickness Standards
Zero Test Plates
Description
Dimensions
Part Number
Ferrous
Non-Ferrous
Zero Test Plate ±1% 50.8 x 25.4mm (2.0 x 1.0”) T9994910- T9994911-
Zero Test Plate ±2%
76.2 x 50.8mm (3.0 x 2.0”)
T9999529-
T9999530-
Zero Test Plate; large ±2%
76.2 x 101.6mm (3.0 x 4.0”)
T9994054-
T9994055-
en
R
www.elcometer.com
81
456 Dry Film Thickness Gauge
