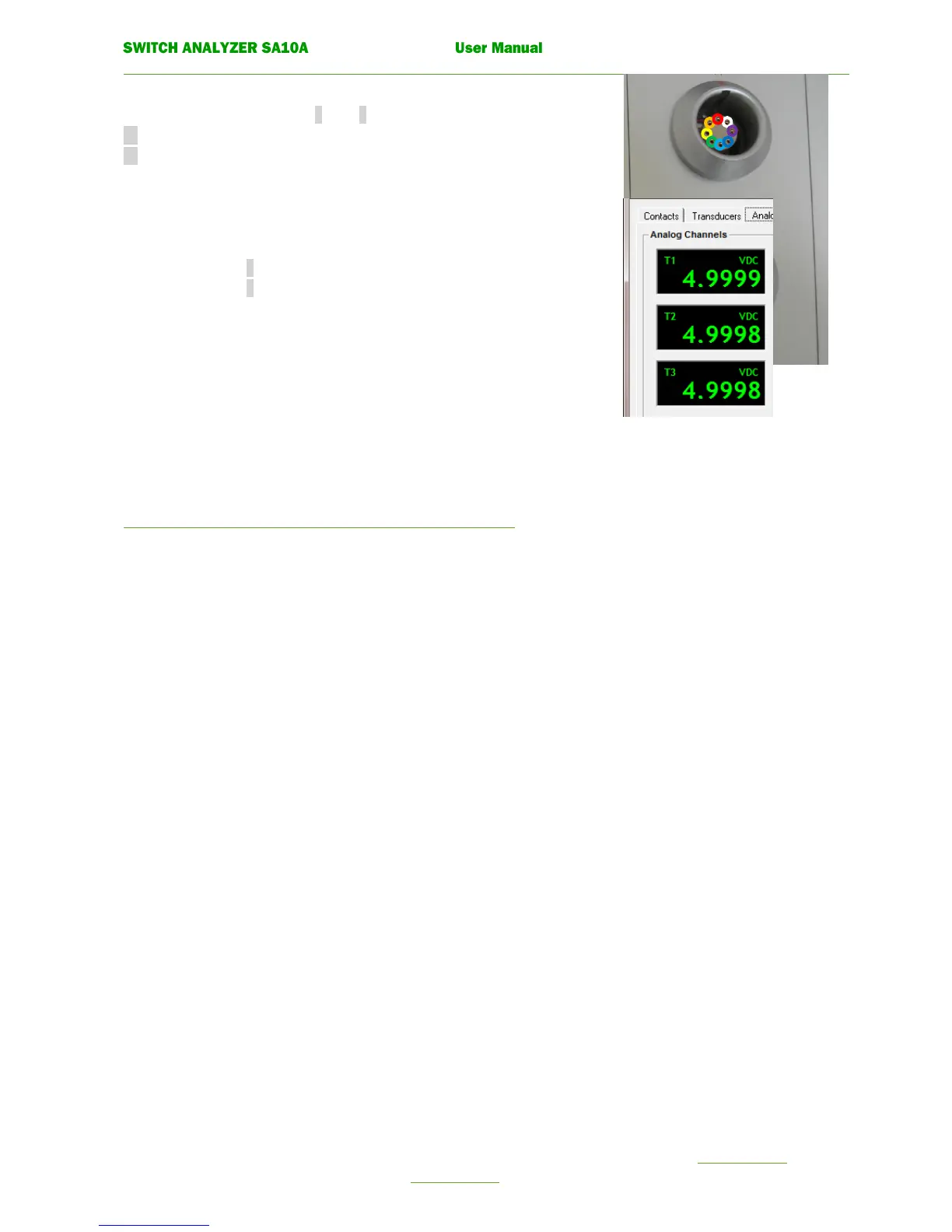

7.2.3 CHECK TRANSDUCER INPUTS T1, T2, T3.
Measure voltage between pin + 5 and - 6 is 5Volt
5 +5 VDC 5%
6 Ground
Connect power supply 0-5 V DC parallel to reference instrument.
+ To pin 7 Analogue measurement
- To pin 6 Ground
Verify in BTS11 that each input is within the specification.
Analog measurement: 0 – 5 V DC, accuracy 0,005V DC
Analog resolution: 12 bits. Resolution about 0.0014V DC / Bit
If not values are in range, recalibration is required. See section.
7.3.3 Calibration wizard for analogue transducer inputs T1, T2, T3.
