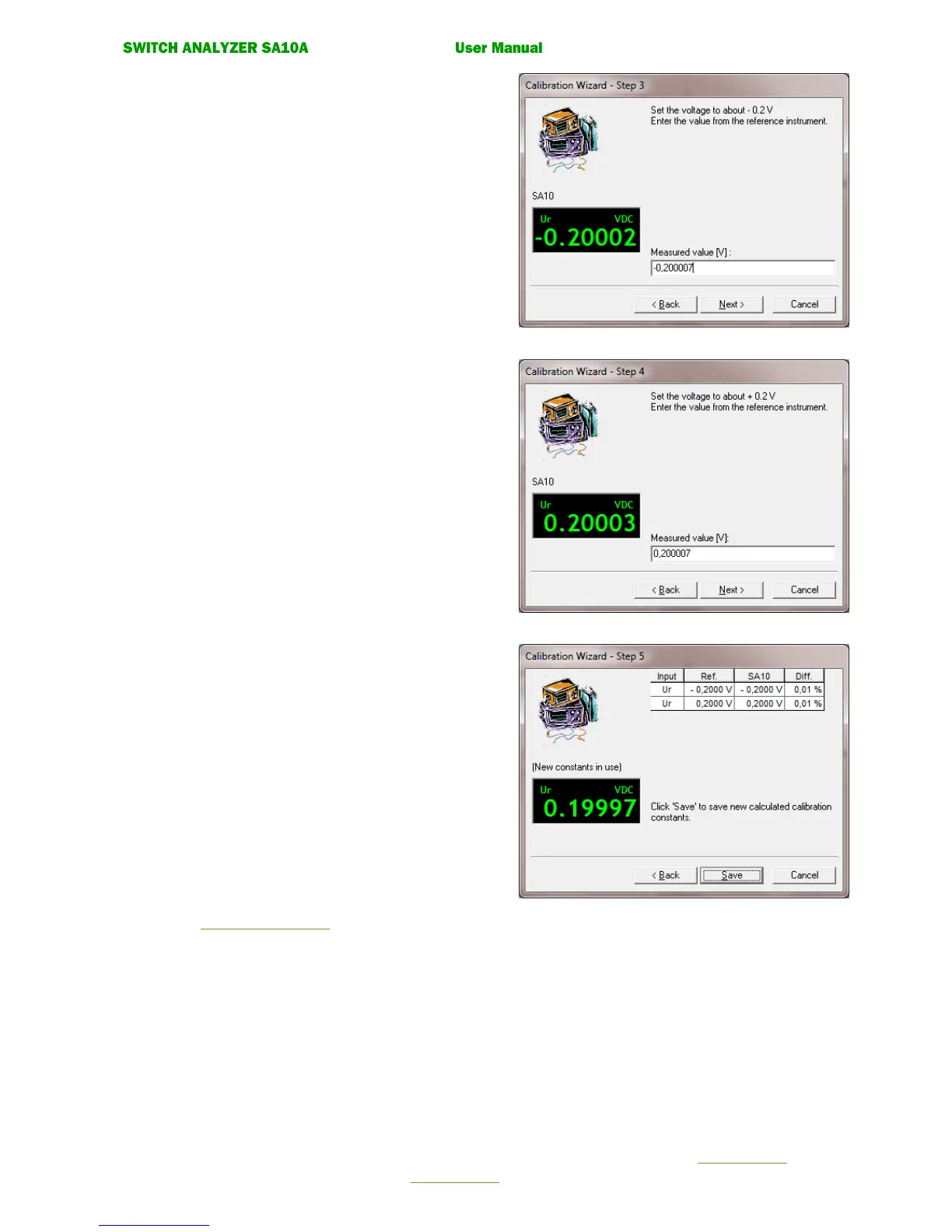

• Calibration wizard. Step 3.
Set the voltage source to about
-0.2 V.
Enter the value in Volt from the reference instrument.
Click the command button. Next.
• Calibration wizard. Step 4.
Set the voltage source to about
+0.2 V.
Enter the value in Volt from the reference instrument.
Click the command button. Next.
• Calibration wizard. Step 5.
New calibration constants are now calculated
Click button Save to save the new calculated calibration
constants.
Click button Cancel to cancel the guide without updating the
calibration constant.
• Calibration wizard. Step 6.
Enter password and calibration signature.
See 7.3.6 Enter Password.
• Calibration wizard. Step 7.
Check that the measured value compared to
the reference instrument is within the accuracy
for the input. If not Click Re-calibrate button.
If correct click Cancel button to exit Calibration Wizard.
