ELECRAFT KX2 - Internal Battery

6
Internal Battery

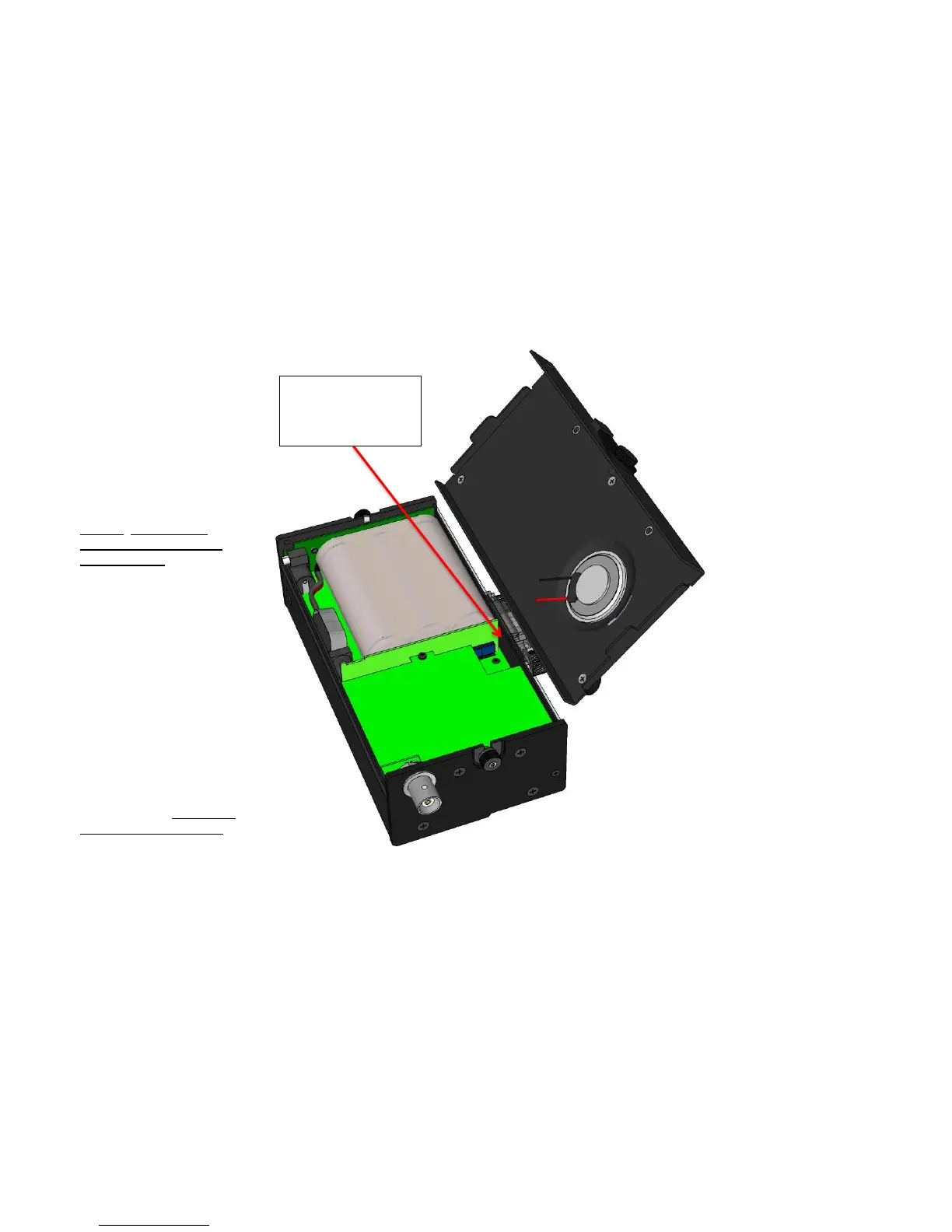

The KXBT2, shown here installed,
is an 11 V, 2.6 Ah li-ion battery
with protective circuitry.
Battery installation:
• Loosen the two thumb nuts at
the ends of the bottom cover.
• Rotate the cover open,
keeping speaker wires
captivated in the location
shown at right.
• Place the battery as shown and
plug it into the internal jack.
• Make sure battery wires are
tucked inside, beside the plug.
• Install the bottom cover.
• Tighten the two thumb nuts
firmly to keep the bottom
cover in place.
Battery removal:
• Open the bottom cover as
described above.
• Pull the battery plug out
slowly, using the provided
nylon pull-loop. Do not pull
on the battery pack wires.
• Replace the bottom cover and
tighten the thumb nuts firmly.
Note: Speaker wires are
routed between the small
band-pass filter board
and the chassis.
