13.1.5 Display Board

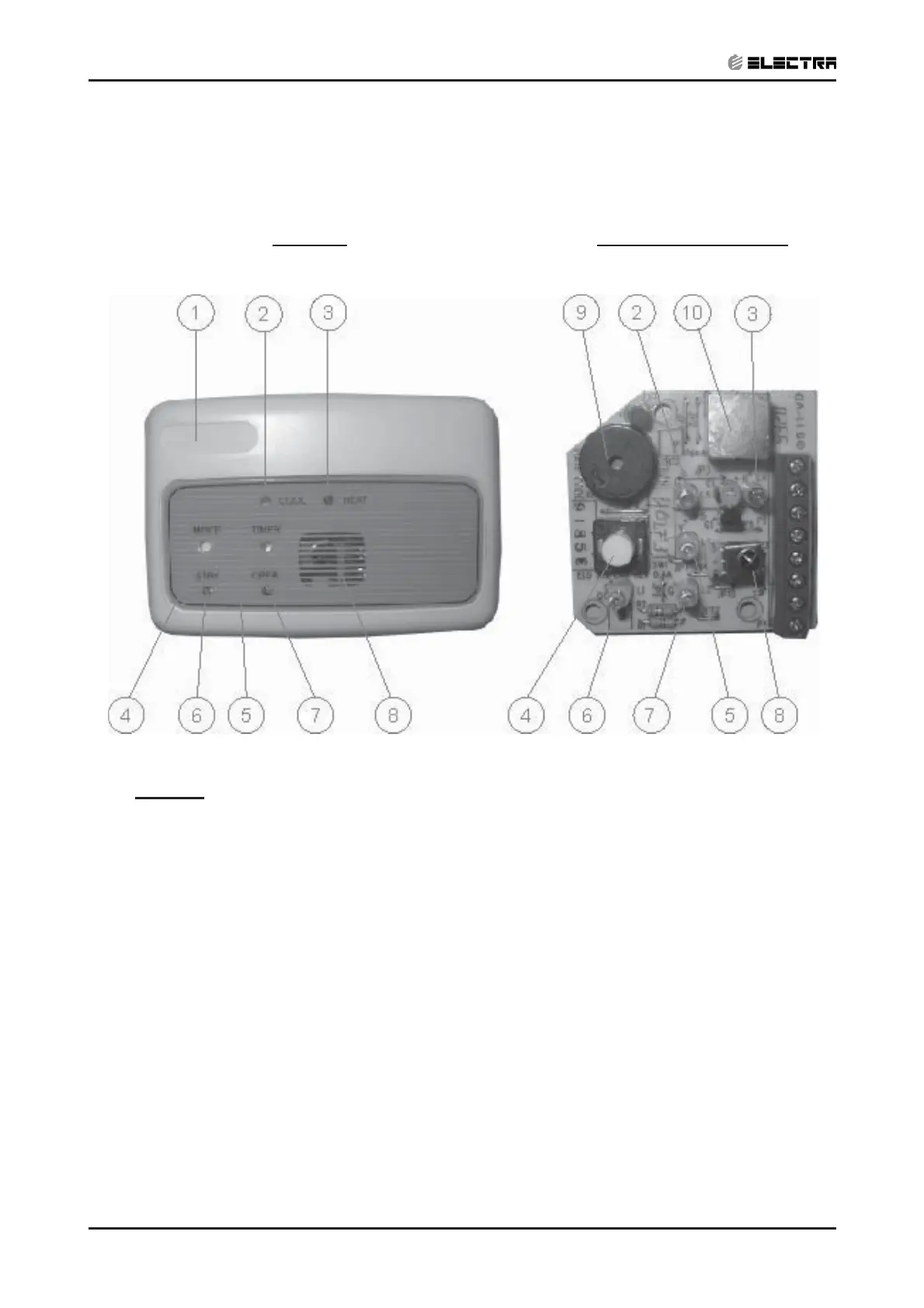

Display Display Board PCB
Legend
1. Name Plate
2. Cooling LED
3. Heating LED
4. Push Button (Mode)
5. Timer LED
6. STBY LED
7. Operation LED
8. IR Receiver
9. Buzzer
10. Display Port Connection
